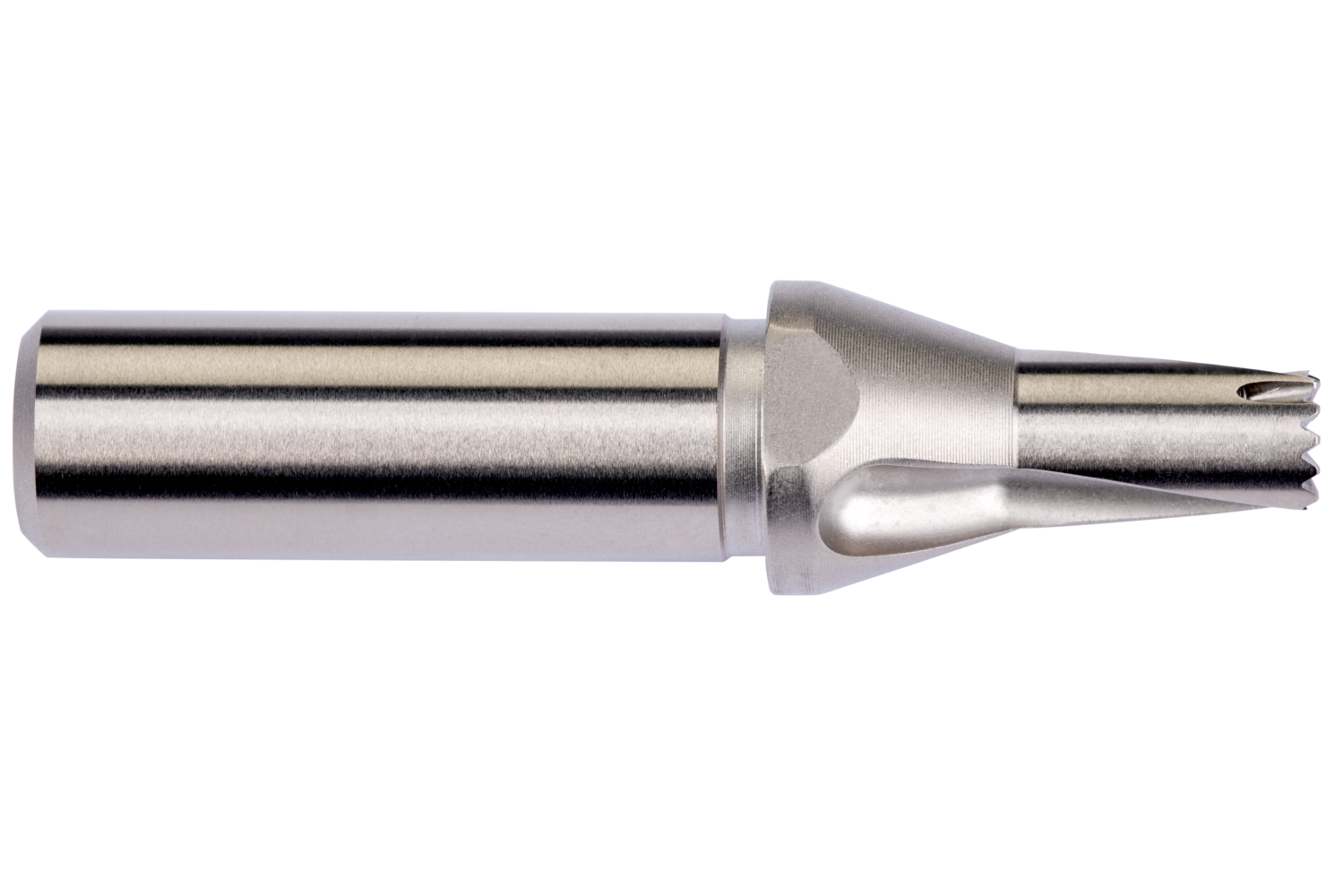

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 39/64" with an overall length of 97.3mm and flute length of 32.3mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5748 up to 0.6102"
- Product Name ISO: H85139/64
- Ordering Code ANSI: H85139/64
- EDP Number: 7833332
- Coating: Nickel Plated
- Material Code (BMC): HSS

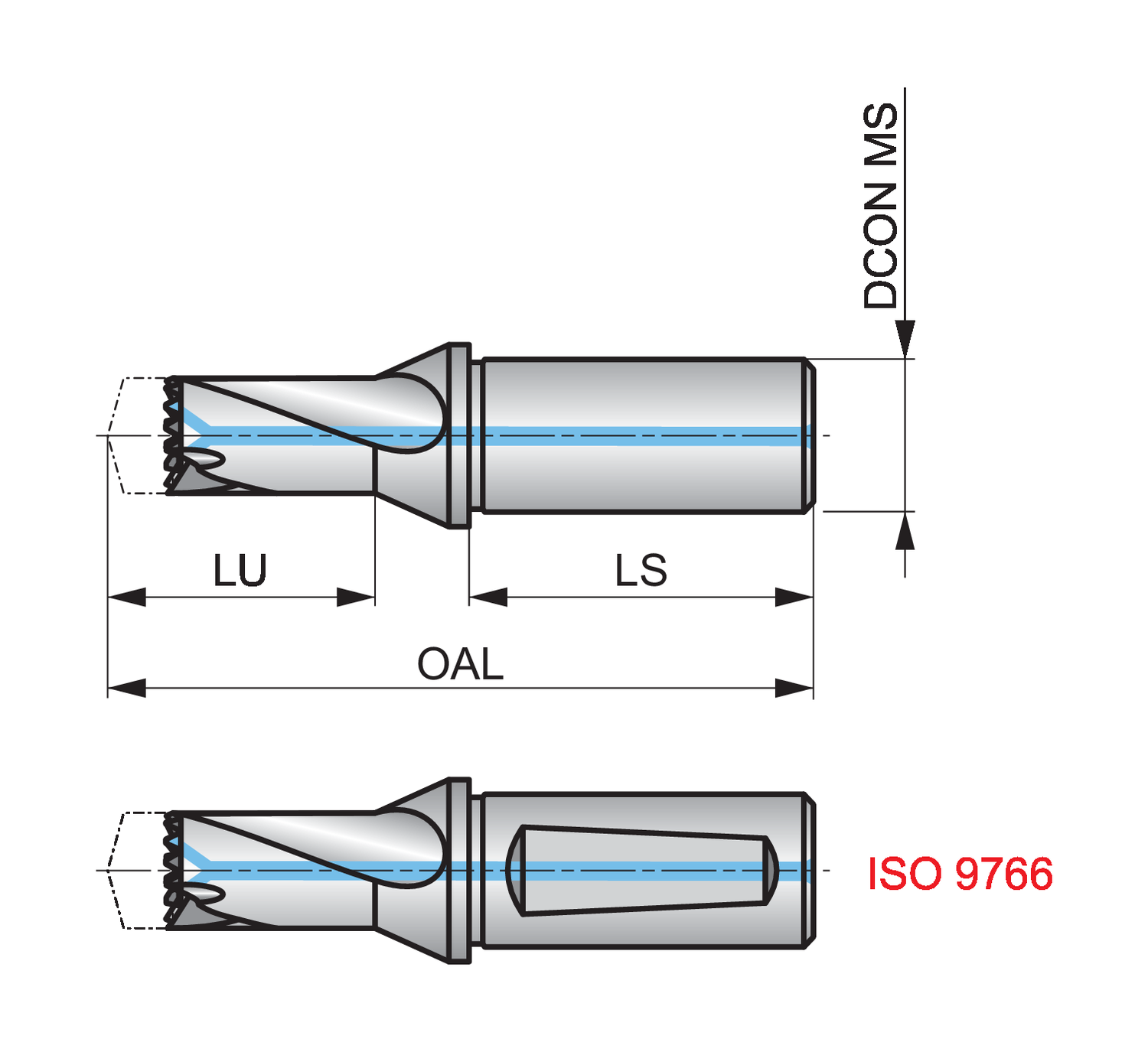

| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 19.05 |
| Overall Length (Mm.) | 97.3 |
| Usable Length (Mm.) | 32.3 |
| Shank Length (Mm.) | 50.8 |
| Connection Diameter (In.) | 0.75 |
| Overall Length (In.) | 3.8307 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
