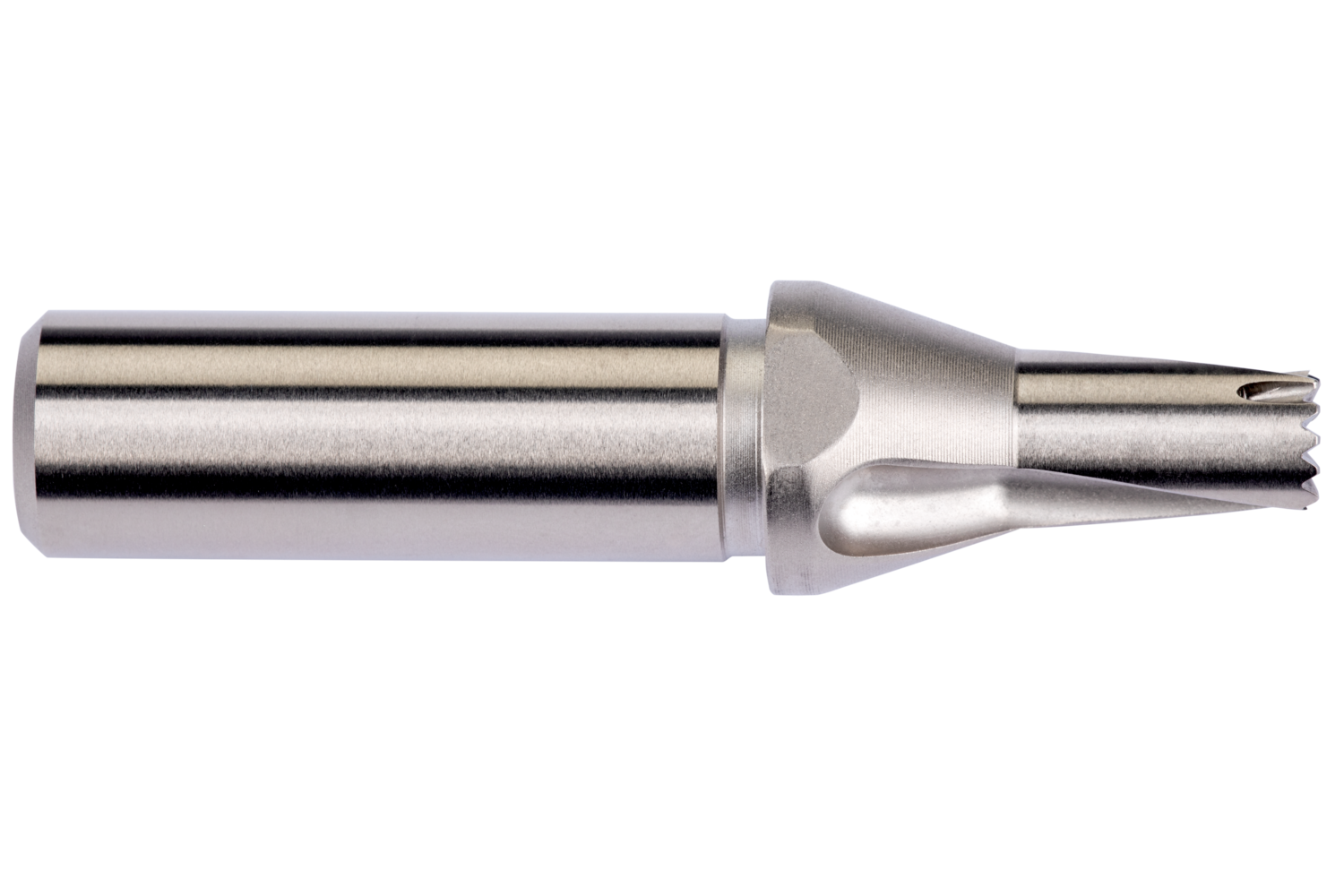

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 41/64" with an overall length of 99.9mm and flute length of 34.9mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.6142 up to 0.6496"
- Product Name ISO: H85141/64
- Ordering Code ANSI: H85141/64
- EDP Number: 7833333
- Coating: Nickel Plated
- Material Code (BMC): HSS

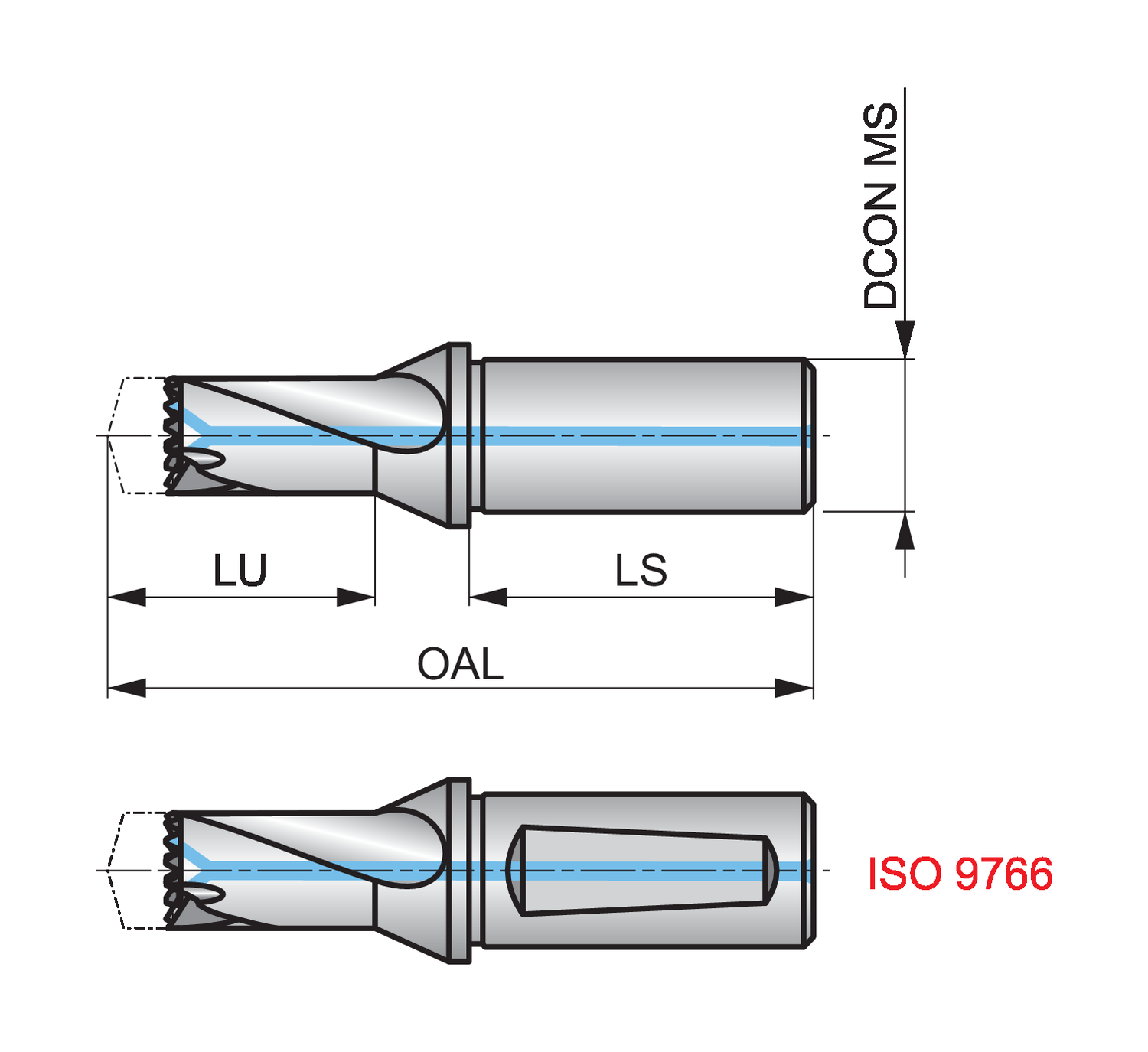

| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 19.05 |
| Overall Length (Mm.) | 99.9 |
| Usable Length (Mm.) | 34.9 |
| Shank Length (Mm.) | 50.8 |
| Connection Diameter (In.) | 0.75 |
| Overall Length (In.) | 3.9331 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
