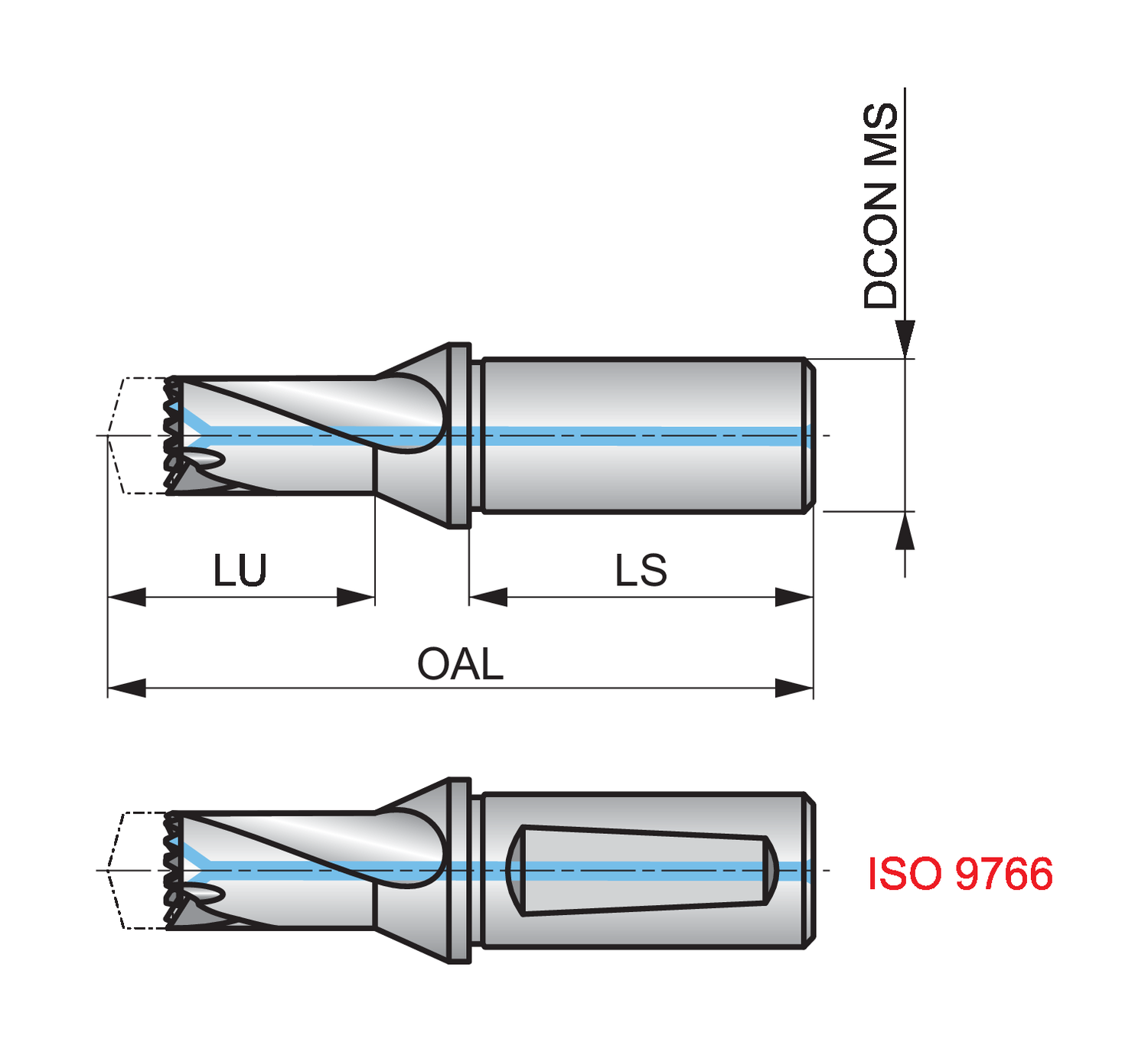

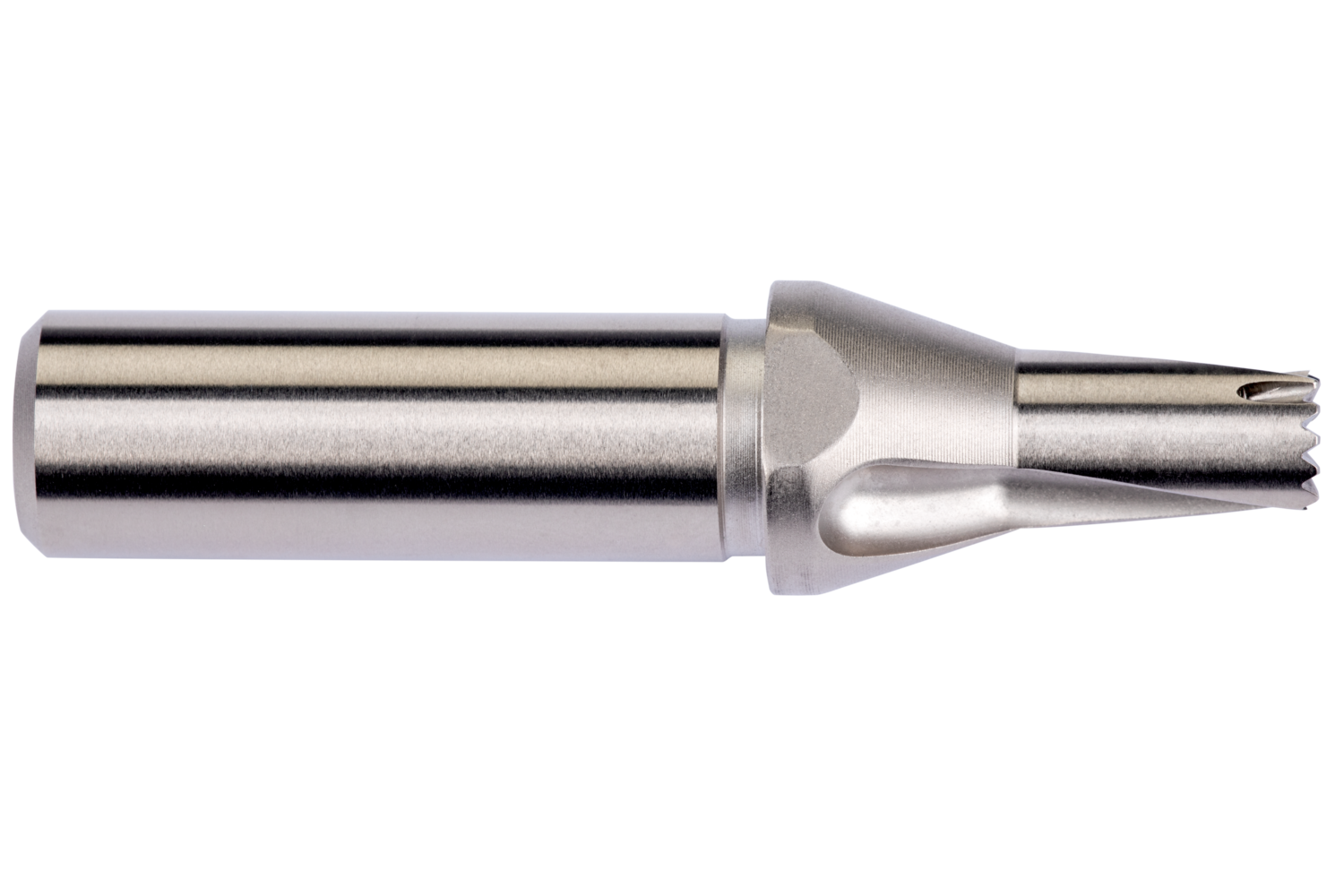

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 49/64" with an overall length of 111.4mm and flute length of 40.4mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.7323 up to 0.7677"
- Product Name ISO: H85149/64
- Ordering Code ANSI: H85149/64
- EDP Number: 7833345
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 25.4 |
| Overall Length (Mm.) | 111.4 |
| Usable Length (Mm.) | 40.4 |
| Shank Length (Mm.) | 57.15 |
| Connection Diameter (In.) | 1 |
| Overall Length (In.) | 4.3858 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
