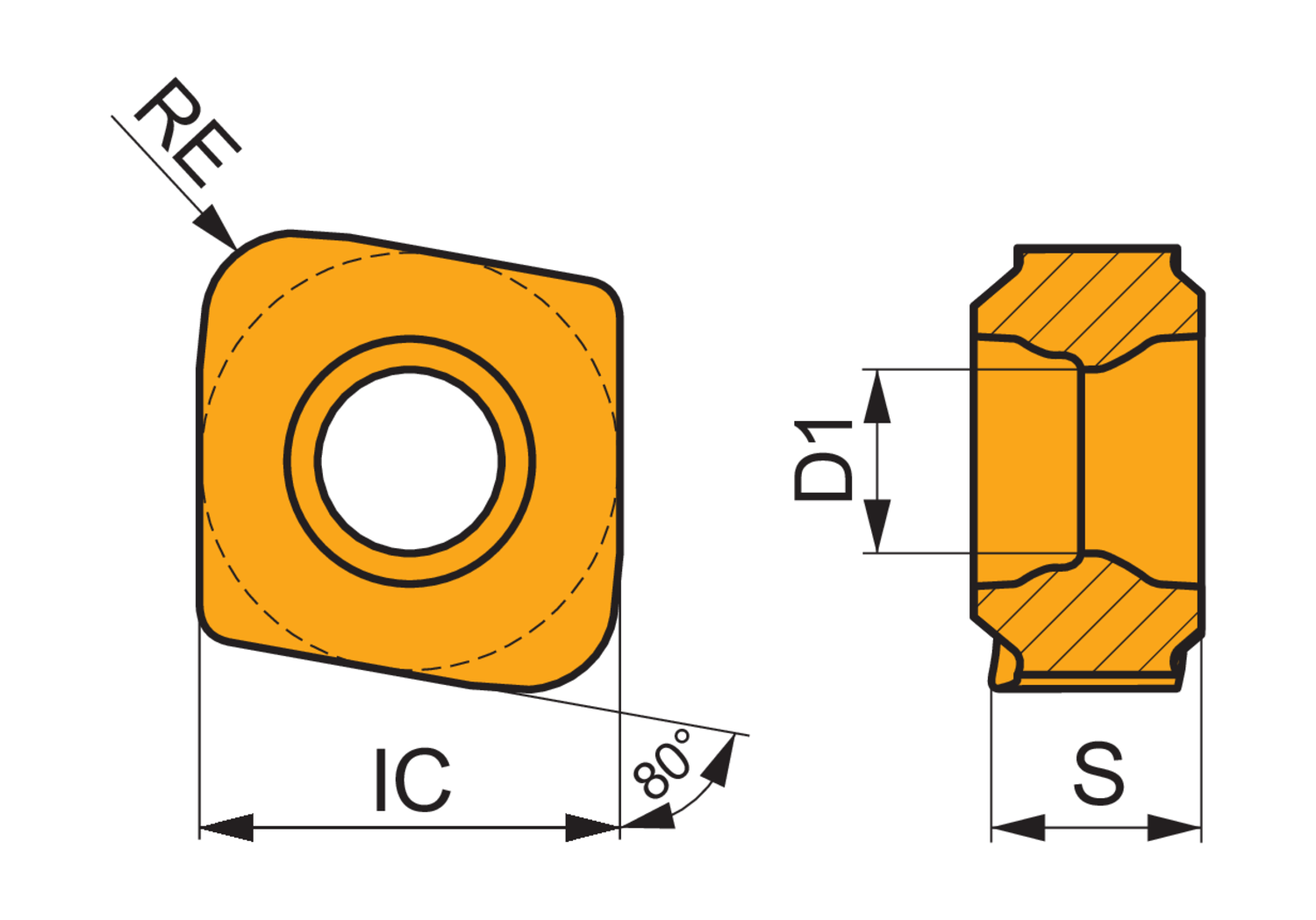

Double-sided milling insert CNHX 0502, 80° rhomboid and wiper design for a maximum depth of cut of .0394", with .0197" corner radius, an indexing accuracy according to ISO-tolerance class-H and WM geometry with rounded cutting edges, M4310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K05-K15 and H05-H15 for machining of cast-iron and hardened material with copy face mills SCN05C
- Product Name ISO: CNHX 050205ER-WM:M4310
- Ordering Code ANSI: CNHX 050205ER-WM:M4310
- EDP Number: 7639195
- Coating: M4310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1 |
| Corner Radius (Mm.) | 0.5 |
| Fixing Hole Diameter (Mm.) | 2.1 |
| Inscribing Circle Dia. (Mm.) | 4.8 |
| Insert Thickness (Mm.) | 2.4 |
| Max Depth of Cut (In.) | 0.039 |
| Coating | M4310 |
