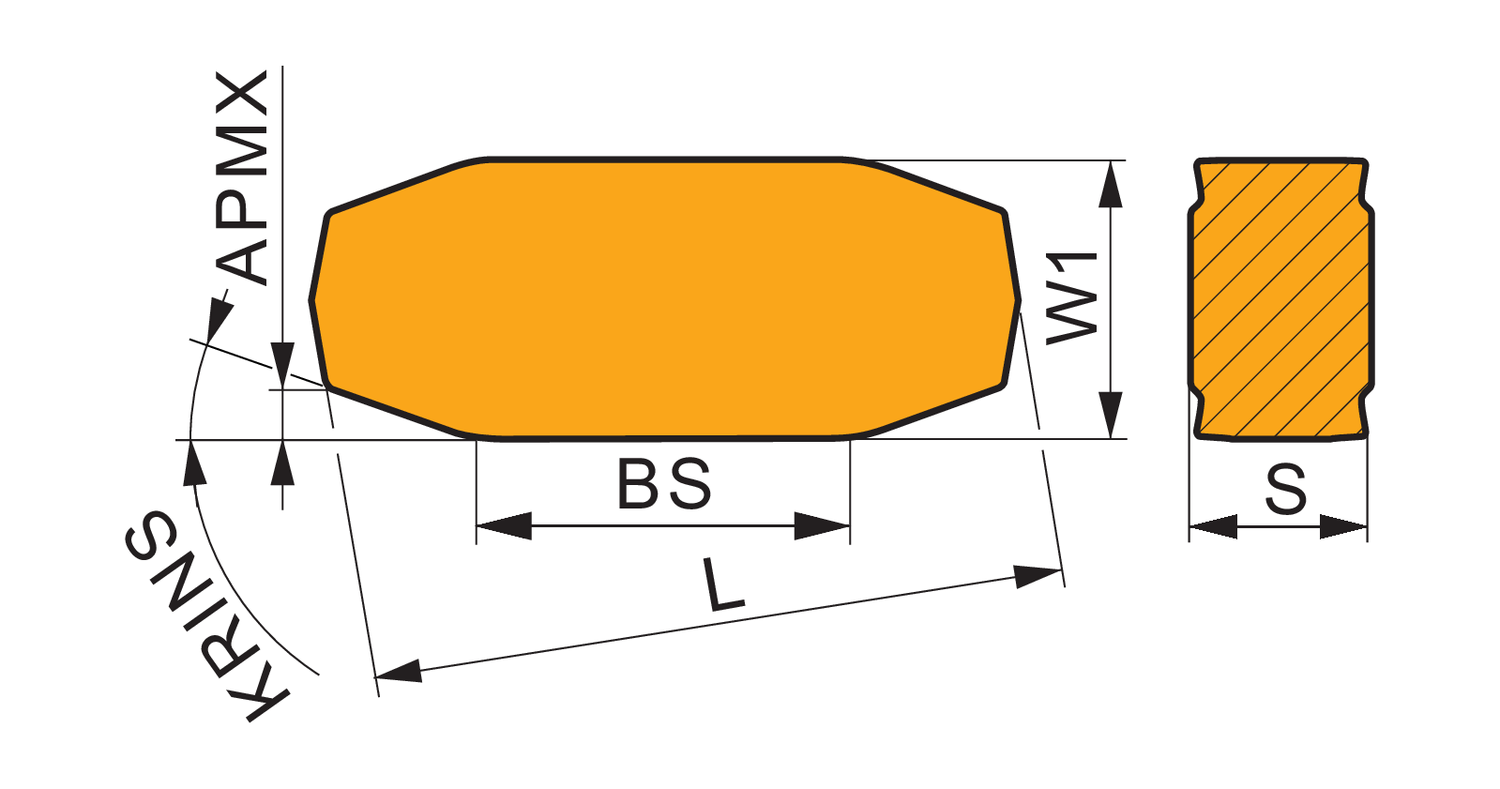

Double-sided negative barpeeling insert, rectangular with a length of 36.5mm, 12mm thick for 2mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker MM with S02 cutting edge preperation, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for medium strength steels
- Product Name ISO: LNGF 361220-MM-S02:T9315
- Ordering Code ANSI: LNGF 361220-MM-S02:T9315
- EDP Number: 7347214
- Coating: T9315
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Insert Thickness (Mm.) | 12 |
| Insert Width (Mm.) | 18 |
| Max Depth of Cut (In.) | 0.079 |
| Coating | T9315 |
