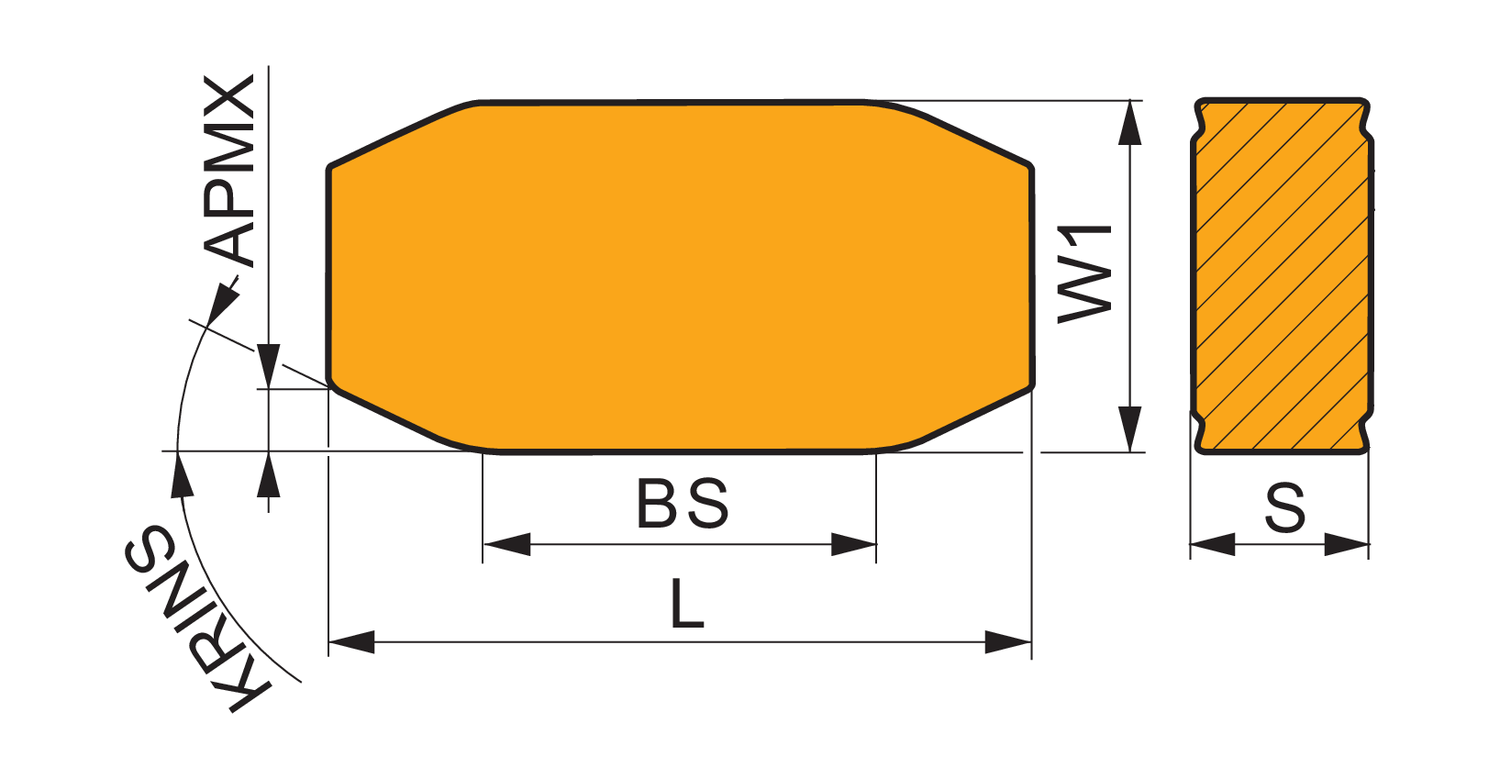

Double-sided negative barpeeling insert, rectangular with a length of 40mm, 9.6mm thick for 3.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PM with S01 cutting edge preperation, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for high strength steels
- Product Name ISO: LNGF 401035-PM-S01:T9226
- Ordering Code ANSI: LNGF 401035-PM-S01:T9226
- EDP Number: 6931826
- Coating: T9226
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.5 |
| Insert Thickness (Mm.) | 10.15 |
| Insert Width (Mm.) | 20 |
| Max Depth of Cut (In.) | 0.138 |
| Coating | T9226 |
