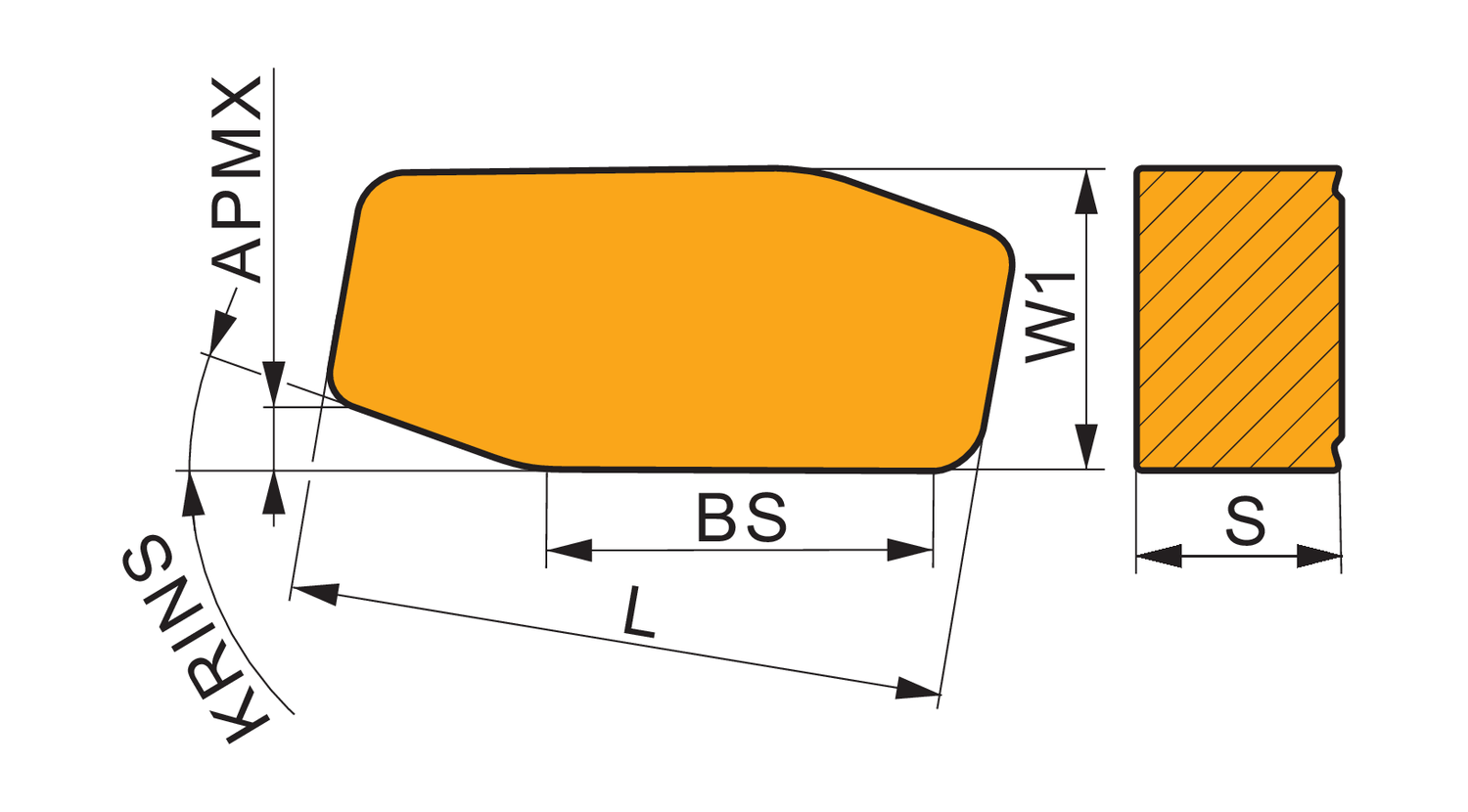

Double-sided negative barpeeling insert, rectangular with a length of 38.25mm, 12mm thick for 4mm depth of cut,, chip-breaker PM, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for steels
- Product Name ISO: LNXR 381240-PM:T9415
- Ordering Code ANSI: LNXR 381240-PM:T9415
- EDP Number: 8367026
- Coating: T9415
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |
Insert Thickness (Mm.) | 12 |
Insert Width (Mm.) | 18 |
Coating | T9415 |
