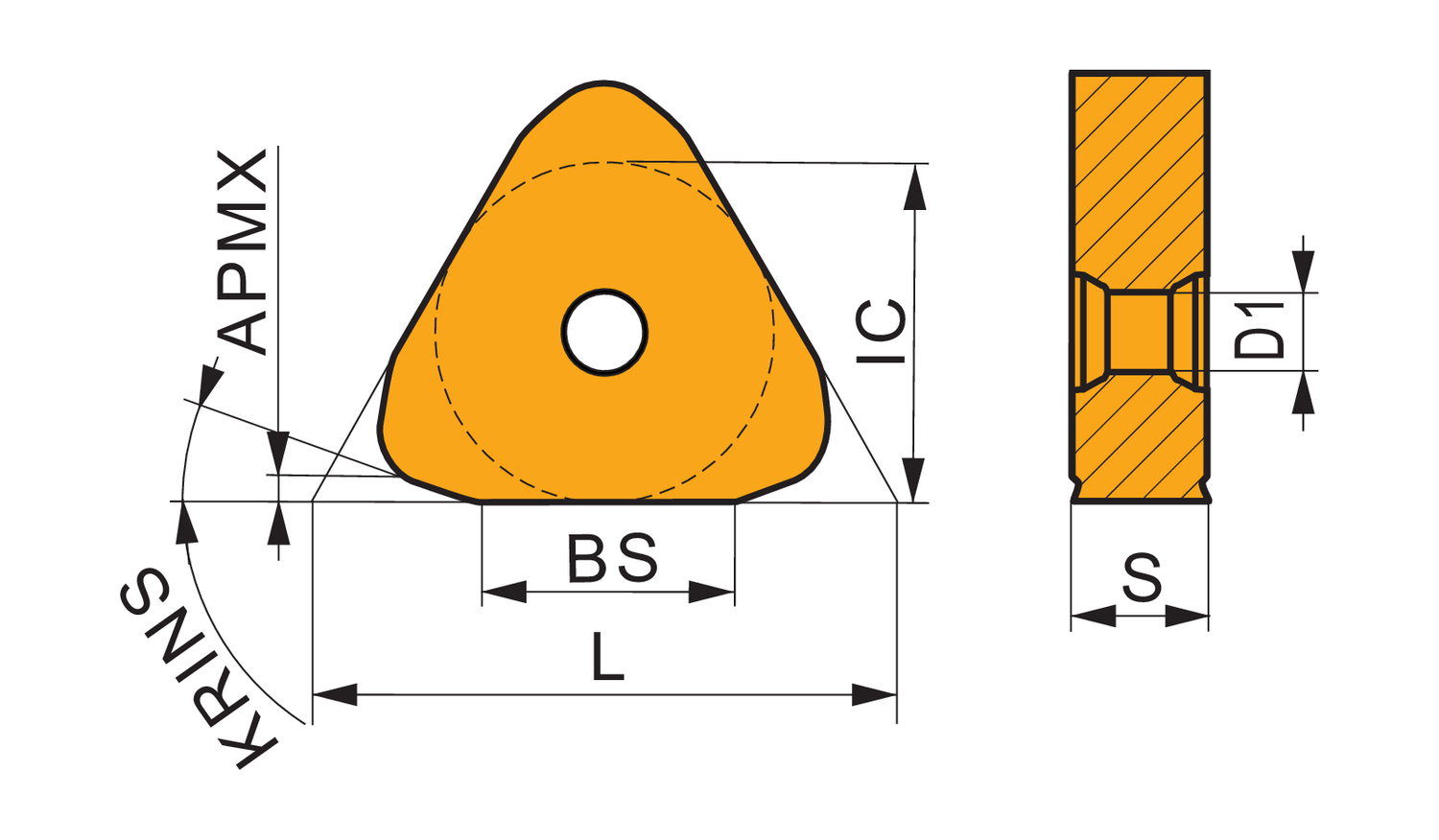

Picture of DS Neg Barpeeling Insert, Triangular with ICD of 28.6mm, 10mm Thick for 2.5mm Depth of Cut, Picture 2

Picture of DS Neg Barpeeling Insert, Triangular with ICD of 28.6mm, 10mm Thick for 2.5mm Depth of Cut

DS Neg Barpeeling Insert, Triangular with ICD of 28.6mm, 10mm Thick for 2.5mm Depth of Cut

Bar Peeling Insert (EDP Number: 6931834)

SKU	6931834
MPN	6931834
Weight	0.09 lb
Width	4.24 inch
Length	3.51 inch
Height	2.88 inch

$61.48 excl tax

excl. VAT plus shipping

Order within 21 hrs 39 mins and this product can SHIP ON Saturday, July 05!

Add to cart

Add to List

Compare

Questions?

Email a friend

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 10mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S01 cutting edge preperation, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for high strength steels and stainless-steels

Product Name ISO: TNGJ 281025-PF-S01:T9226
Ordering Code ANSI: TNGJ 281025-PF-S01:T9226
EDP Number: 6931834
Coating: T9226
Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

Quick Ship Items	No, but I will Ship Soon
Product Measurement Standard	Metric
Depth of Cut Maximum (Mm.)	2.5
Fixing Hole Diameter (Mm.)	7
Inscribing Circle Dia. (Mm.)	28.6
Insert Thickness (Mm.)	10
Max Depth of Cut (In.)	0.098
Coating	T9226
