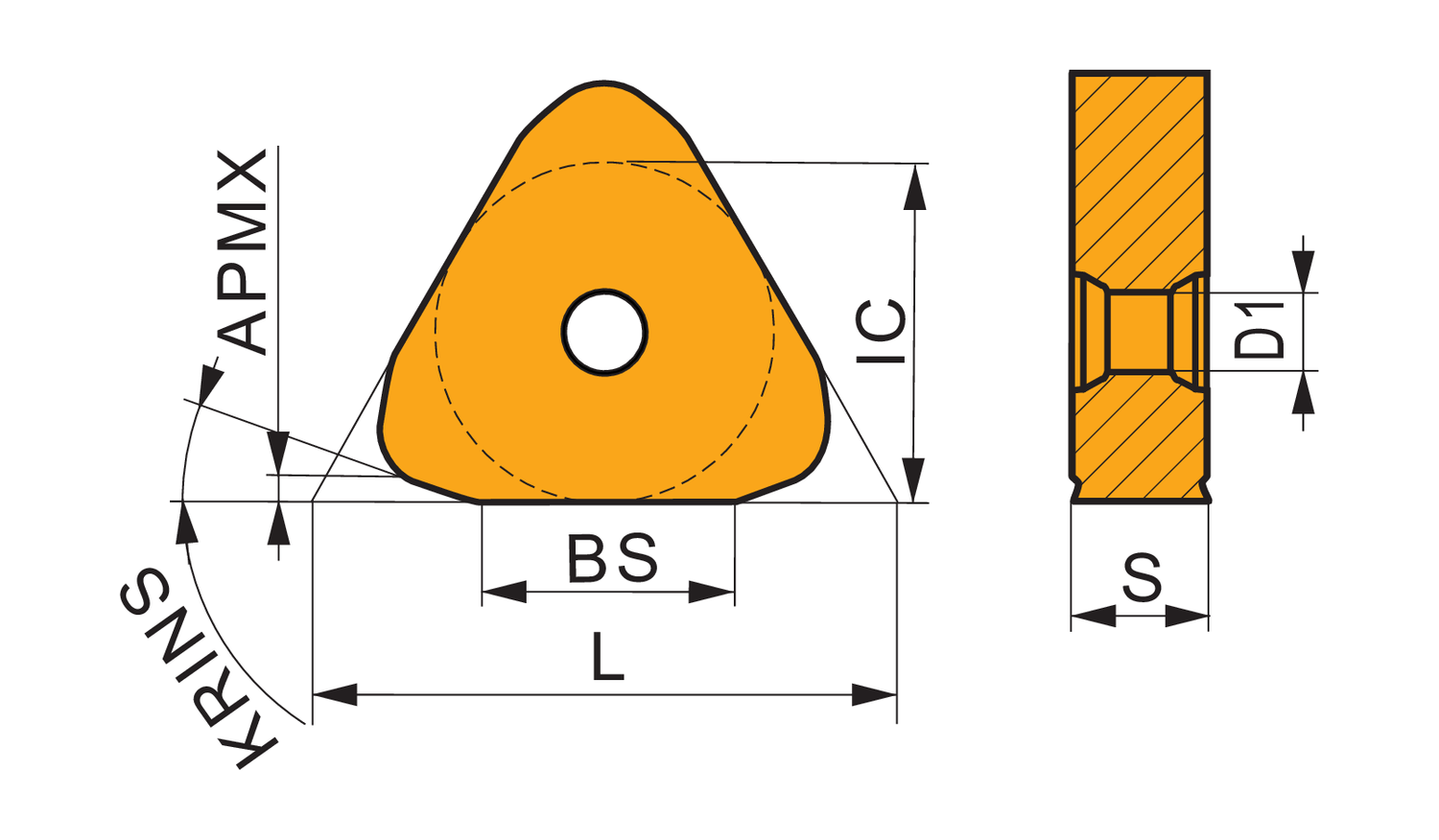

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 10mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S02 cutting edge preperation, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for medium strength stainless-steels
- Product Name ISO: TNGJ 281025-PF-S02:T7325
- Ordering Code ANSI: TNGJ 281025-PF-S02:T7325
- EDP Number: 7347235
- Coating: T7325
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 7 |
| Inscribing Circle Dia. (Mm.) | 28.6 |
| Insert Thickness (Mm.) | 10 |
| Max Depth of Cut (In.) | 0.098 |
| Coating | T7325 |
