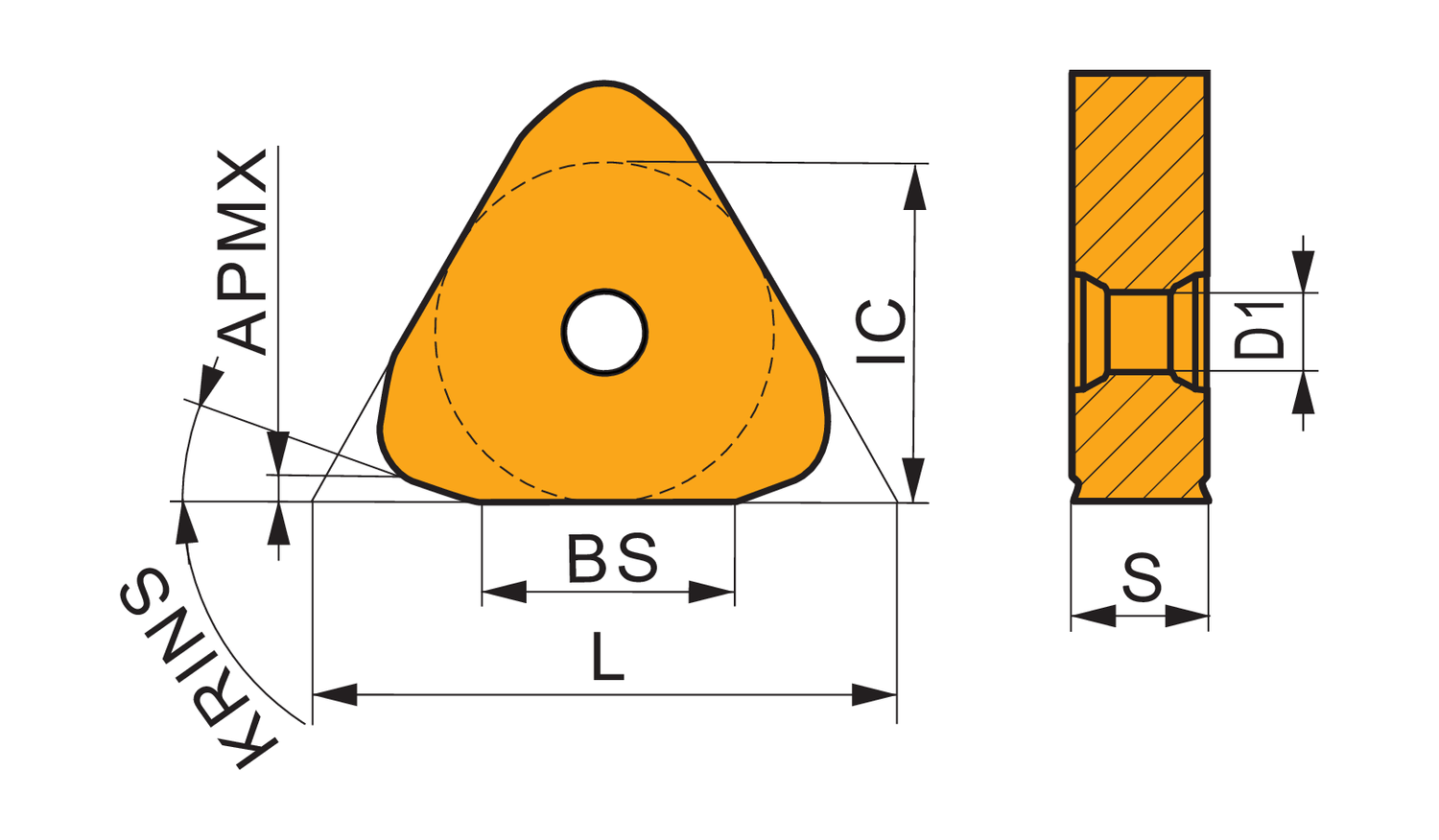

Double-sided negative barpeeling insert, triangular with inscribed circle diameter of 28.6mm, 9.6mm thick for 2.5mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker PF with S01 cutting edge preperation, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for high strength steels

• Product Name ISO: TNGJ 281025-PF-S01:T9415
• Ordering Code ANSI: TNGJ 281025-PF-S01:T9415
• EDP Number: 8367027
• Coating: T9415
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
