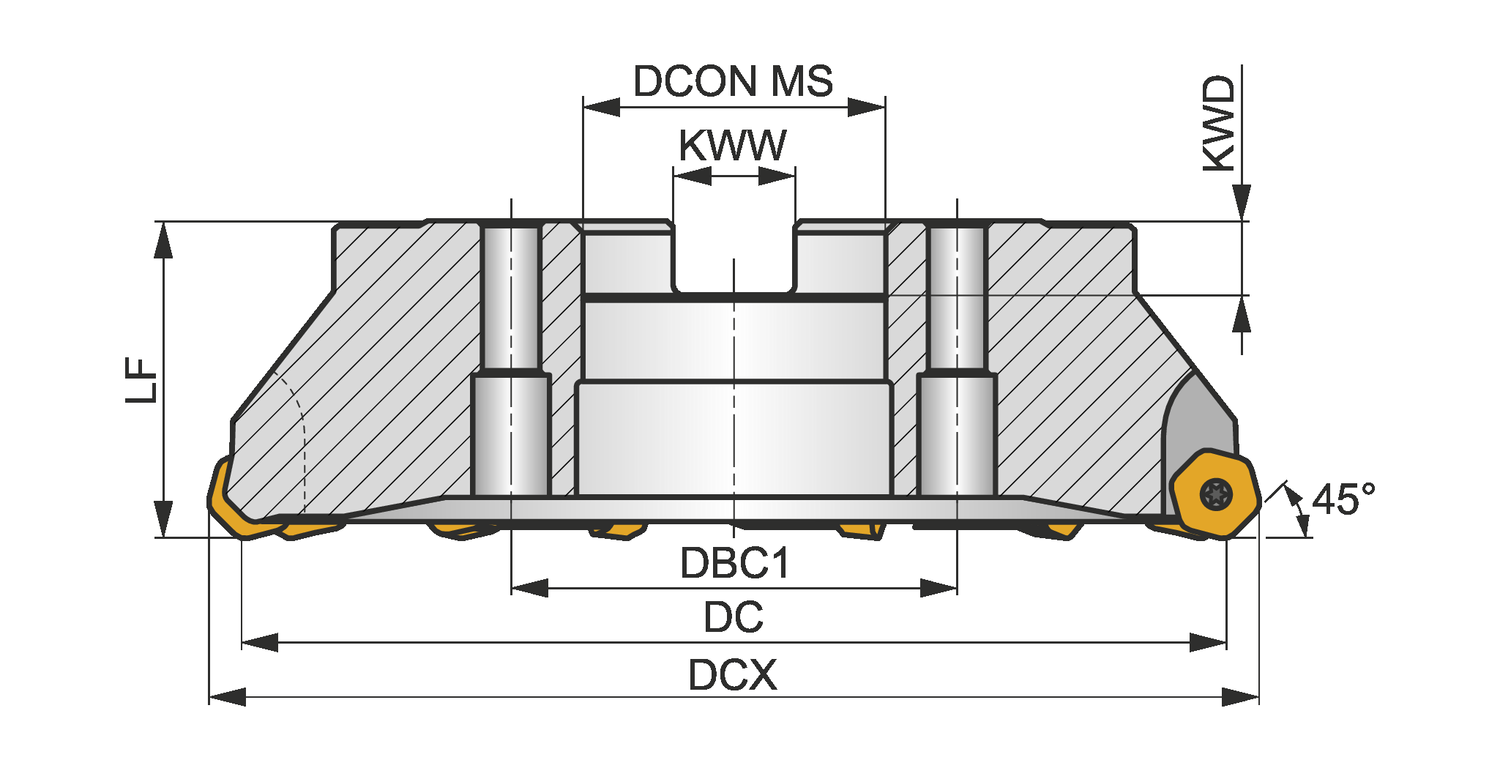

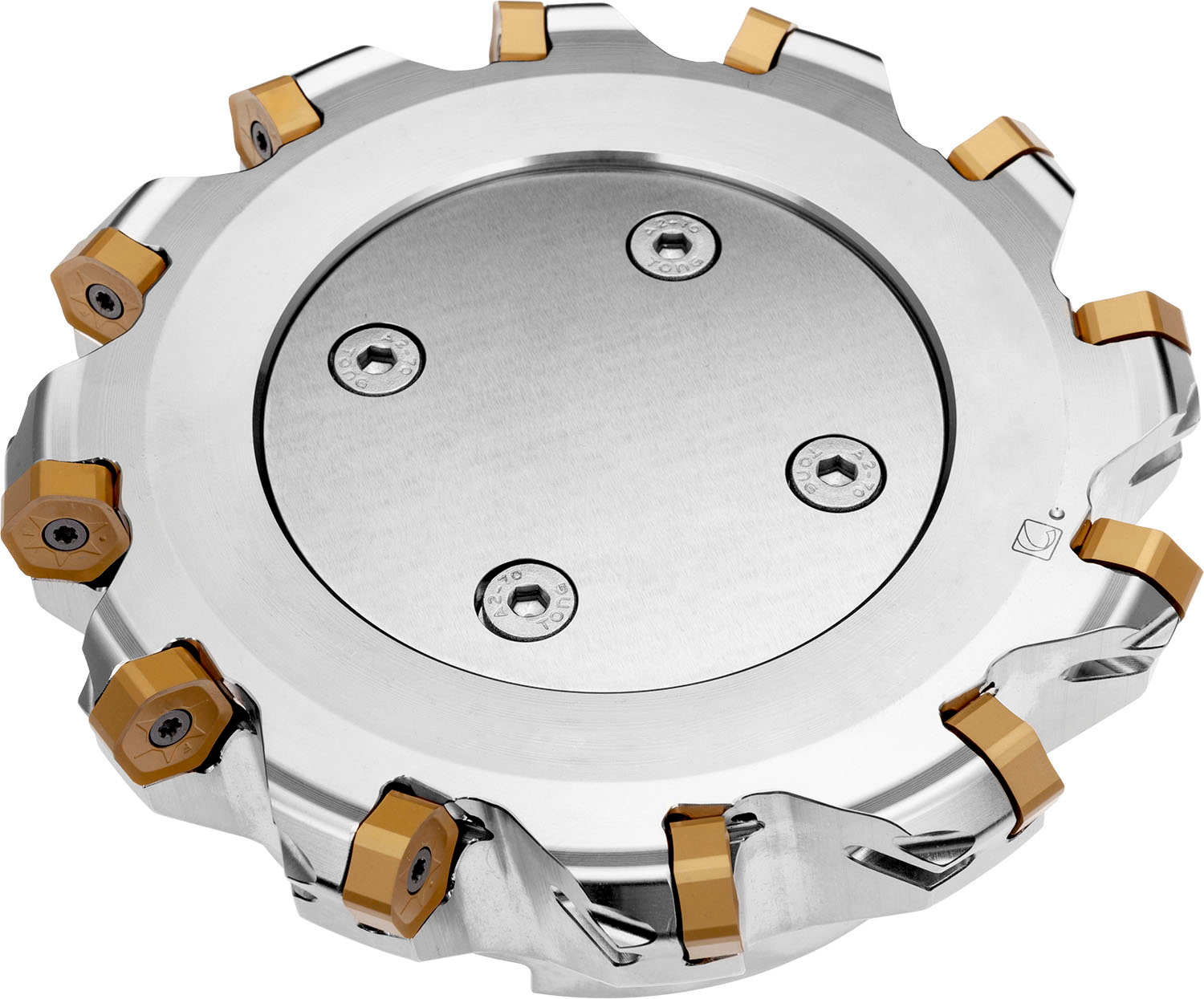

Face mill with double negative geometry which utilises 16 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 12.000 to maximum 12.461'' with 45° approach angle and 2.500'' connection bore according to DIN 8030-C, 3.150'' protrusion length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .197''

• Product Name ISO: 1200C16R-IS45HN09CF
• Ordering Code ANSI: 1200C16R-IS45HN09CF
• EDP Number: 6790729
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
