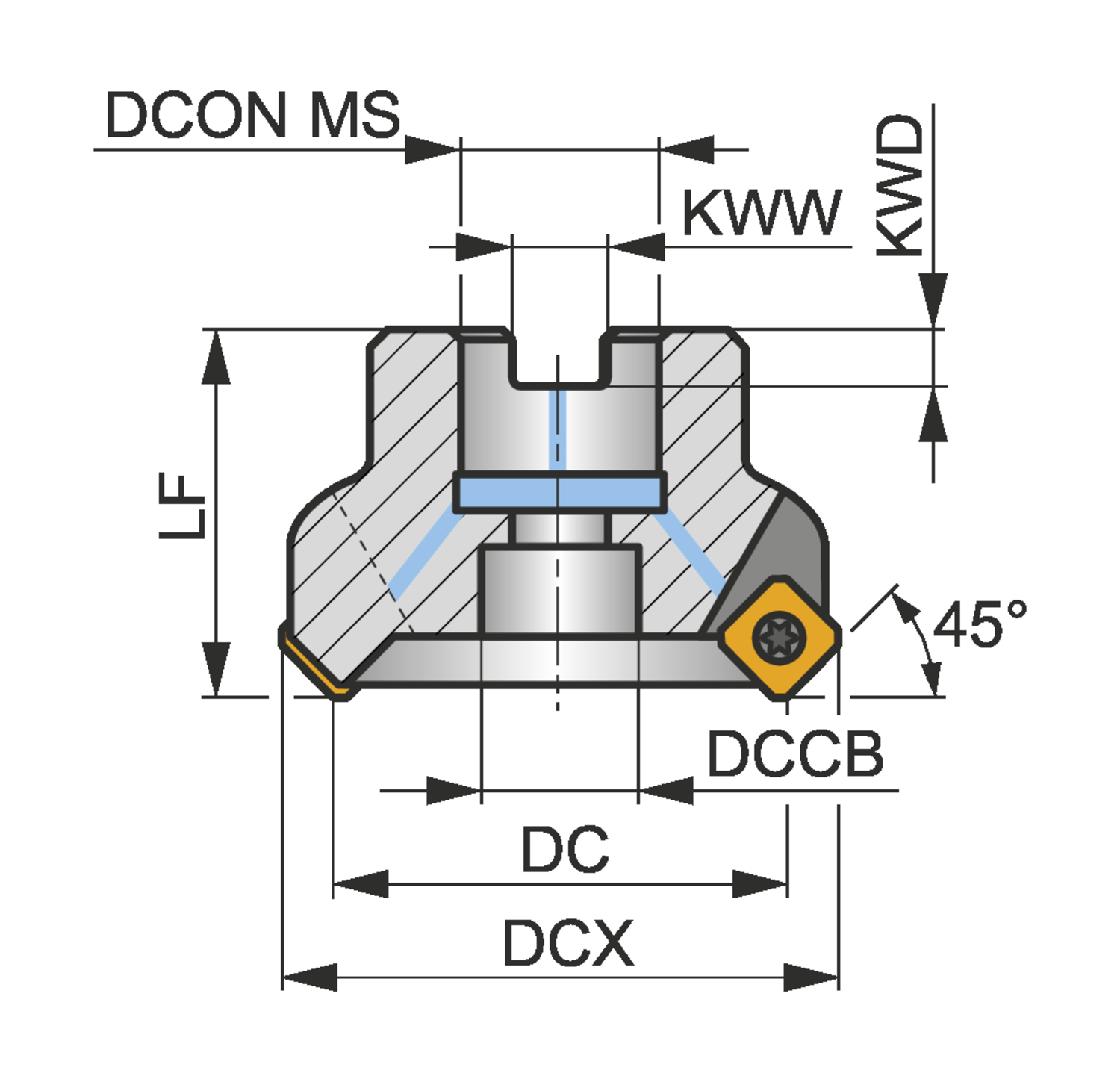

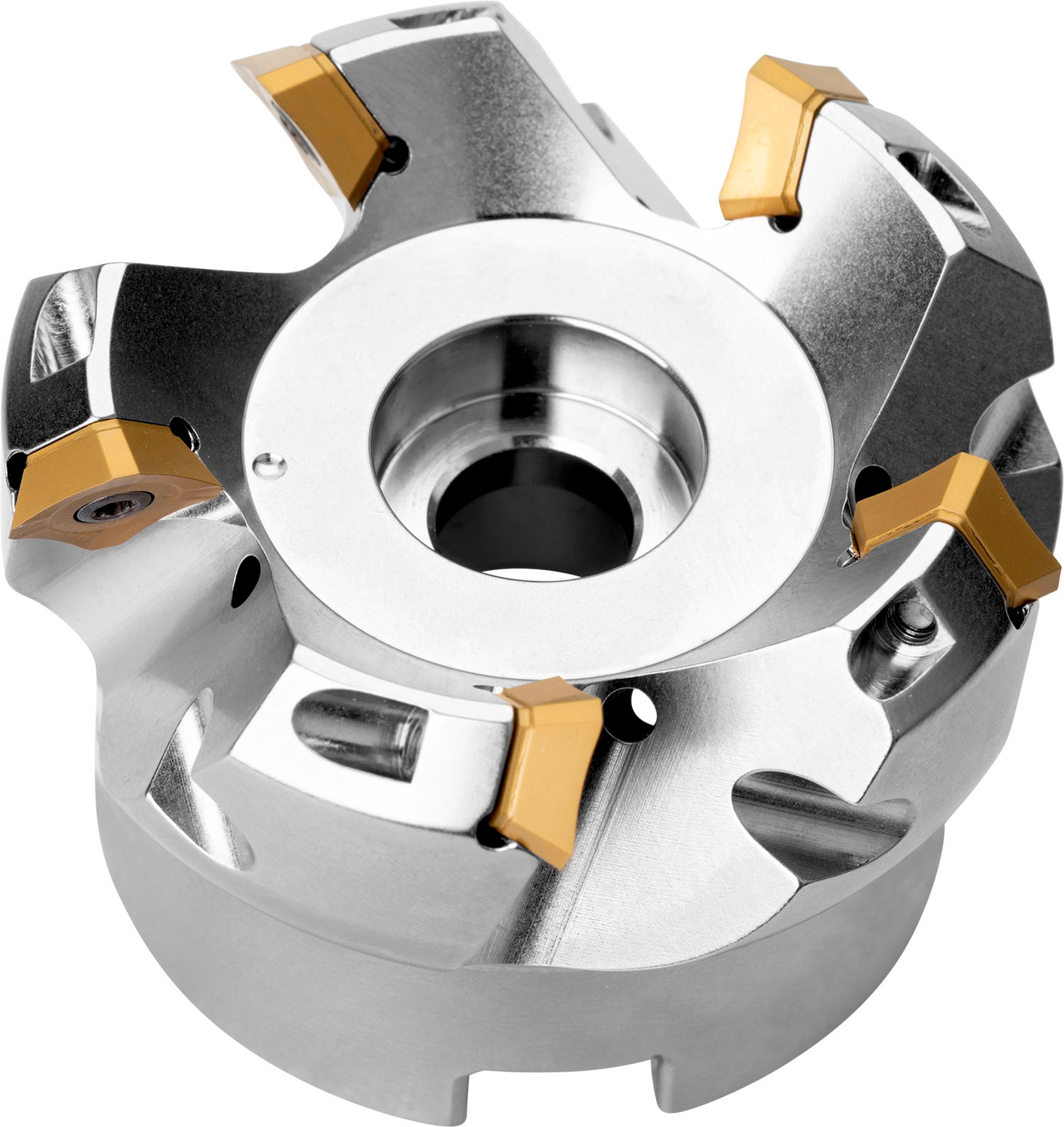

Face mill with positve/negative geometry which utilises 6 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 2.500 to maximum 2.878'' with 45° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .177''
- Product Name ISO: 250A06R-IS45SE09F-C
- Ordering Code ANSI: 250A06R-IS45SE09F-C
- EDP Number: 6789718
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 63.5 |
| Cutting Diameter (In.) | 2.5 |
| Connection Diameter (Mm.) | 19.1 |
| Connection Diameter (In.) | 0.75 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
