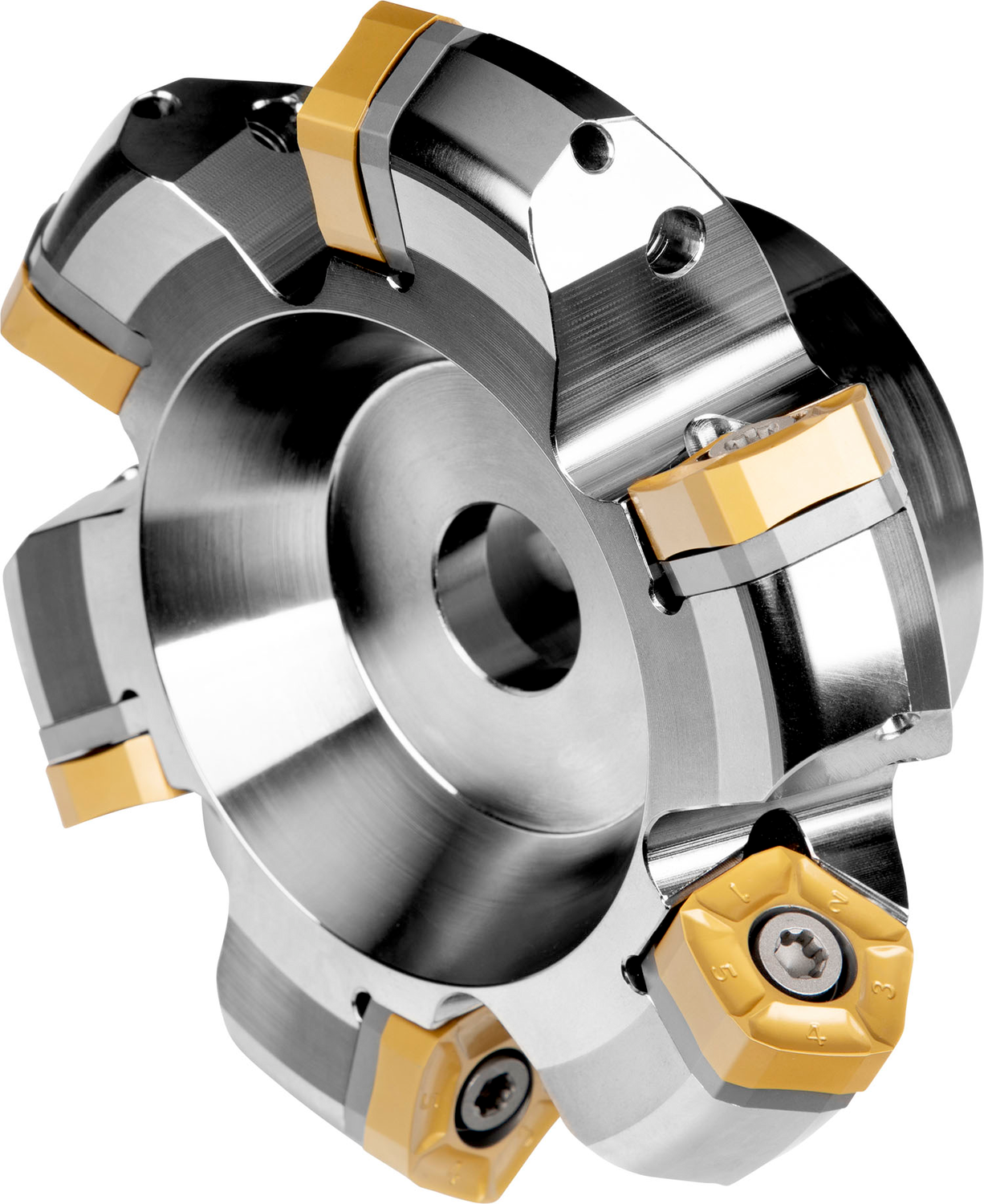

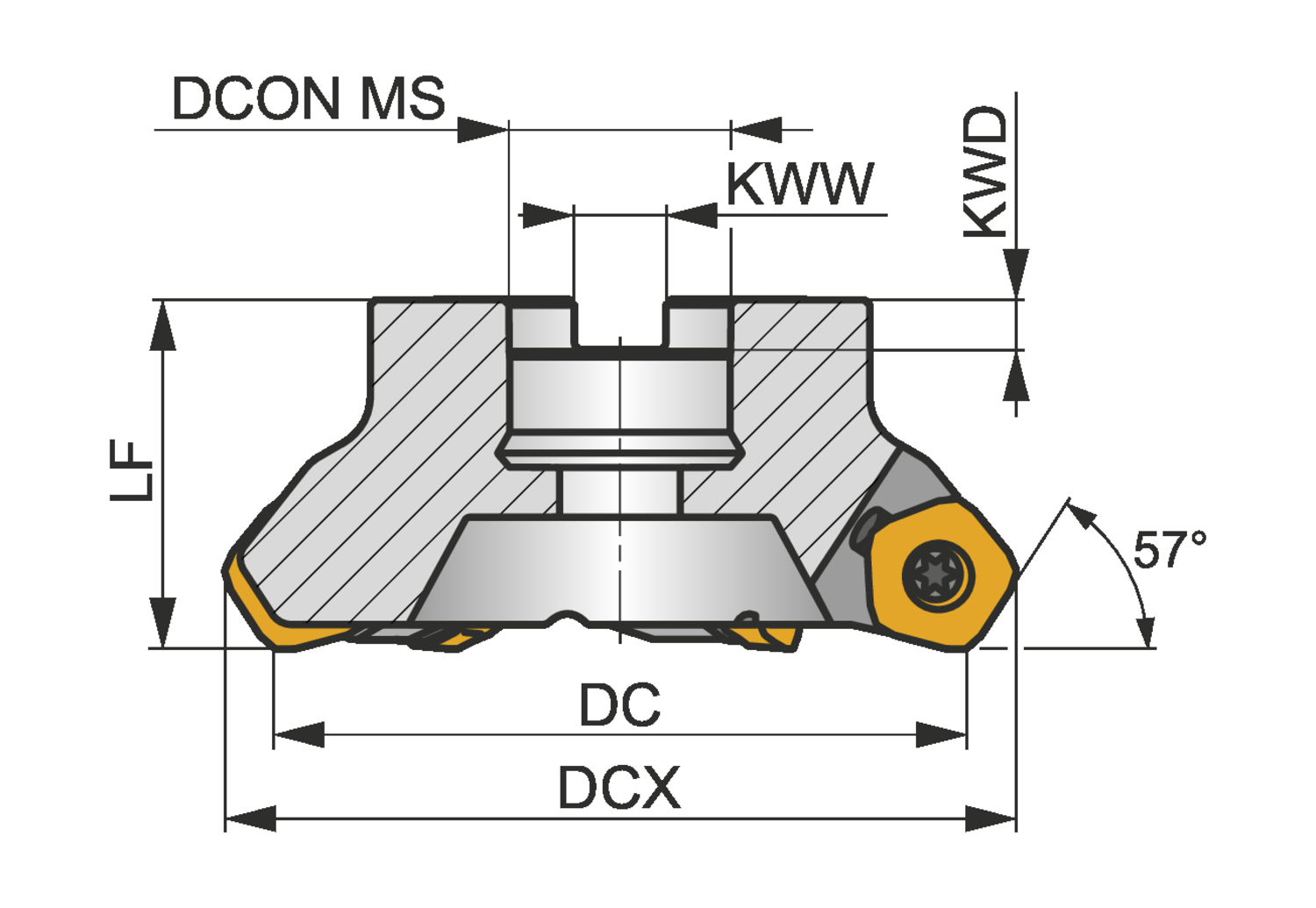

Face mill with double negative geometry which utilises 5 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 4.000 to maximum 4.629'' with 57° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length for face milling with a maximum depth of cut of .394''
- Product Name ISO: 400A05R-IS57PN13
- Ordering Code ANSI: 400A05R-IS57PN13
- EDP Number: 6792988
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 101.6 |
| Cutting Diameter (In.) | 4 |
| Connection Diameter (Mm.) | 38.1 |
| Connection Diameter (In.) | 1.5 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
