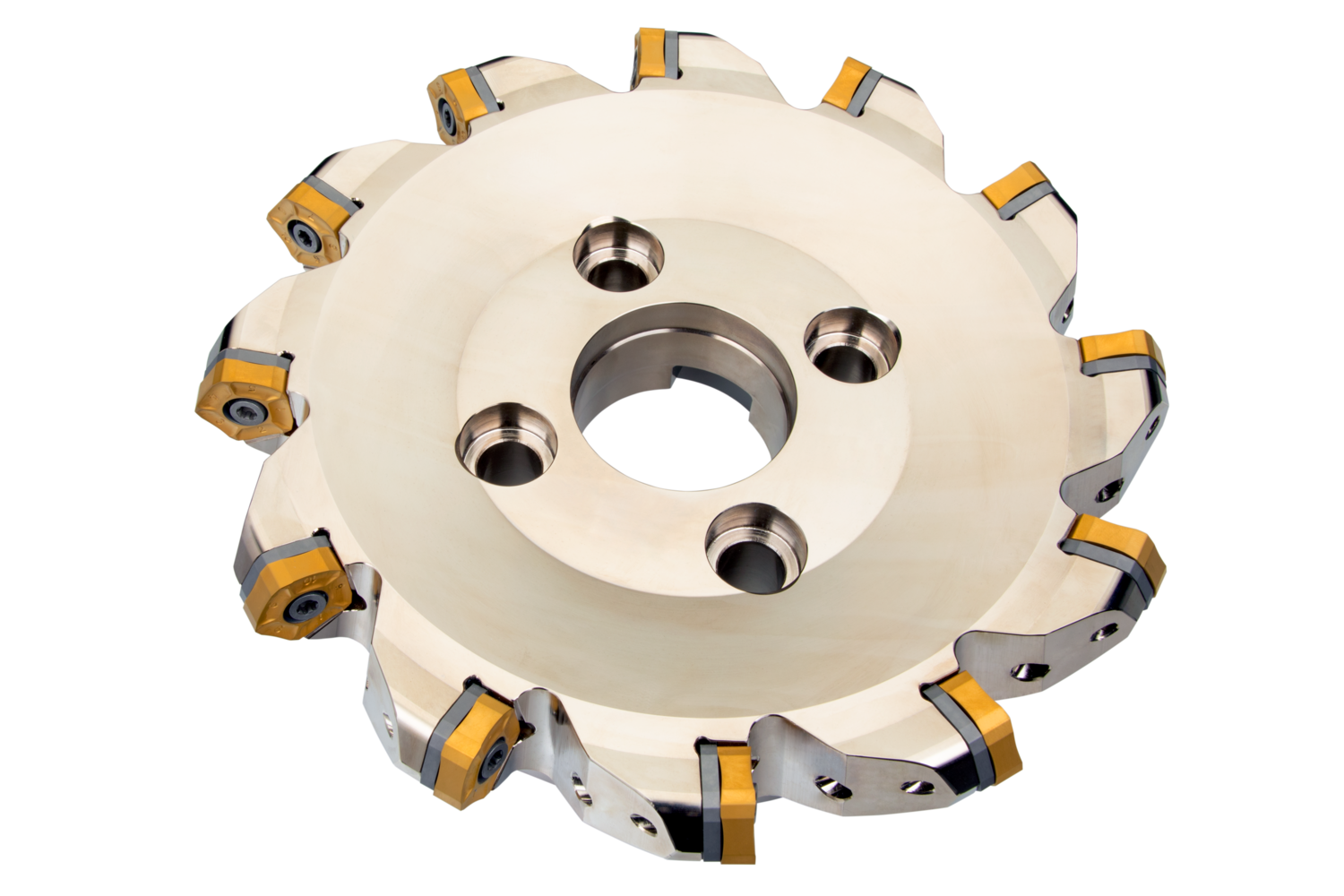

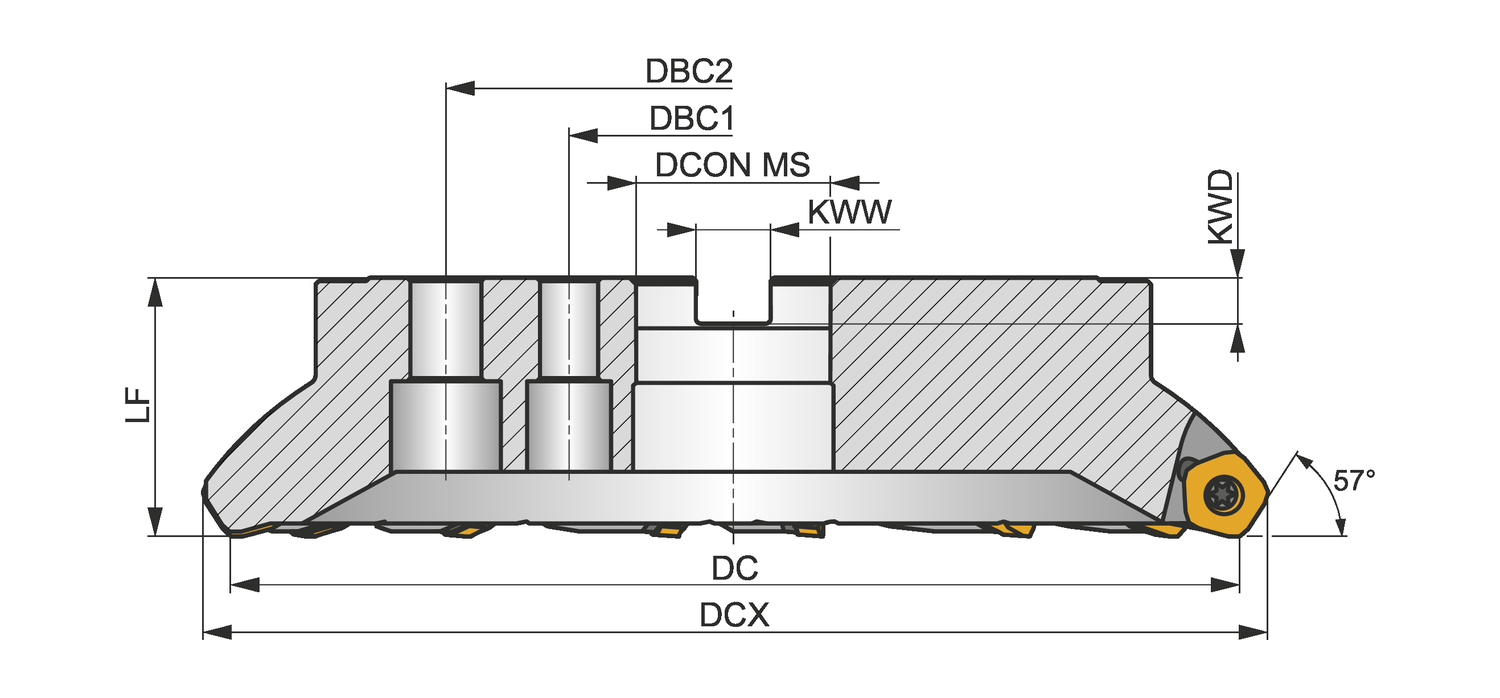

Face mill with double negative geometry which utilises 10 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 8.000 to maximum 8.627'' with 57° approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length for face milling with a maximum depth of cut of .394''
- Product Name ISO: 800C10R-IS57PN13
- Ordering Code ANSI: 800C10R-IS57PN13
- EDP Number: 6792991
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 203.2 |
| Cutting Diameter (In.) | 8 |
| Connection Diameter (Mm.) | 63.5 |
| Connection Diameter (In.) | 2.5 |
| Shank | Shell Mill DIN 8030 C |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
