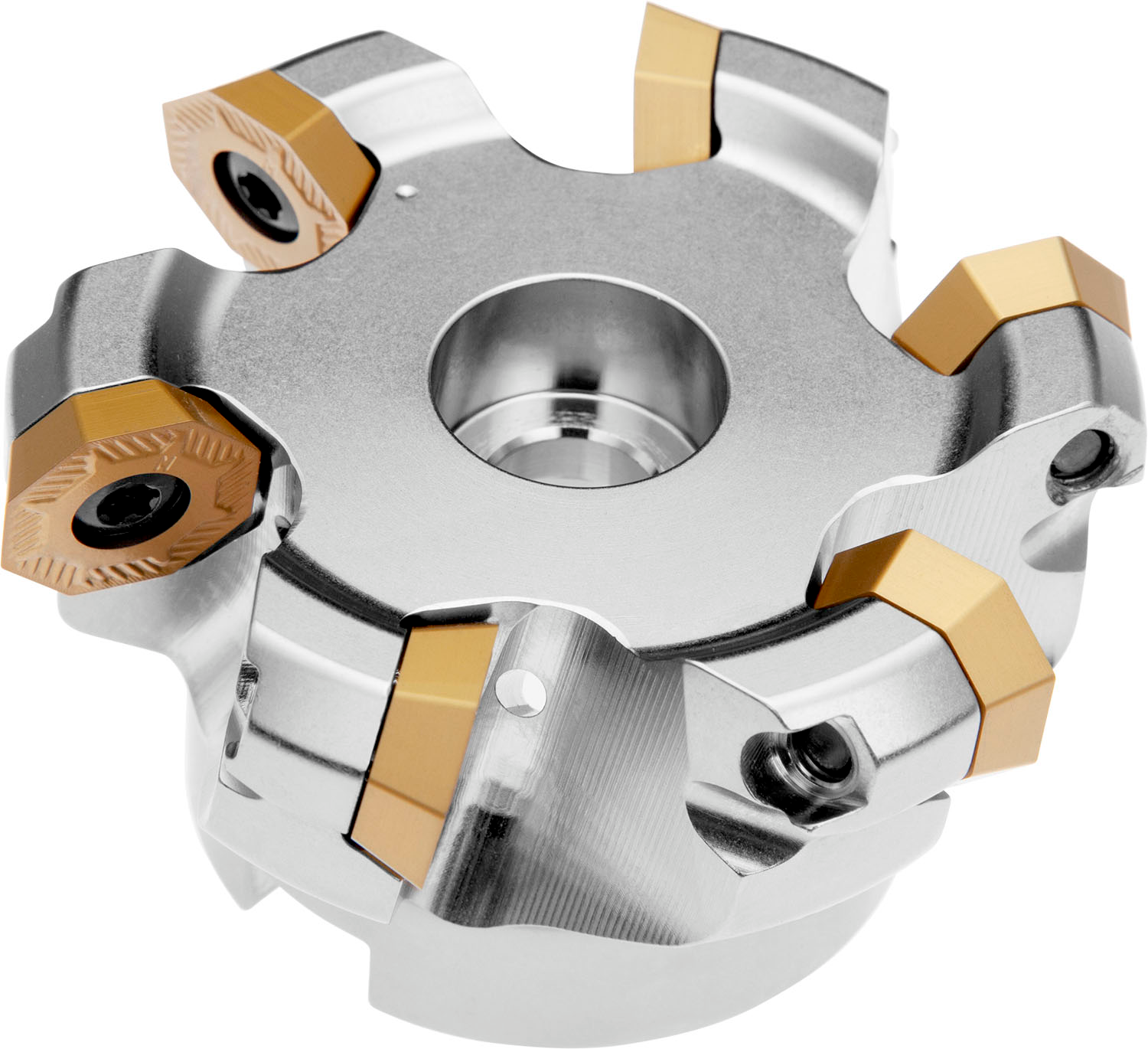

Face mill with double positive geometry which utilises 5 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 3.000 to maximum 3.402'' with 43° approach angle and 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .130 (.390)''
- Product Name ISO: 300A05R-IS45OE06Z-C
- Ordering Code ANSI: 300A05R-IS45OE06Z-C
- EDP Number: 7274857
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

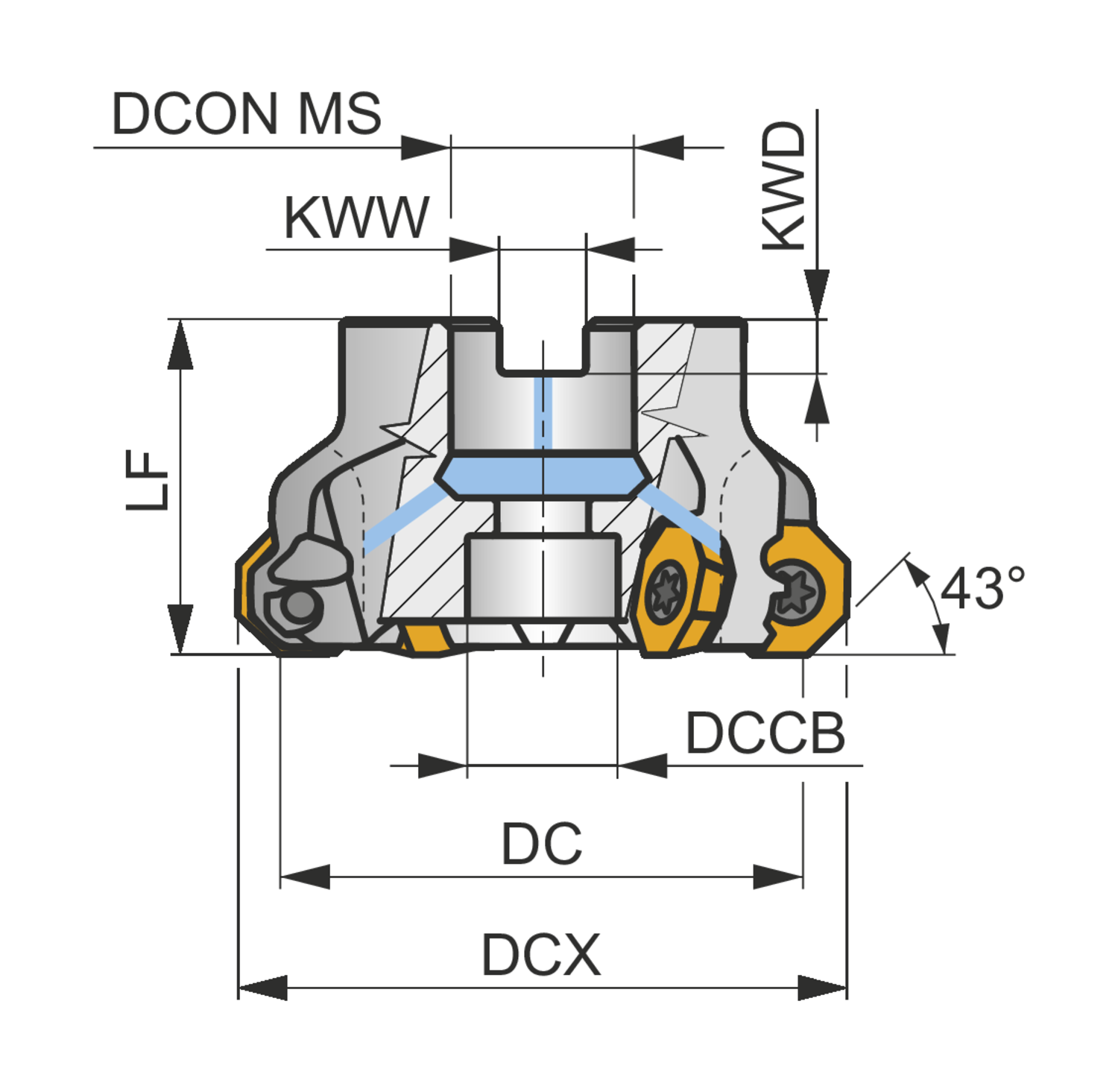

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 76.2 |
| Cutting Diameter (In.) | 3 |
| Connection Diameter (Mm.) | 25.4 |
| Connection Diameter (In.) | 1 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
