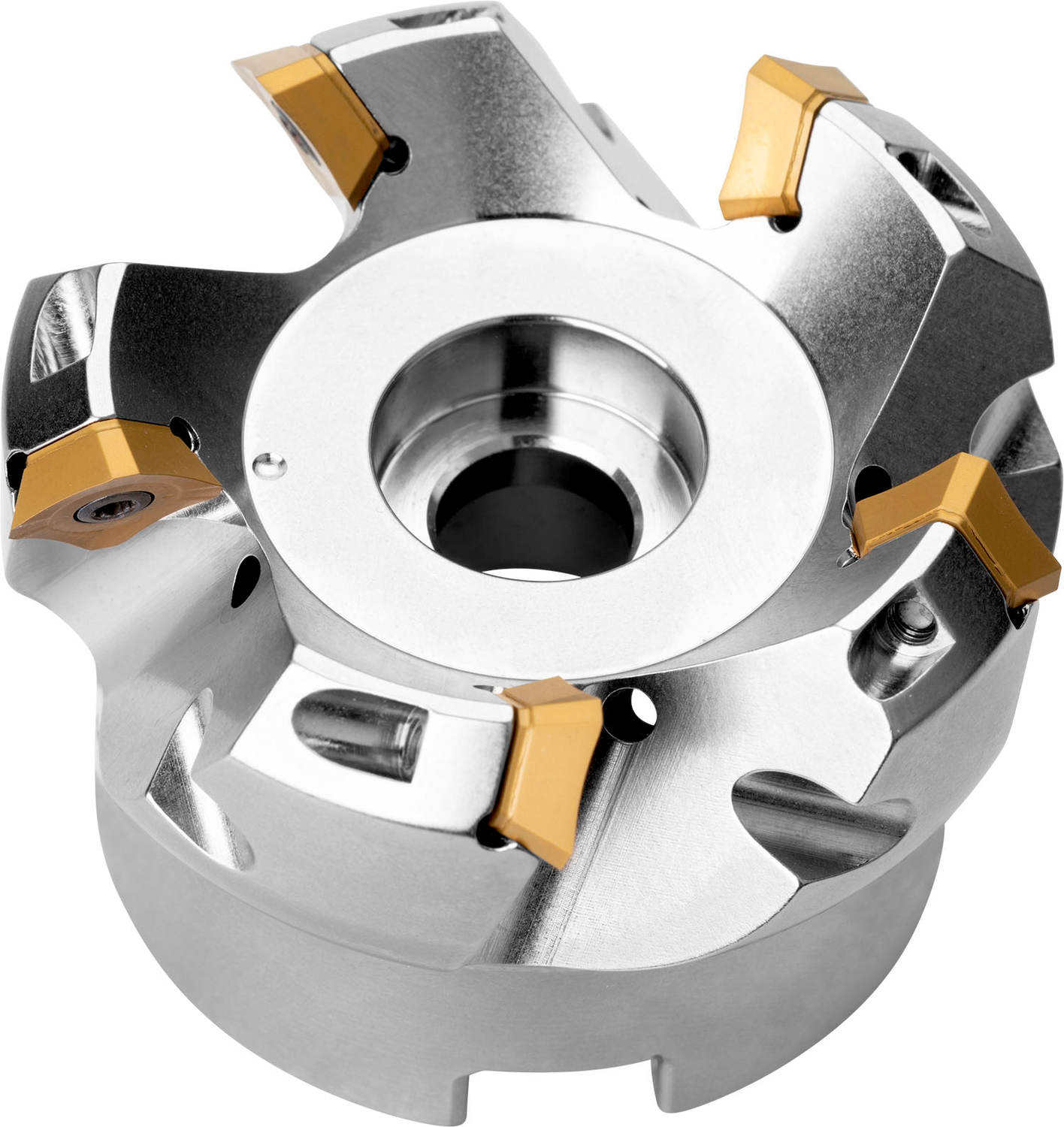

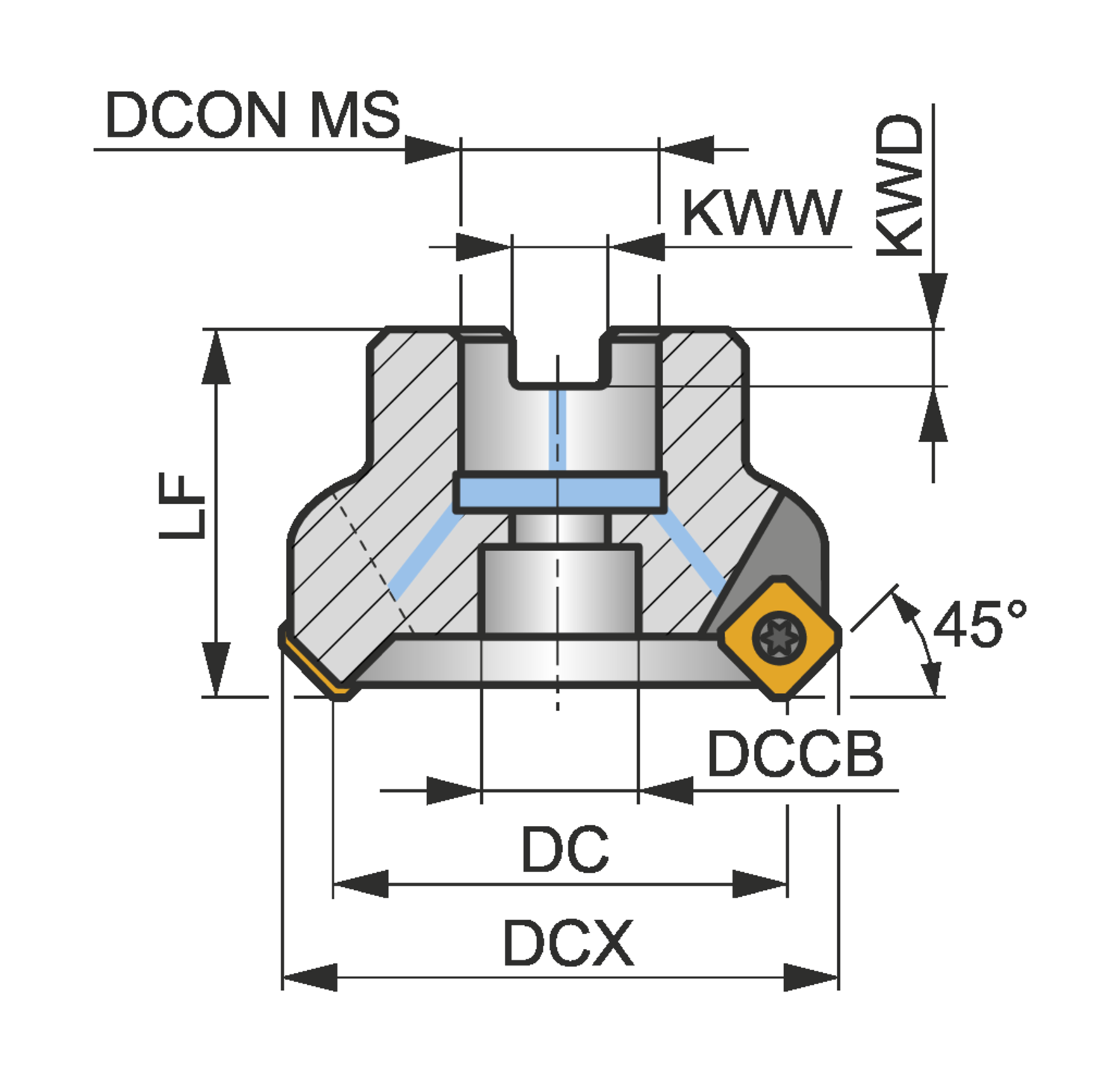

Face mill with positve/negative geometry which utilises 8 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 4.000 to maximum 4.394'' with 45° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .177''

• Product Name ISO: 400A08R-IS45SE09F-C
• Ordering Code ANSI: 400A08R-IS45SE09F-C
• EDP Number: 6789741
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
