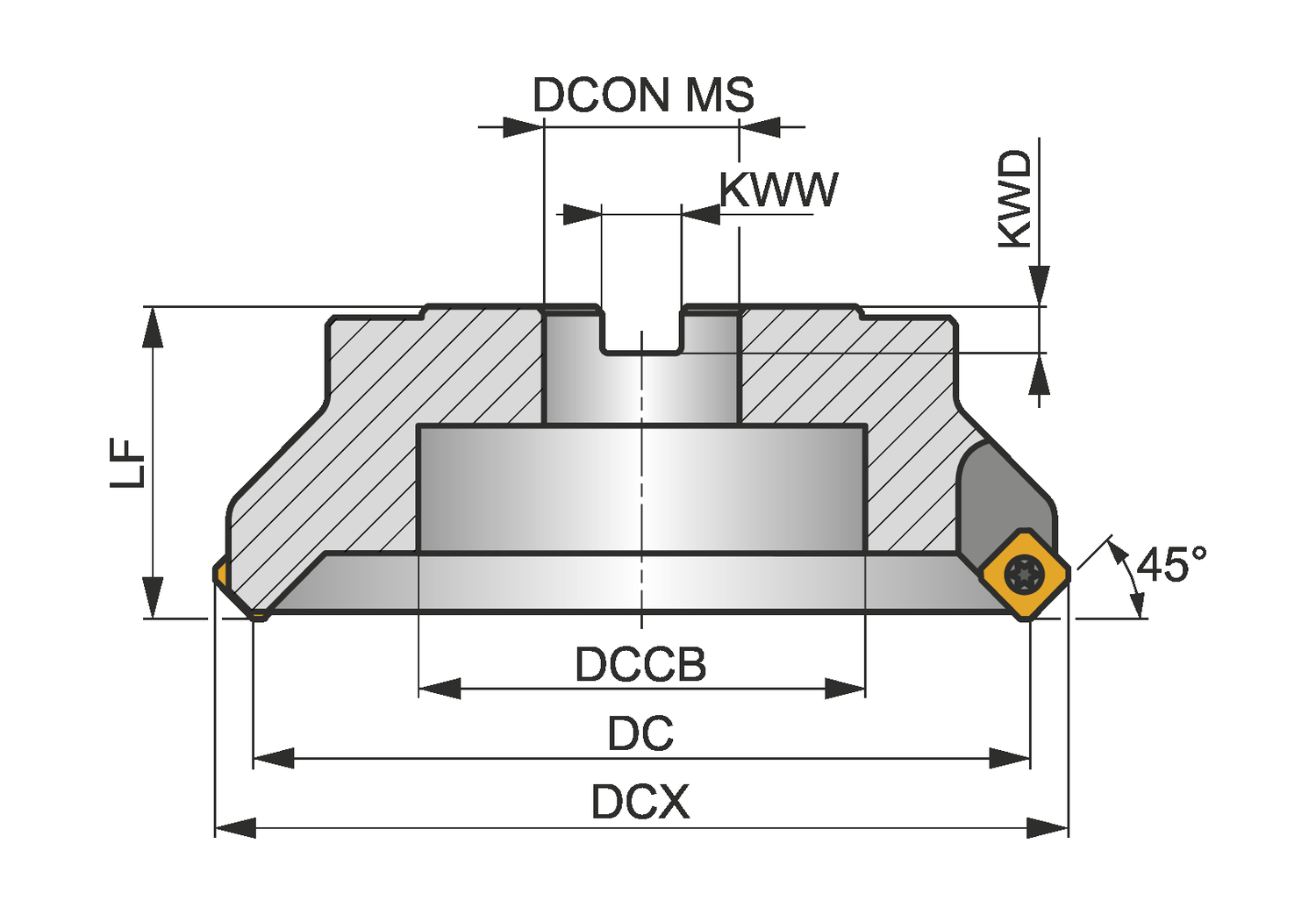

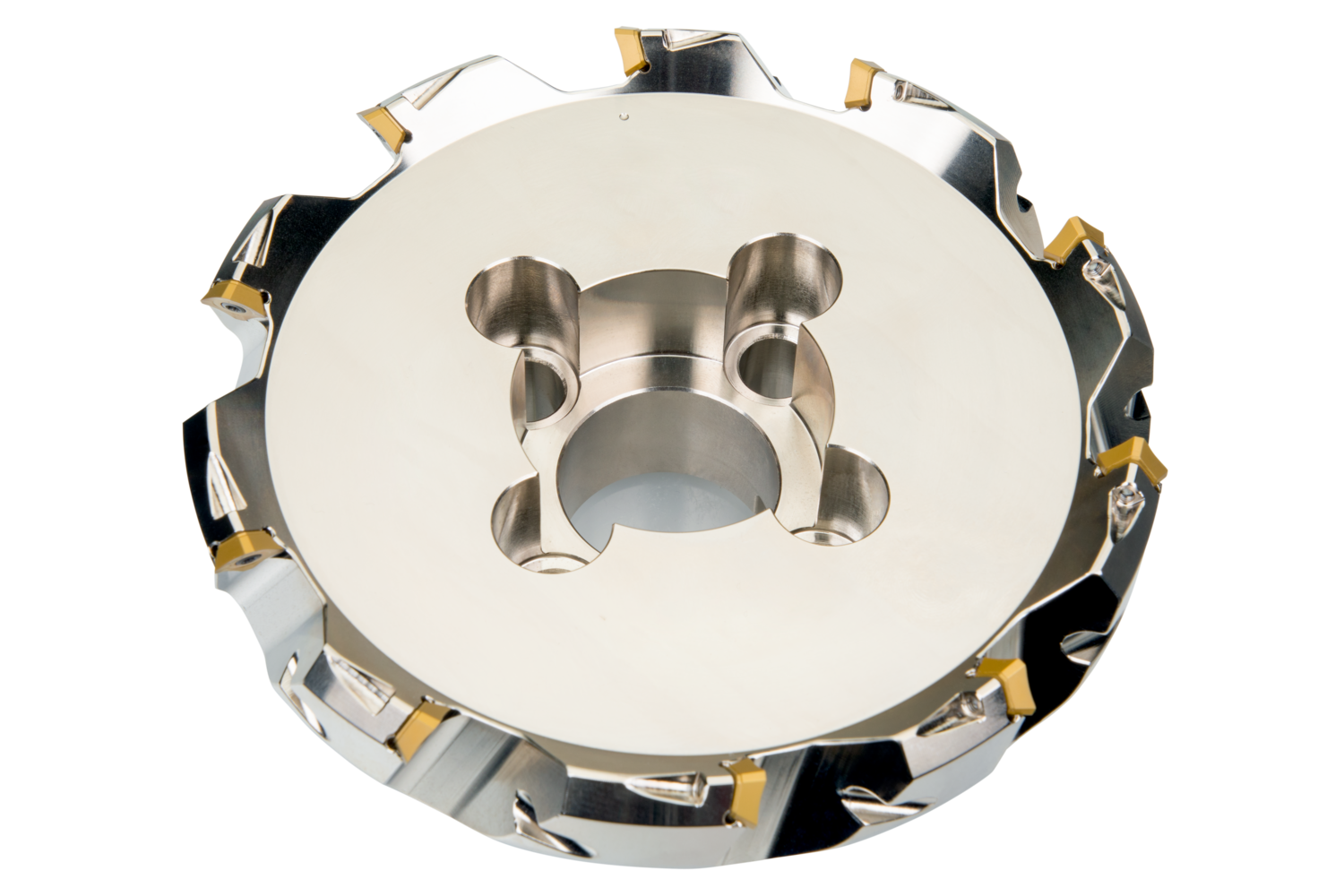

Face mill with positve/negative geometry which utilises 10 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 6.000 to maximum 6.378'' with 45° approach angle and 2.000'' connection bore according to DIN 8030-B, 2.480'' protrusion length for face milling and chamfering with a maximum depth of cut of .177''
- Product Name ISO: 600B10R-IS45SE09F
- Ordering Code ANSI: 600B10R-IS45SE09F
- EDP Number: 6789745
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 152.4 |
| Cutting Diameter (In.) | 6 |
| Connection Diameter (Mm.) | 50.8 |
| Connection Diameter (In.) | 2 |
| Shank | Shell Mill DIN 8030 B |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
