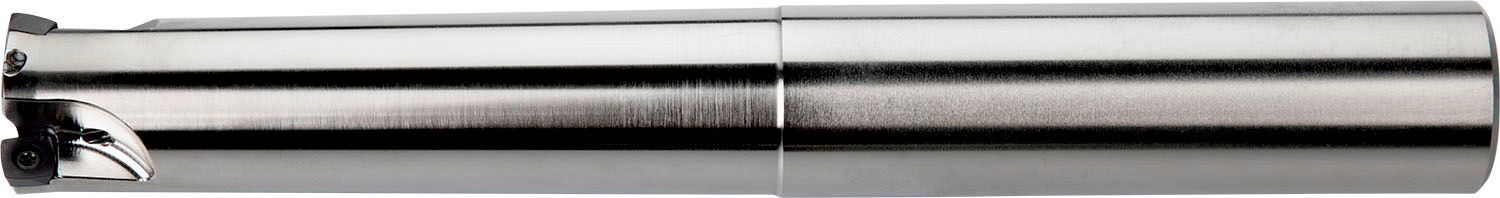

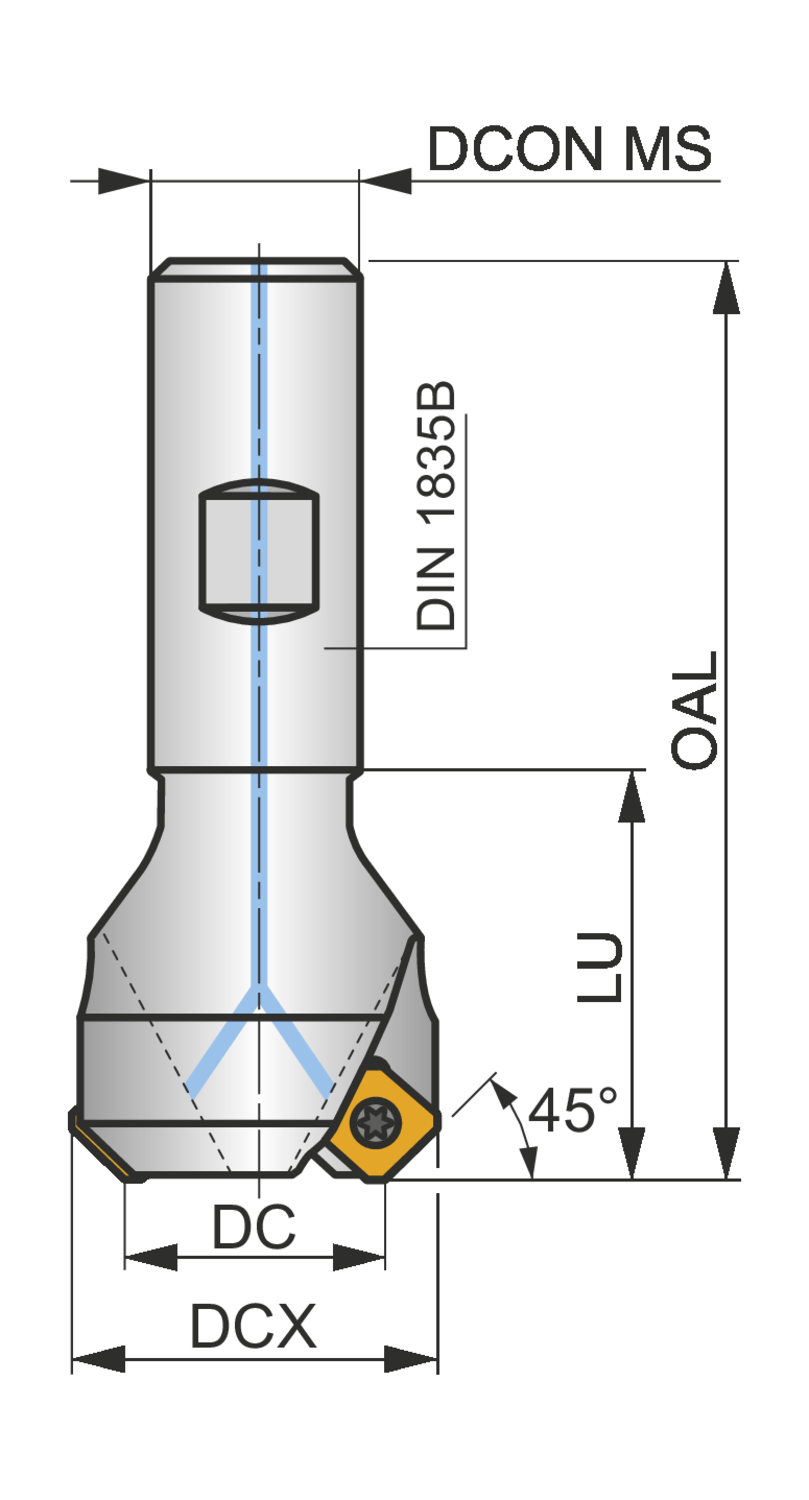

Face mill with positve/negative geometry which utilises 3 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 1.000 to maximum 1.386'' with 45° approach angle and 1.000'' Weldon shank according to DIN 1835B, 3.819'' overall length, through coolant for face milling and chamfering with a maximum depth of cut of .177''
- Product Name ISO: 100N3R128W100-ISSE09-C
- Ordering Code ANSI: 100N3R128W100-ISSE09-C
- EDP Number: 6789713
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 25.4 |
Cutting Diameter (In.) | 1 |
Connection Diameter (Mm.) | 25.4 |
Overall Length (Mm.) | 97 |
Connection Diameter (In.) | 1 |
Overall Length (In.) | 3.819 |
Shank | Weldon Shank DIN 1835B |
Cutting Direction | Right |
Clamping Type | Screw Clamping Through Hole |
Cooling | 1 |
