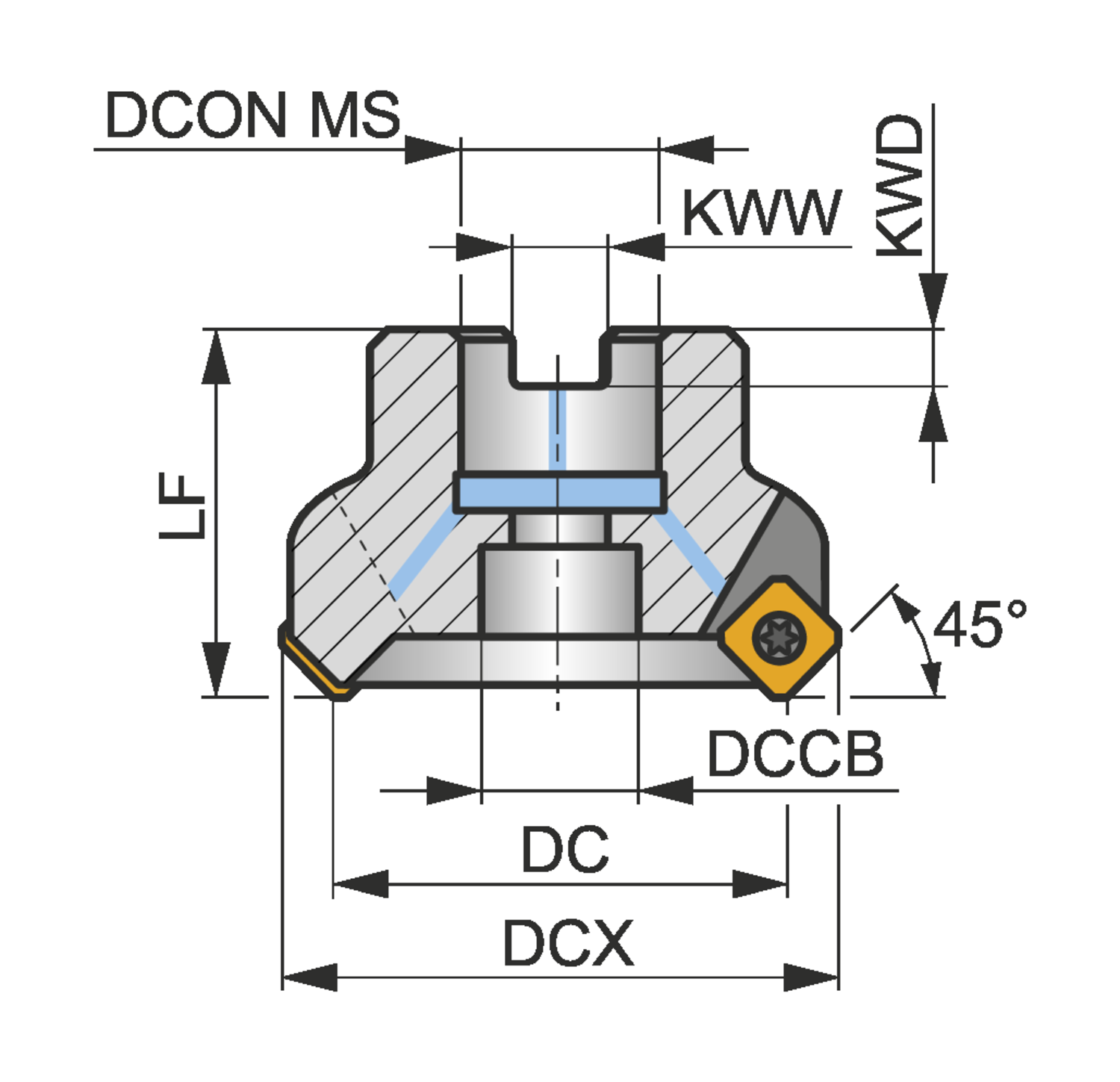

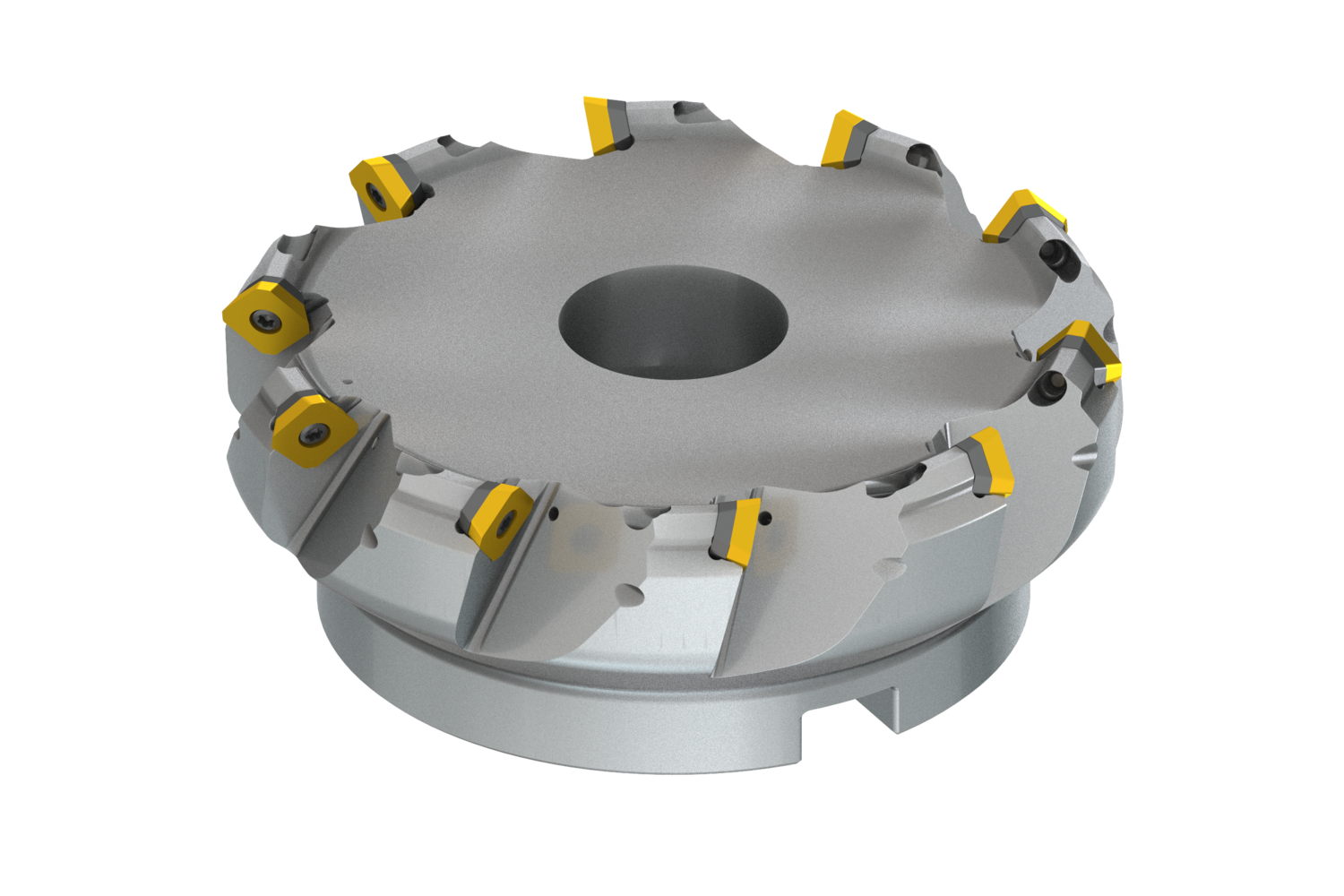

Face mill with positve/negative geometry which utilises 10 of SDET 13T3.., SDMT 13T3.. or XDET 13T3.. single-sided inserts, cutting diameter 6.000" to maximum 6.504" with 45° approach angle and 2.000" connection bore according to DIN 8030-A, 2.480" functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 0.252"

• Product Name ISO: 600A10R-IS45SD13F-C
• Ordering Code ANSI: 600A10R-IS45SD13F-C
• EDP Number: 8216573
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
