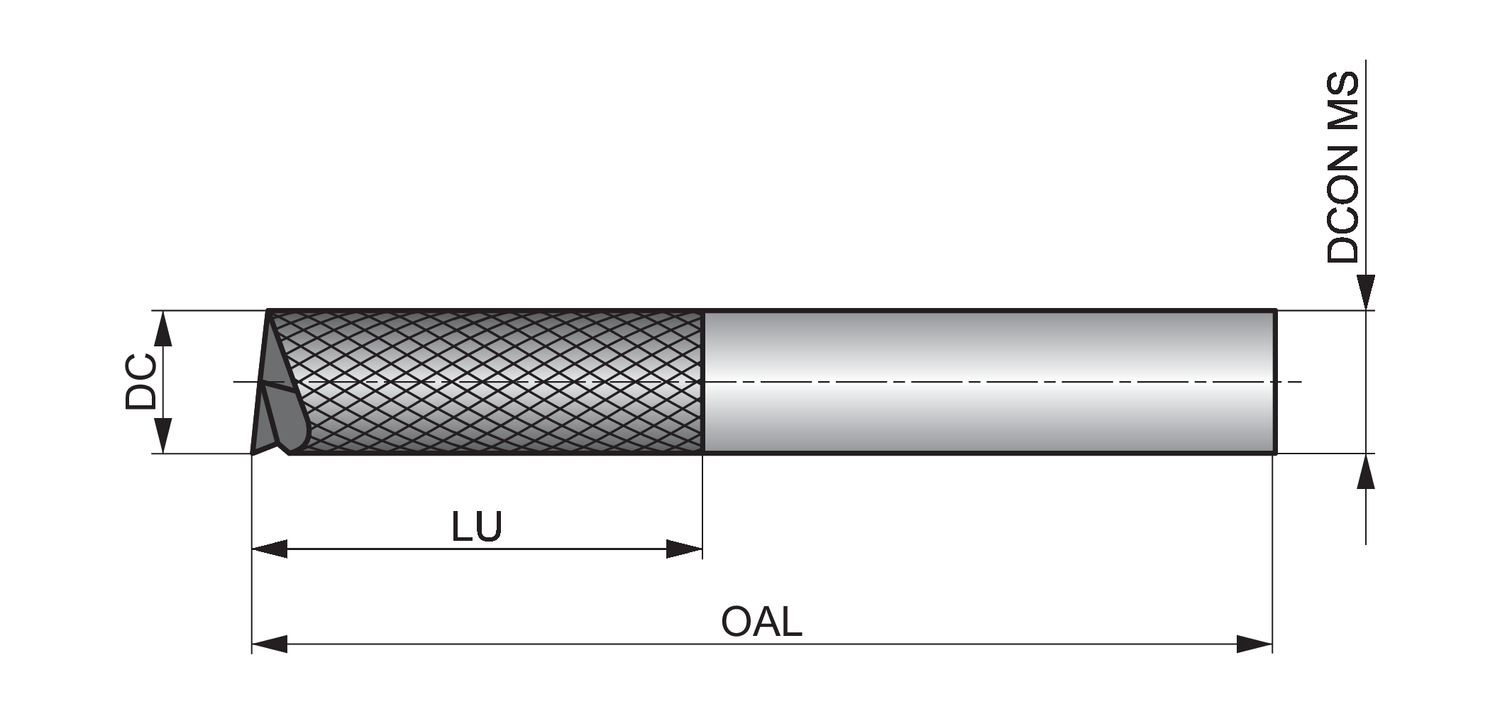

Router with end mill type end cut, diameter 1/8" with 1/2" length of cut, 1.1/2" overall length and 1/8" shank, solid carbide with bright finish, GRP diamond cut flute style with medium spaced edges for contouring, groove and pocket milling and cutting out shapes in glass fibre reinforced polymers
- Product Name ISO: FGR-02C
- Ordering Code ANSI: FGR-02C
- EDP Number: 7466384
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 3.18 |
| Cutting Diameter (In.) | 0.125 |
| Cutting Diameter Fractional (In.) | 1/8 |
| Connection Diameter (Mm.) | 3.18 |
| Overall Length (Mm.) | 38.1 |
| Connection Diameter (In.) | 0.125 |
| Overall Length (In.) | 1.5 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Point Angle | 180 |
| Burr Type | Fibreglass and Composite Materials Cut Geometry |
