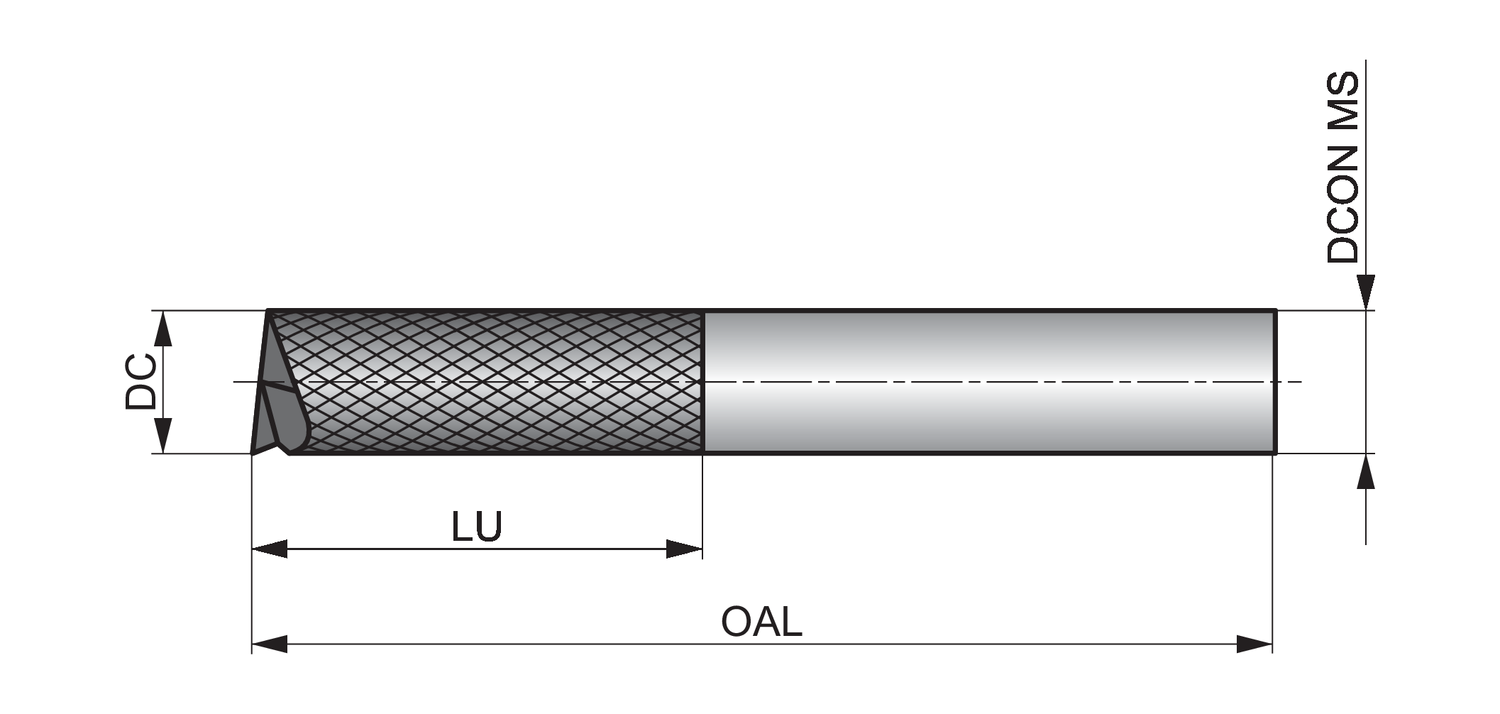

Picture of FGR-C Diamond Cut Router - End Mill Cut - FGR-10C, Picture 1

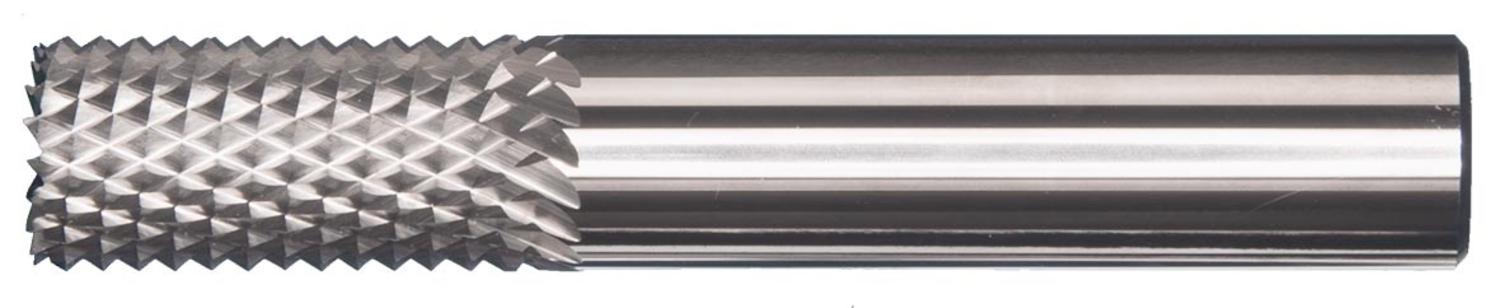

Picture of FGR-C Diamond Cut Router - End Mill Cut - FGR-10C, Picture 2

Picture of FGR-C Diamond Cut Router - End Mill Cut - FGR-10C

FGR-C Diamond Cut Router - End Mill Cut - FGR-10C

FGR-C Diamond Cut Router - End Mill Cut 2.5"

SKU	7466385
MPN	7466385
Weight	0.06 lb
Width	2.56 inch
Length	0.39 inch
Height	0.39 inch

$30.07 excl tax

excl. VAT plus shipping

Order within 8 hrs 59 mins and this product can SHIP TOMORROW ON Sunday, August 03!

Add to cart

Add to List

Compare

Questions?

Email a friend

Router with end mill type end cut, diameter 1/4" with 1" length of cut, 2.1/2" overall length and 1/4" shank, solid carbide with bright finish, GRP diamond cut flute style with medium spaced edges for contouring, groove and pocket milling and cutting out shapes in glass fibre reinforced polymers

Product Name ISO: FGR-10C
Ordering Code ANSI: FGR-10C
EDP Number: 7466385
Coating: Bright
Material Code (BMC): HM
Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

Product Measurement Standard	Inch
Cutting Diameter (Mm.)	6.35
Cutting Diameter (In.)	0.25
Cutting Diameter Fractional (In.)	1/4
Connection Diameter (Mm.)	6.35
Overall Length (Mm.)	63.5
Connection Diameter (In.)	0.25
Overall Length (In.)	2.5
Material Code	HM
Coating	Bright
Shank	Cylindrical Shank
Point Angle	180
Burr Type	Fibreglass and Composite Materials Cut Geometry
