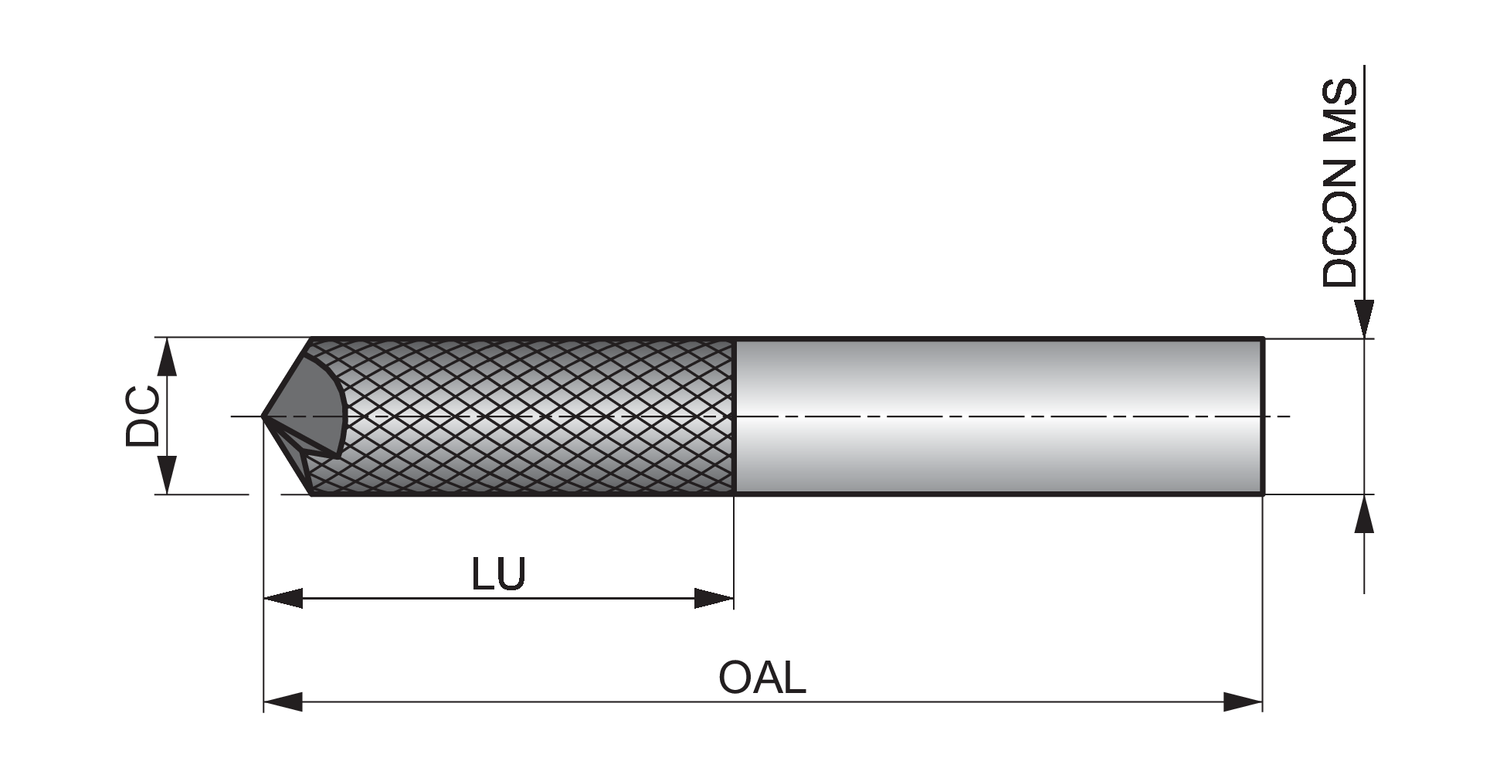

Router with 135° drill point, diameter 1/4" with 1.1/2" length of cut, 3" overall length and 1/4" shank, solid carbide with bright finish, GRP diamond cut flute style with medium spaced edges for contouring, cutting out shapes and holes in glass fibre reinforced polymers
- Product Name ISO: FGR-10XD-L
- Ordering Code ANSI: FGR-10XD-L
- EDP Number: 7466389
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 6.35 |
| Cutting Diameter (In.) | 0.25 |
| Cutting Diameter Fractional (In.) | 1/4 |
| Connection Diameter (Mm.) | 6.35 |
| Overall Length (Mm.) | 76.2 |
| Connection Diameter (In.) | 0.25 |
| Overall Length (In.) | 3 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Point Angle | 135 |
| Burr Type | Fibreglass and Composite Materials Cut Geometry |
