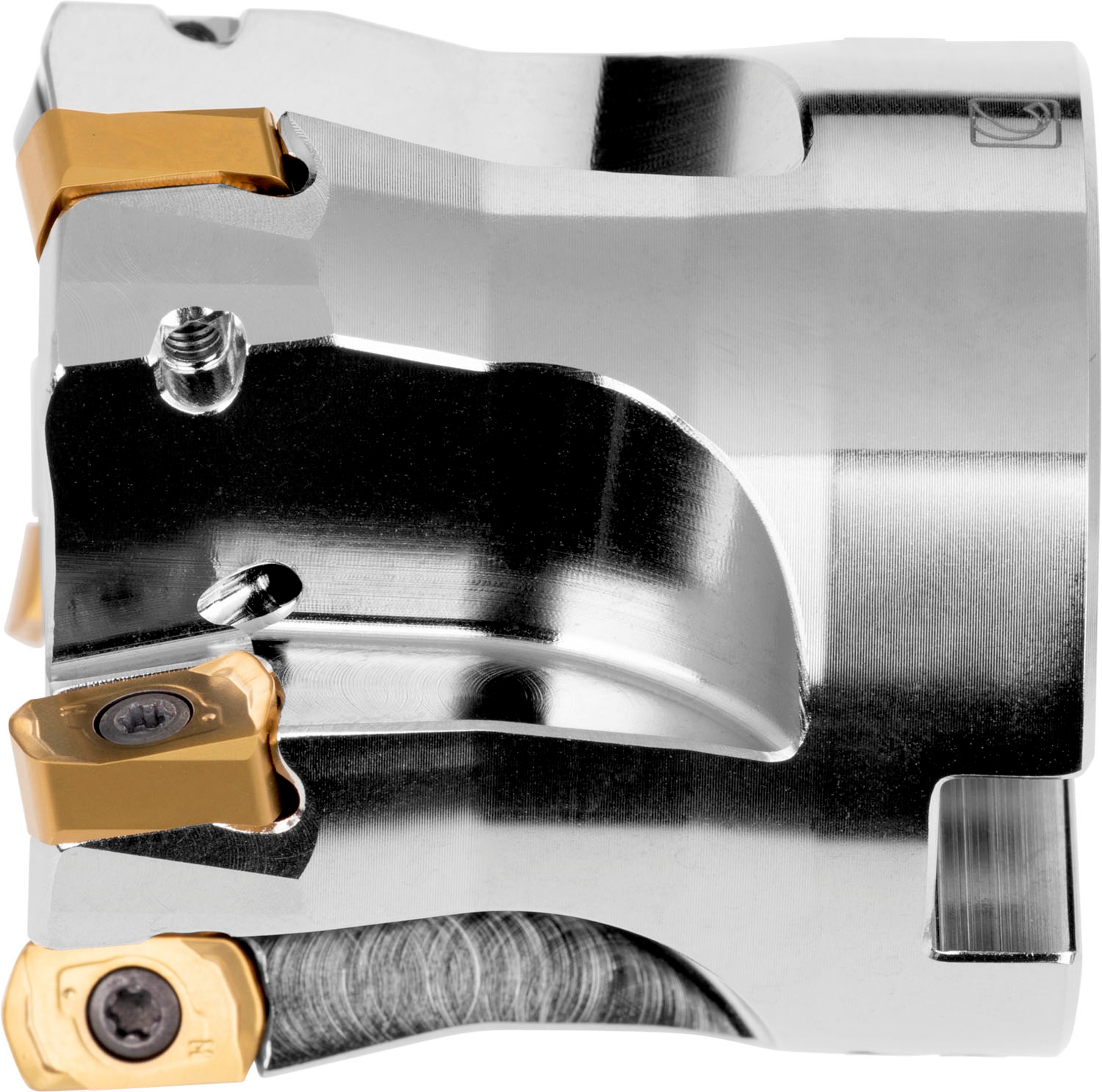

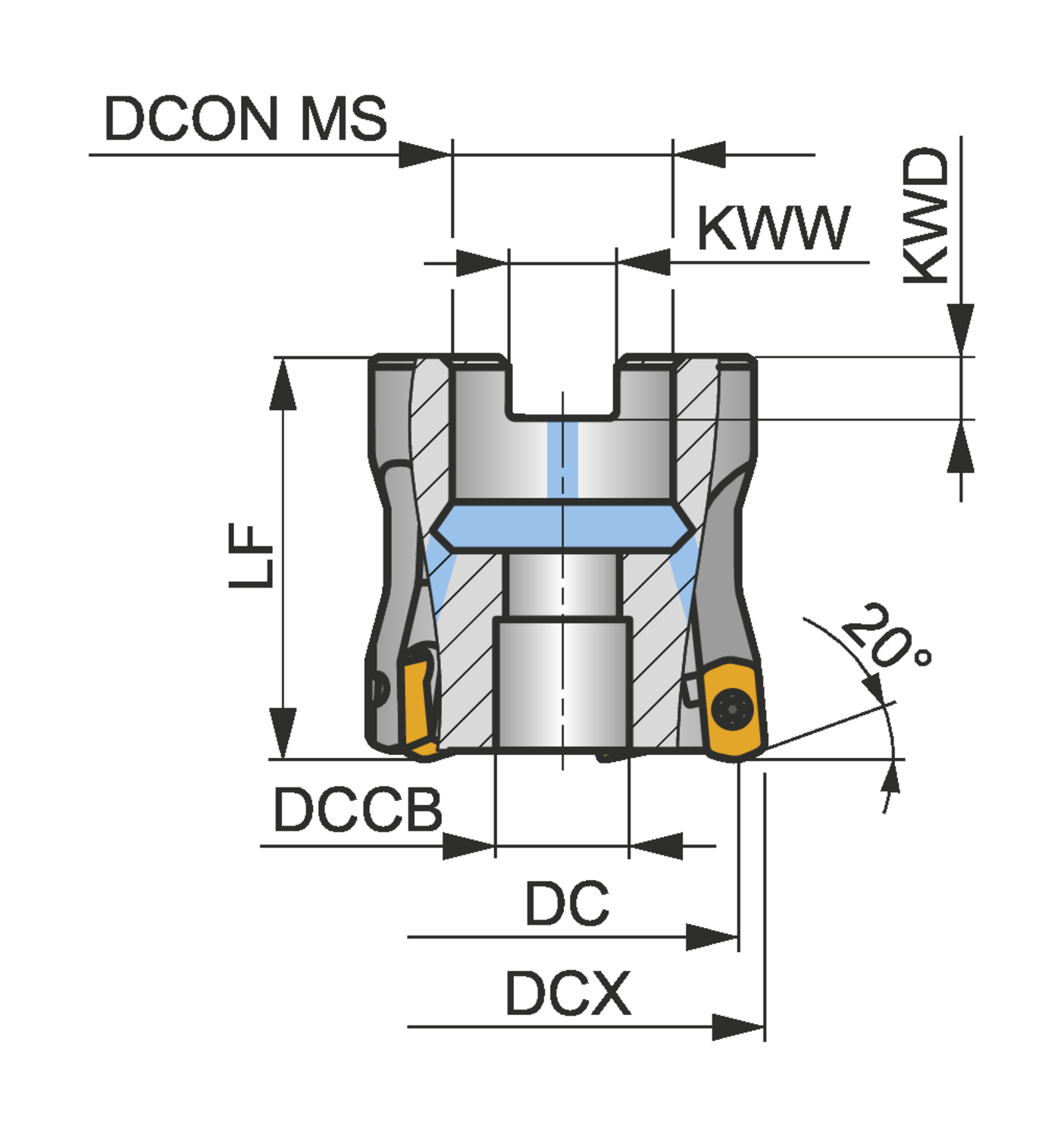

High feed cutter with double negative geometry which utilises 5 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 1.50'' with 20° approach angle and .50'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant and differential pitch for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''

• Product Name ISO: 150A05R-ISMOBN10-C
• Ordering Code ANSI: 150A05R-ISMOBN10-C
• EDP Number: 7464859
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
