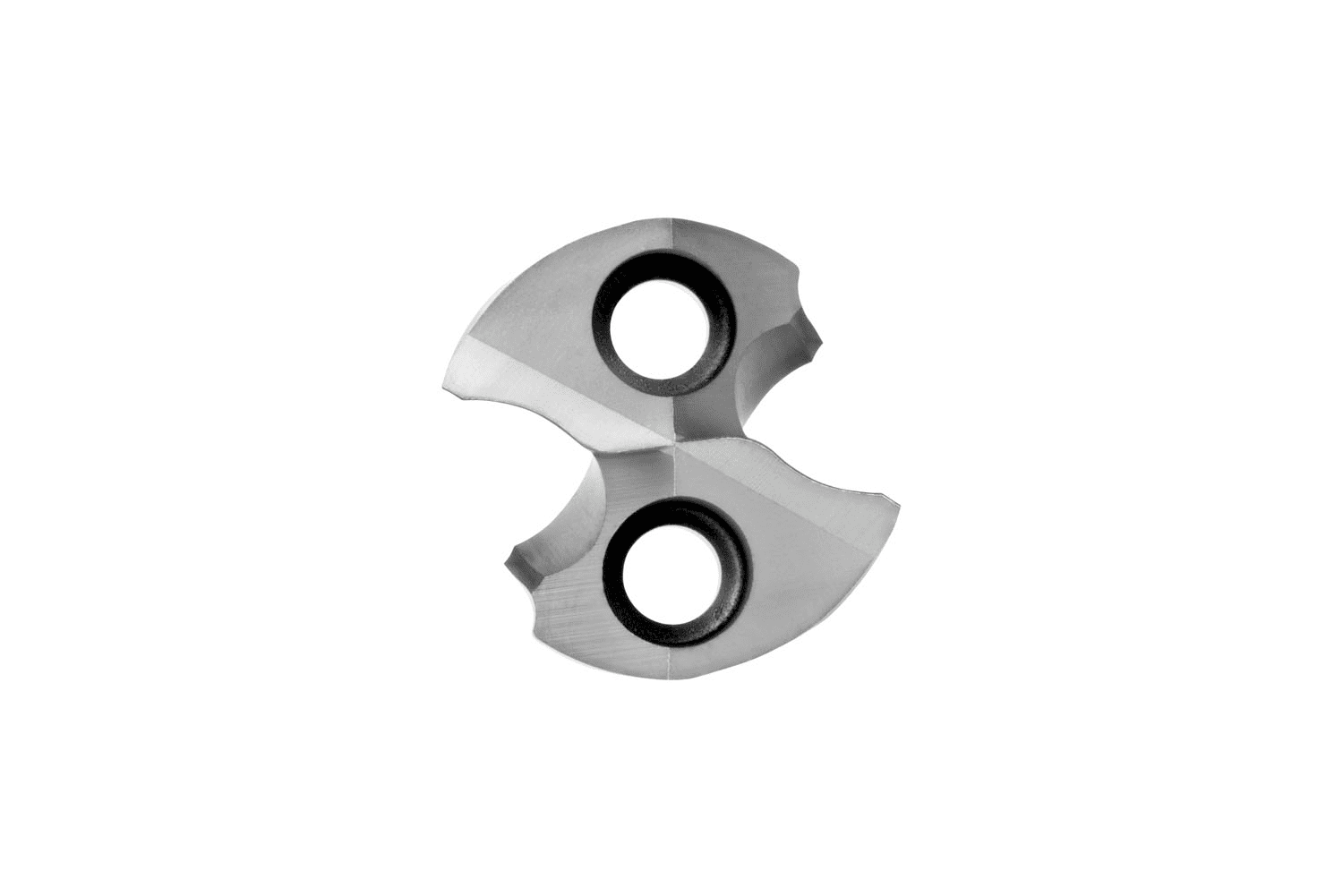

High-performance replaceable drill head HYDRA P, diameter 1.1719" (1.11/64) according to DORMER standard with 140° modified 4-facet split point, solid carbide with Ti-phon coating for drilling steel in combination with HYDRA body size 1.11/64" or 29mm, H853 for up to 3xD, H855 for up to 5xD or H858 for up to 8xD
- Product Name ISO: R9501.11/64
- Ordering Code ANSI: R9501.11/64
- EDP Number: 0013427
- Coating: Ti-phon
- Material Code (BMC): HM
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

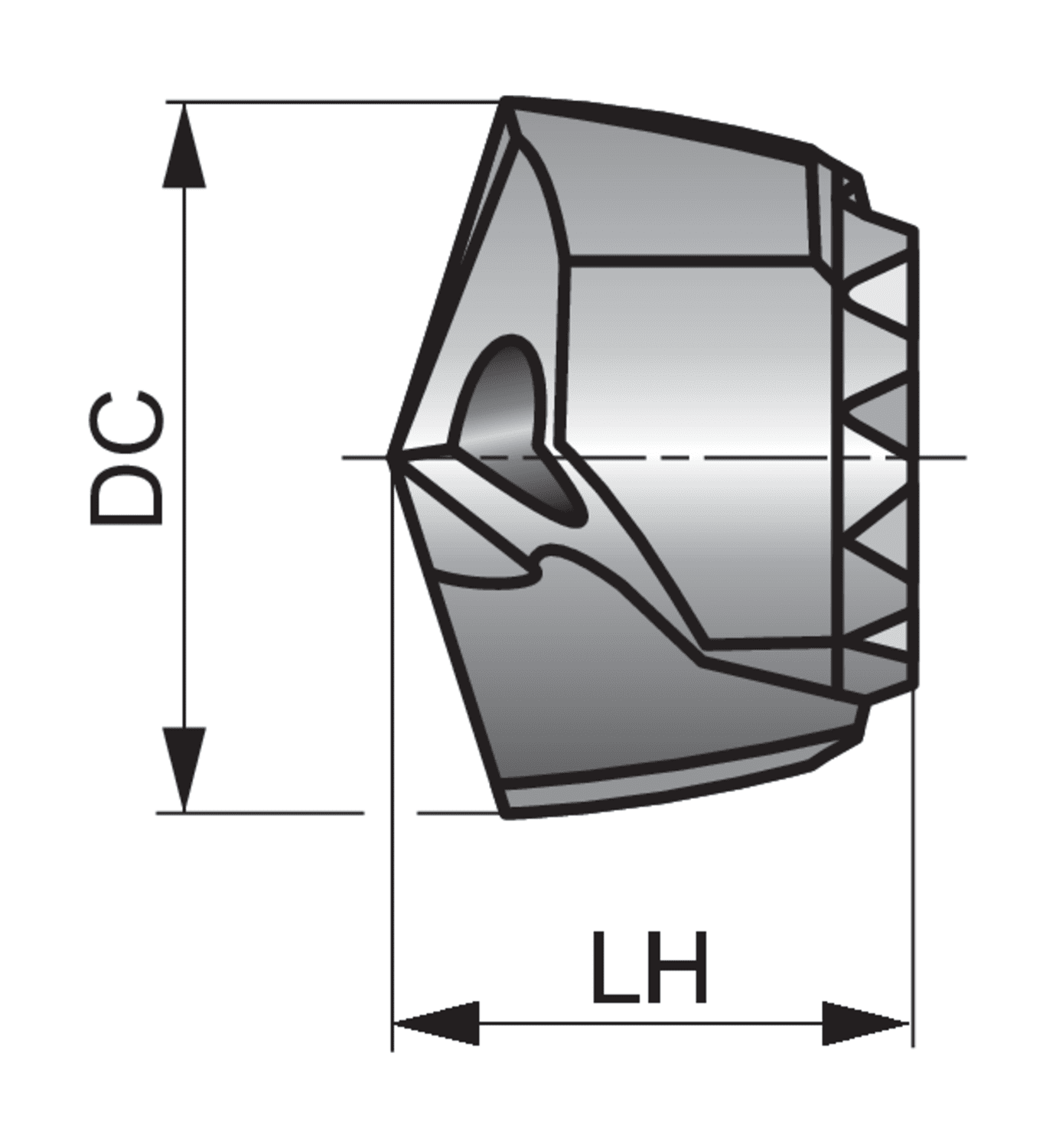

| Cutting Diameter (Mm.) | 29.77 |
| Cutting Diameter (In.) | 1.1719 |
| Cutting Diameter Fractional (In.) | 1.11/64 |
| Head Length (Mm.) | 18.3 |
| Material Code | HM |
| Coating | Ti-phon |
| Point Angle | 140 |
| Cutting Direction | Right |
| Cooling | 1 |
