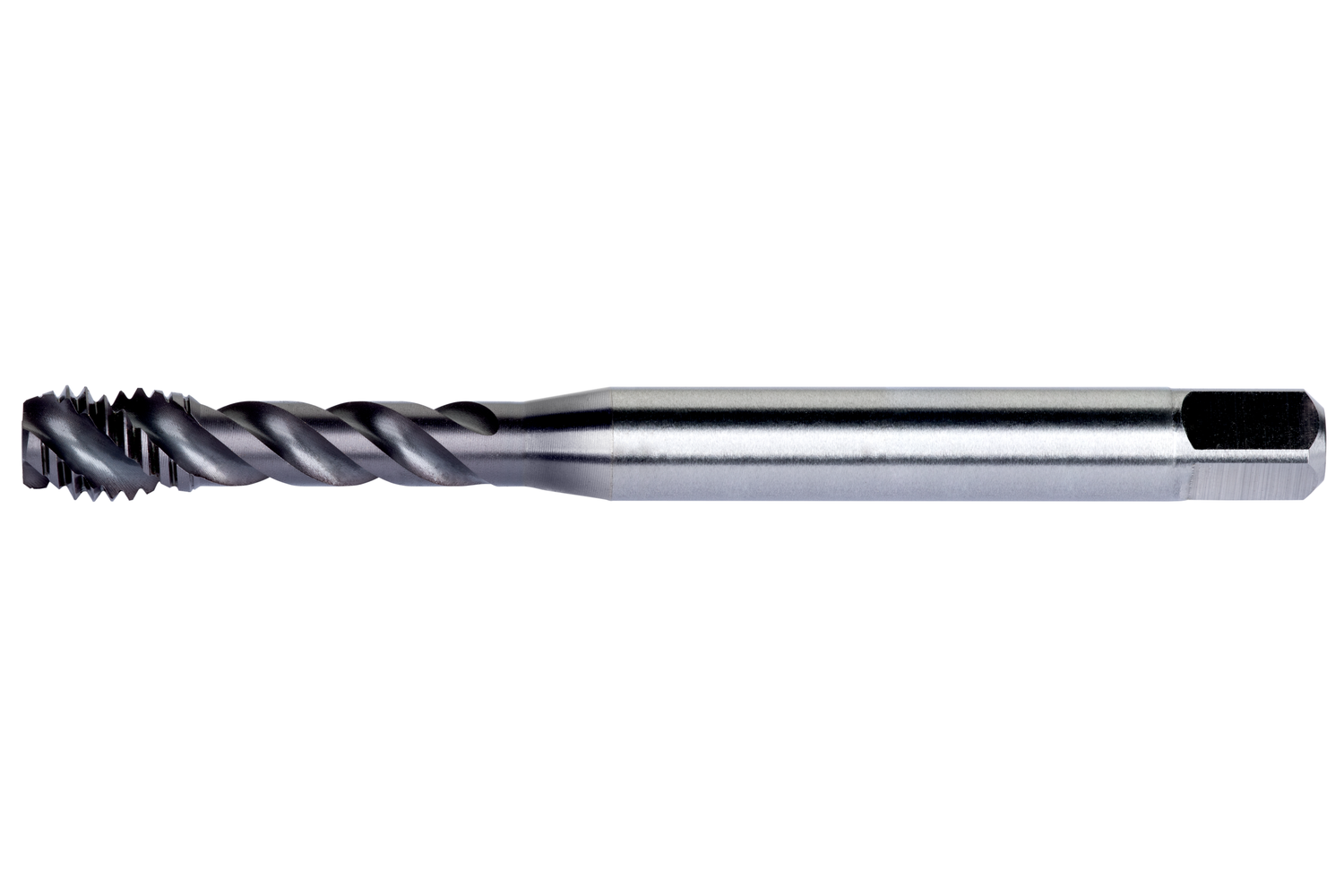

Thread size UNC 0.394 inch - 24 TPI, with thread tolerance class 93707, H3 pitch diameter limits, and maximum threading depth 0.985 inches.
- Product Name ISO: E698UNC10X24
- Ordering Code ANSI: E698UNC10X24
- EDP Number: 8464279
- Coating: TiCN
- Material Code (BMC): HSS-E-PM
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Threads Per Inch | 24 |
| Connection Diameter (In.) | 0.194 |
| Overall Length (In.) | 2.756 |
| Material Code | HSS-E-PM |
| Coating | TiCN |
| Flute Count | 3 |
| Tap Application | Blind Hole |
| Thread Form | UNC - Unified Coarse |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 10 |
