Indexable ball nose segment copy milling insert for a diameter of 1.2598" for a maximum depth of cut of 1.126", FM geometry and M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10 and K01-K10 for machining of steel and cast-iron with copy end mills L2-SZPshoulder mills SLN12X
- Product Name ISO: ZP 32ER-FM:M8310
- Ordering Code ANSI: ZP 32ER-FM:M8310
- EDP Number: 6756244
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 28.6 |

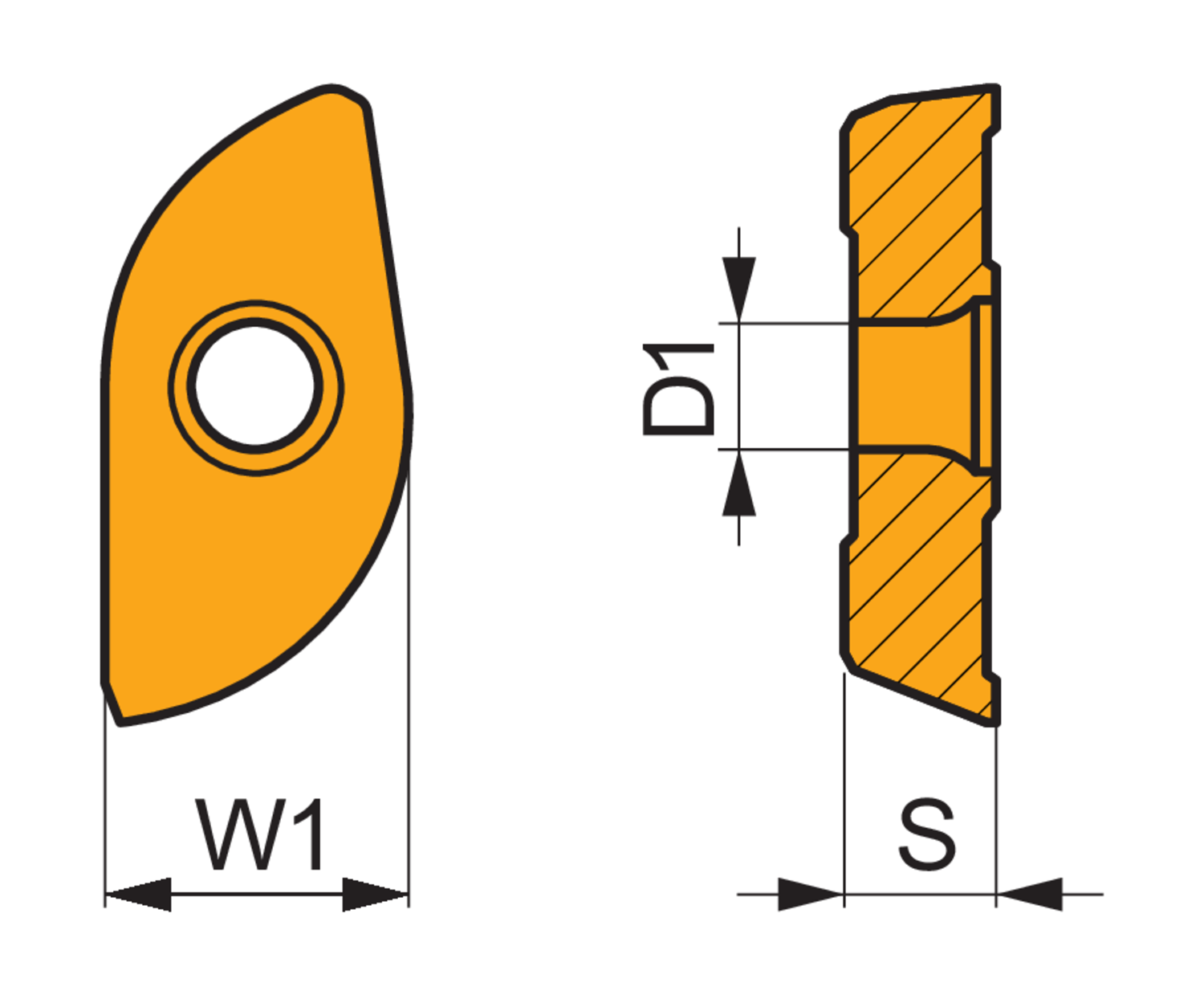

| Fixing Hole Diameter (Mm.) | 5.9 |
| Insert Thickness (Mm.) | 6.35 |
| Insert Width (Mm.) | 32 |
| Max Depth of Cut (In.) | 1.126 |
| Coating | M8310 |
