Indexable ball nose segment copy milling insert for a diameter of .4724" for a maximum depth of cut of .4213", FM geometry and M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy end mills L2-SZPshoulder mills SLN12X
- Product Name ISO: ZP 12ER-FM:M8345
- Ordering Code ANSI: ZP 12ER-FM:M8345
- EDP Number: 6756112
- Coating: M8345
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

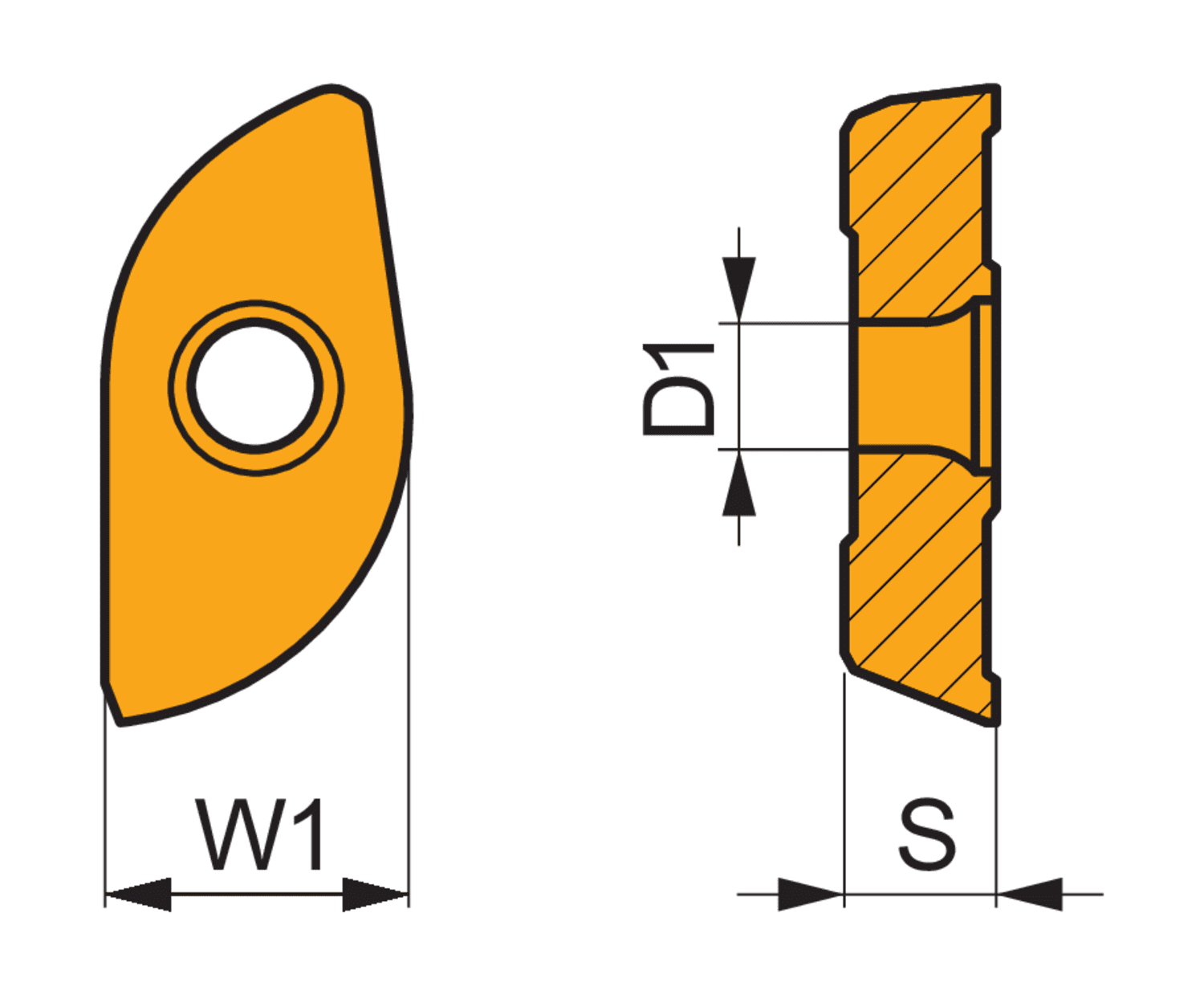

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10.7 |
| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 2.38 |
| Insert Width (Mm.) | 12 |
| Max Depth of Cut (In.) | 0.421 |
| Coating | M8345 |
