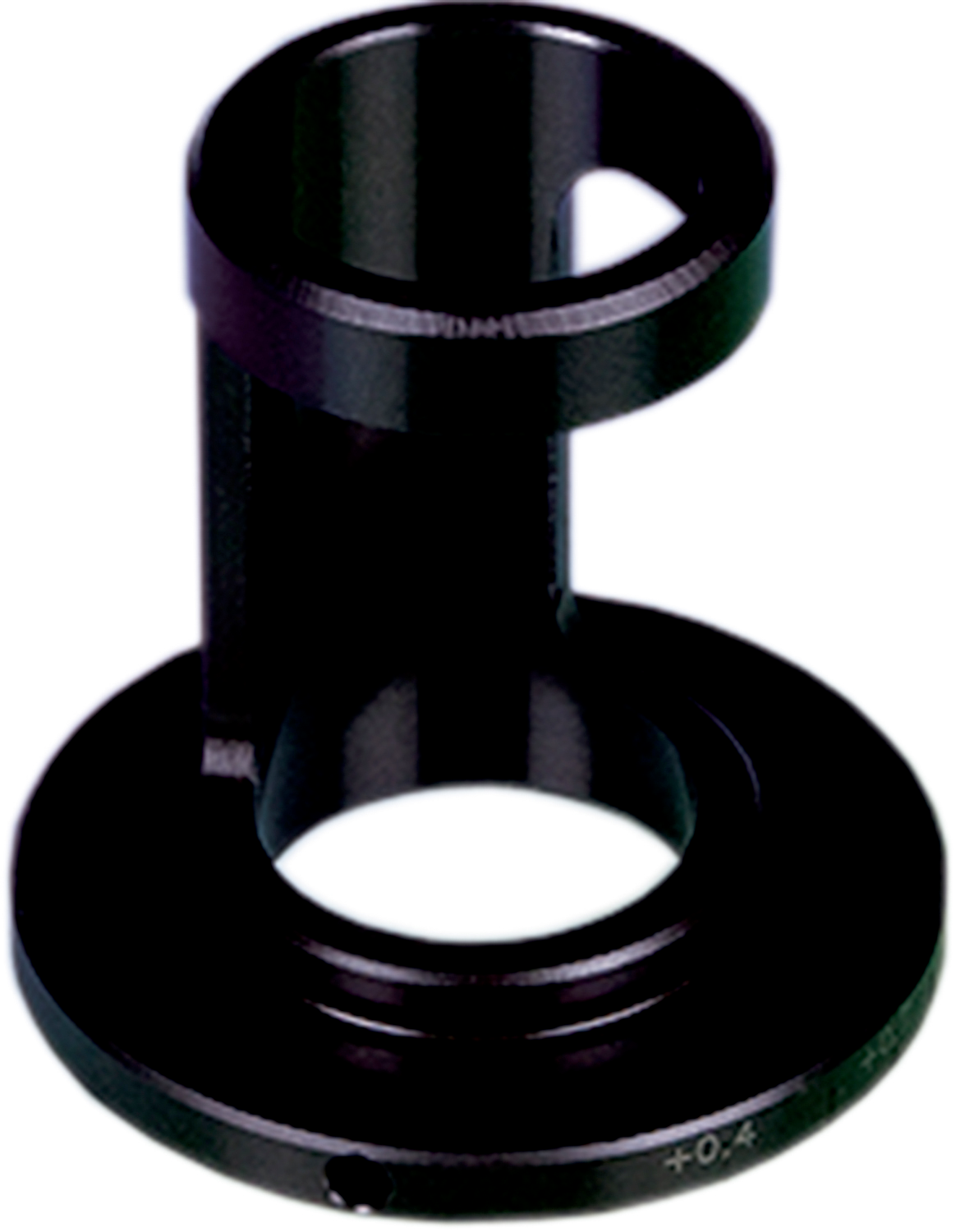

Indexable Drill - Adjustment Sleeve EP405085-F

• Ordering Code ANSI: EP405085-F

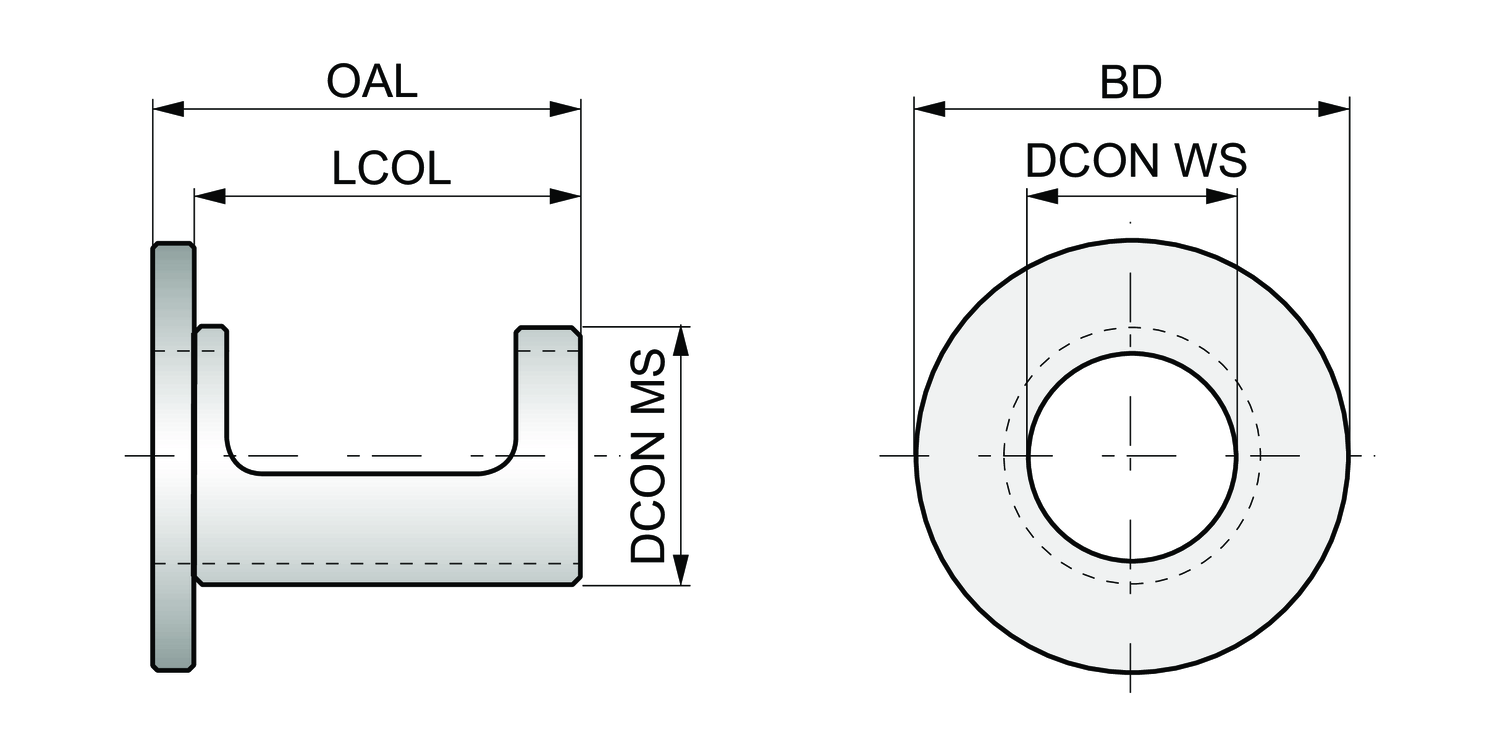

• Body Diameter - inch (BD) 2.992 inch
• Connection Diameter - inch (DCON MS) 1.9685 inch
• Connection Diameter workpiece side - inch (DCON WS) 1.5748 inch
• Overall Length - inch (OAL) 3.346 inch
• Protruding Length - inch (LPR) 0.197 inch
• Connection text machine side (STMS) W50
• ISO: EP405085-F
• Net weight: 250 grams
• Gross weight: 392.3 grams
• Product number (SAP) 86041797
• EDP Number: 8258037
