Drilling insert to fit the peripheral pocket of PRAMET 80.D indexable drills within a diameter range from 1.102 up to 1.339", D9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P35 and M15-M30 with SD geometry for machining of steel and stainless-steel
- Product Name ISO: SCET 09T308-SD:D9335
- Ordering Code ANSI: SCET 09T308-SD:D9335
- EDP Number: 6920800
- Coating: D9335
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

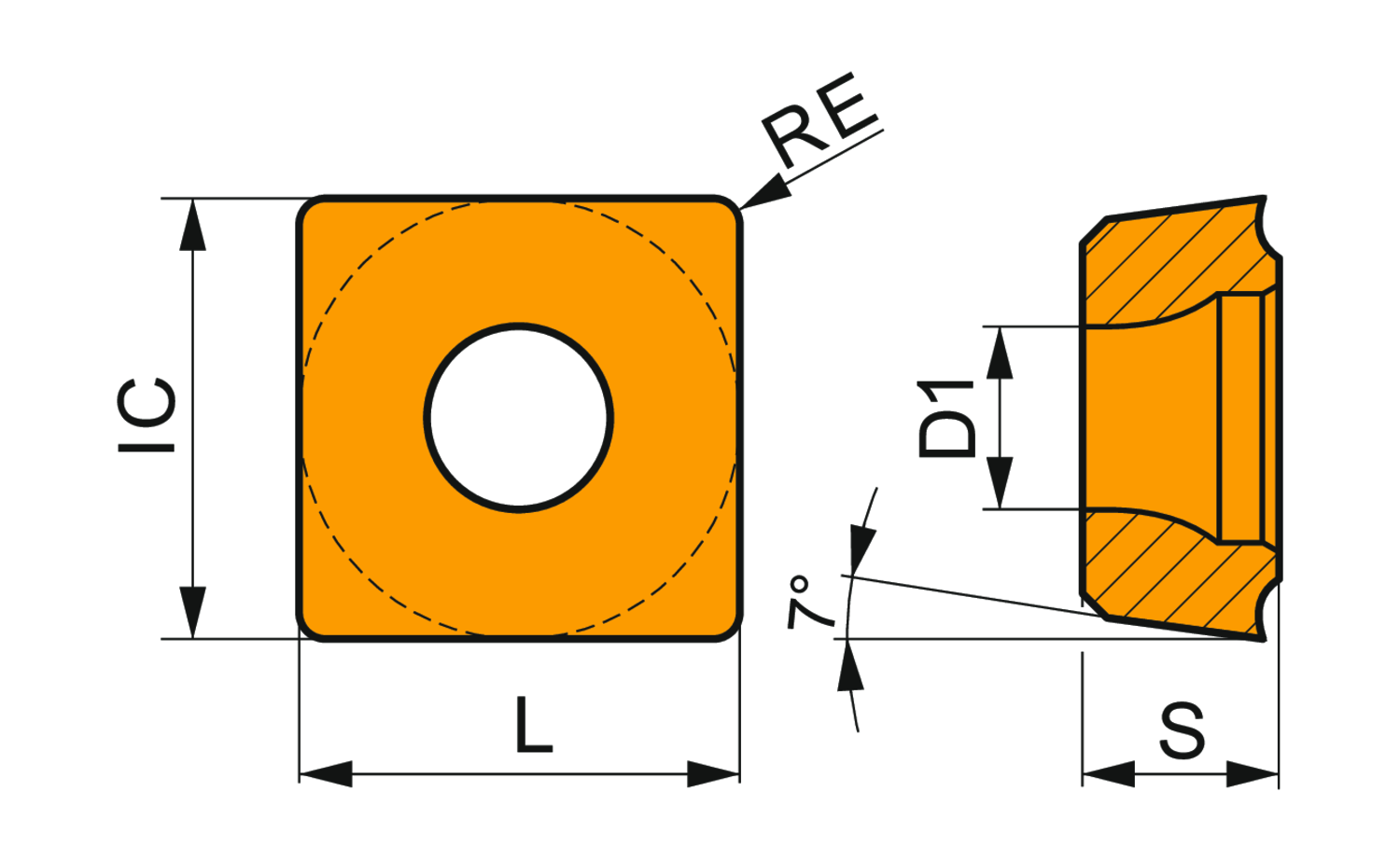

| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Coating | D9335 |
