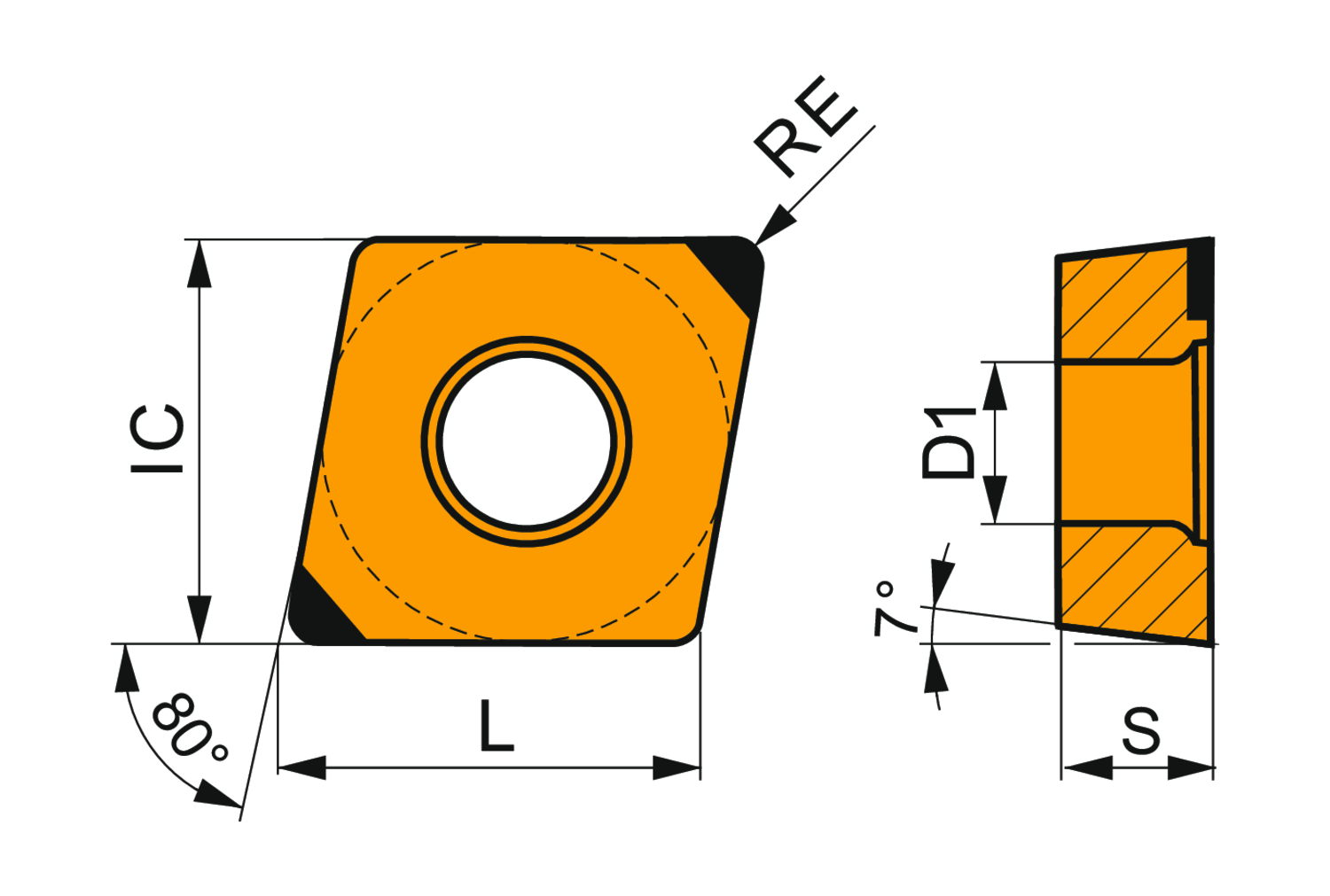

Insert for hard turning with 2 CBN tipped corners on one-side, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class-G, rounded cutting edges, in grade TB310, an uncoated cubic boron nitride within ISO range H01-H10, for high-speed machining of hardened materials
- Product Name ISO: CCGW 060204E-B:TB310
- Ordering Code ANSI: CCGW 21.51E:TB310
- EDP Number: 6755919
- Coating: TB310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.7 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.106 |
| Insert Geometry | Positive |
| Coating | TB310 |
