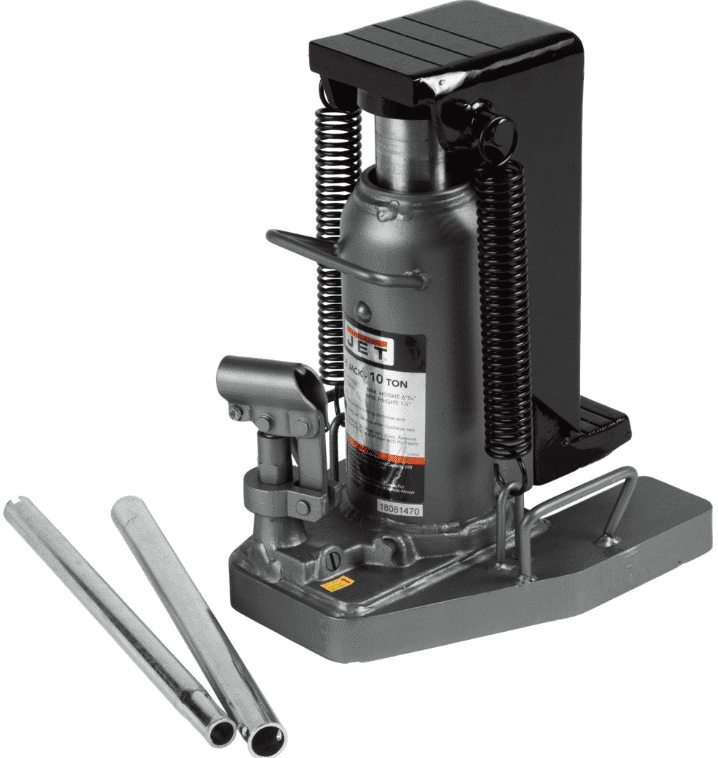

JTJ-10ST, 10 Ton-Hydraulic Toe Jack
- Dual purpose jack designed for low or high clearances increases versatility
- Overload Protection valve prevents lifting loads past maximum capacity
- Electric welded bases and cylinders virtually eliminating leaks for proven reliability
- High or low extreme temperature fluxuations do not affect jack performance increasing durability
- Heat treated piston resists corrosion
- Convenient swivel socket for multi-directional use
- Lifting, pushing, spreading, bending, pressing or straightening capabilities for multi-function use
- Pump handle included
- Complies with ANSI/ASME B30.1 Standards
| Base Dimensions (LxW)(In.) | 11-1/4 x 9-1/2 |
| Load Capacity (Tons) | 10 |
| Rated Toe Capacity (Tons) | 10 |
| Rated Head Capacity (Tons) | 14 |
| Toe Minimum Height (In.) | 1-7/32 |
| Toe Maximum Height (In.) | 6-15/16 |
| Toe Lift (In.) | 5-23/32 |
| Head Minimum Height (In.) | 12-7/8 |
| Head Maximum Height (In.) | 18-9/16 |
| Toe Size (LxW)(In.) | 2-5/7 x 3-2/7 |
| Weight (Lbs.) | 81 |
