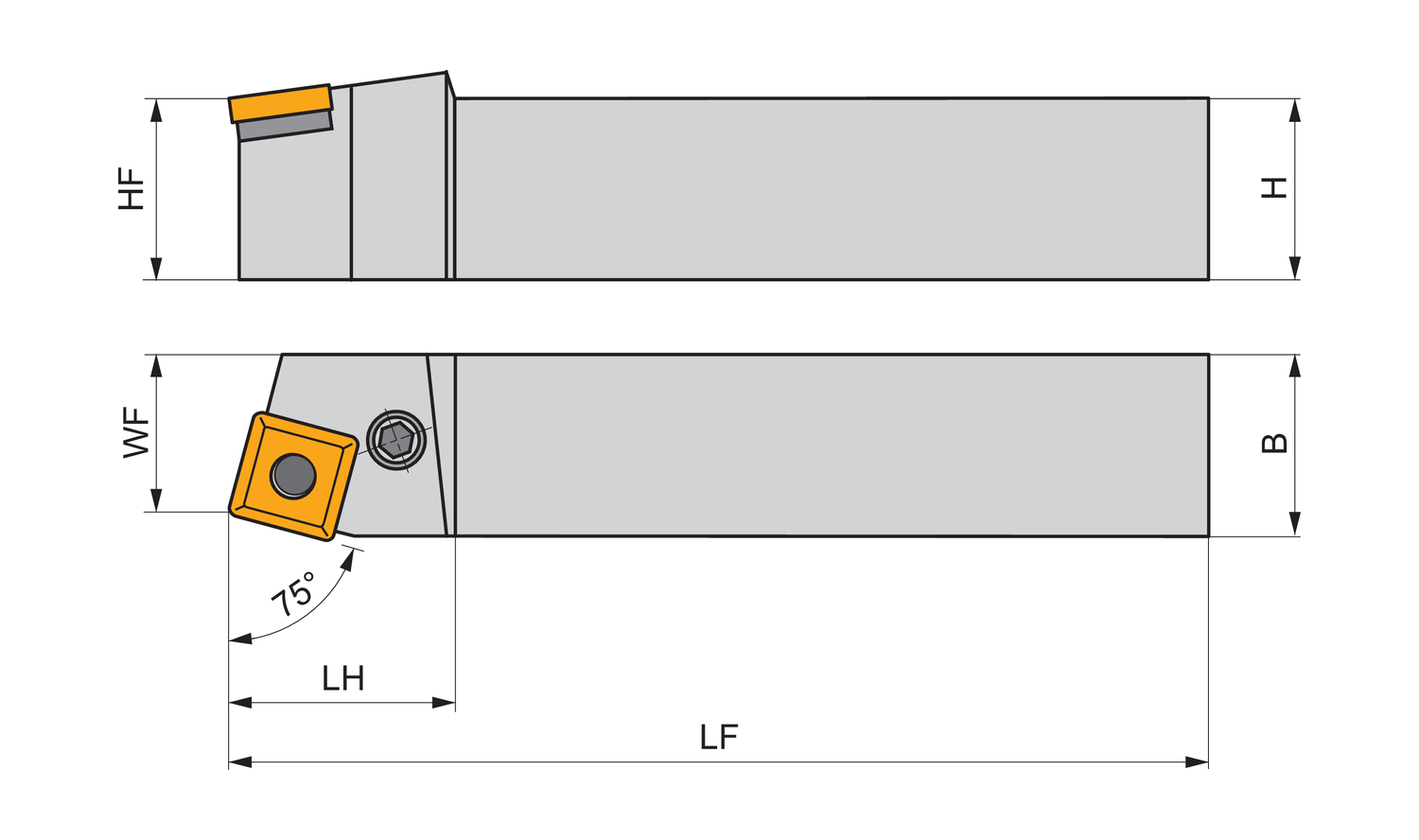

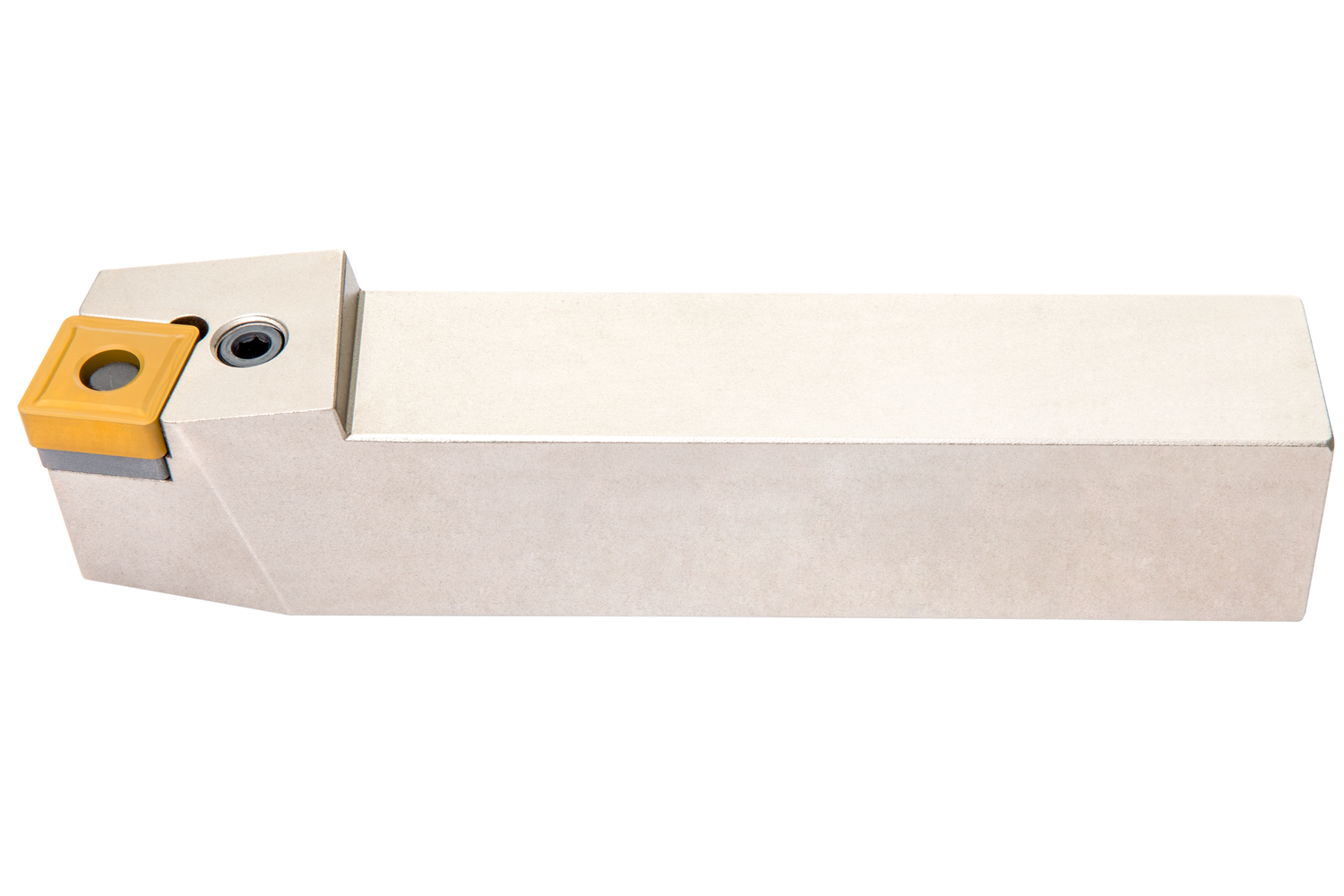

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 25.4mm, 12mm thick (ISO designation SN.. 2512.. ), right hand 75° side cutting with straight shank, 40mm tool height x 40mm width x 250mm long for taper turning and longitudinal turning without shoulder

• Product Name ISO: PSBNR 4040 S 2512
• Ordering Code ANSI: PSBNR 4040 S 2512
• EDP Number: 8291185
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
