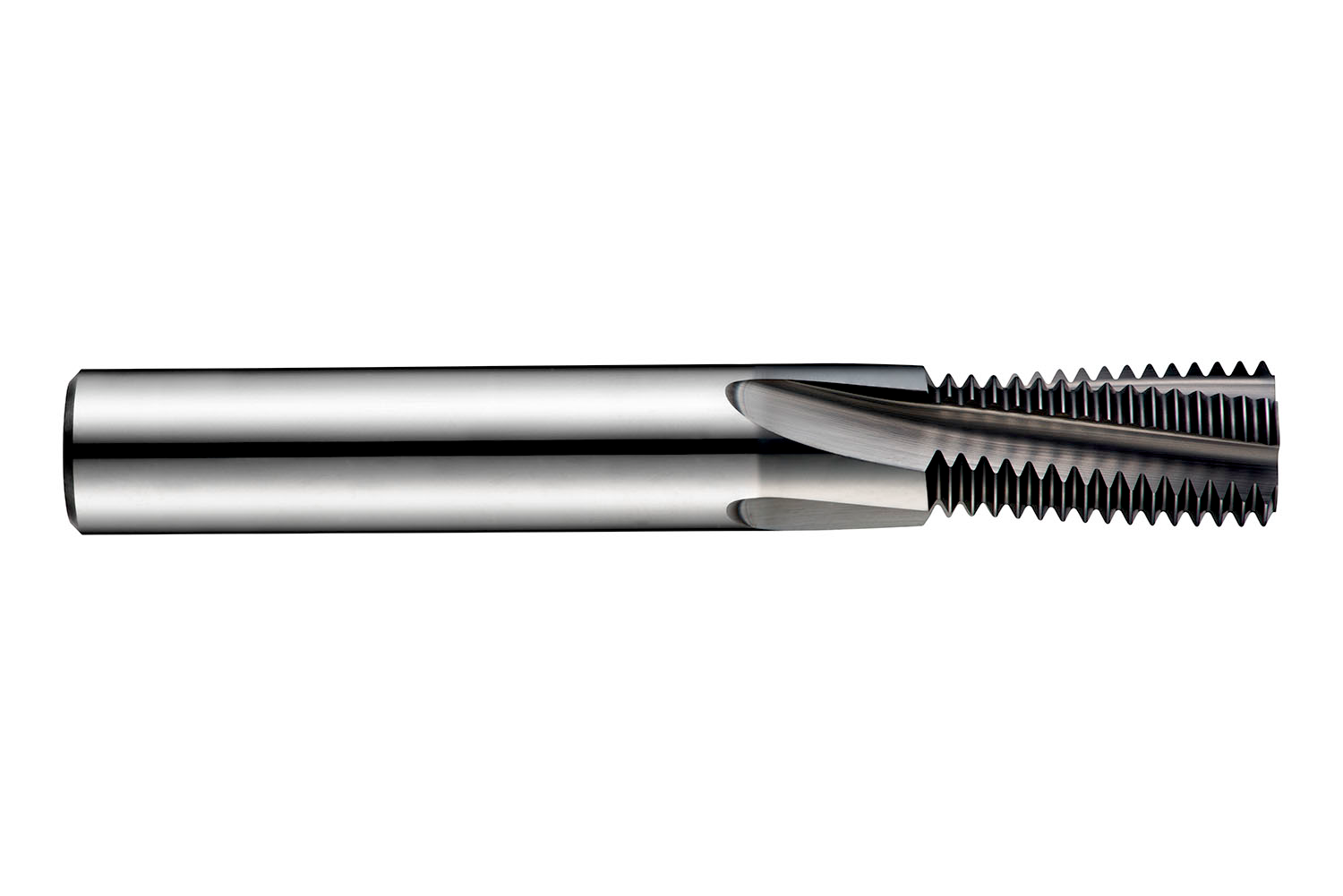

Thread milling cutter, for ISO-Metric Fine thread = M16 with 1.50 mm pitch, dimensions according to DORMER standard with 5 flutes, 14mm cutting diameter and 14mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 26mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron
- Product Name ISO: J22014.0X1.5
- Ordering Code ANSI: J22014.0X1.5
- EDP Number: 46821317
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |

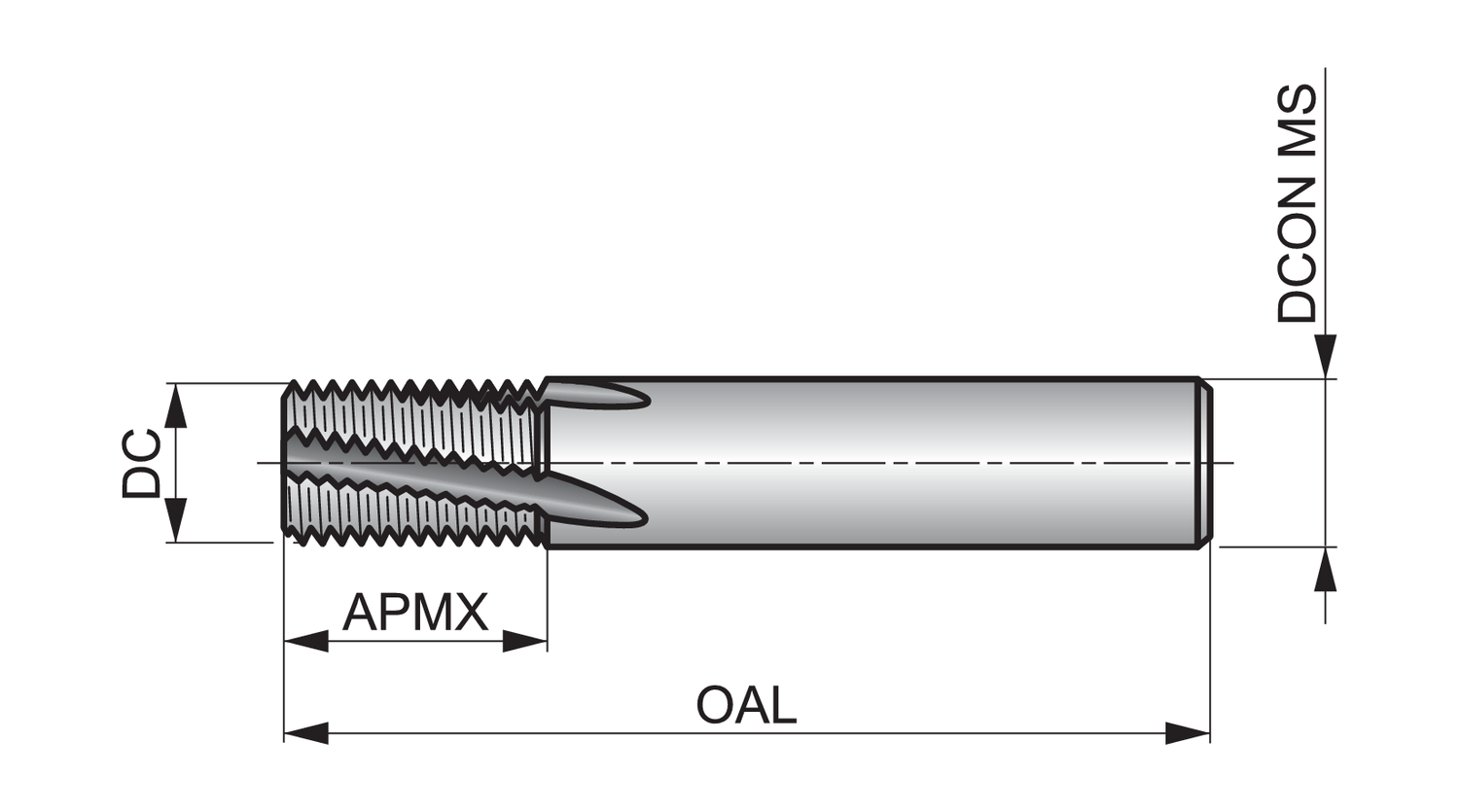

| Cutting Diameter (Mm.) | 14 |
| Cutting Diameter (In.) | 0.5512 |
| Depth of Cut Maximum (Mm.) | 26 |
| Connection Diameter (Mm.) | 14 |
| Overall Length (Mm.) | 83 |
| Connection Diameter (In.) | 0.5512 |
| Overall Length (In.) | 3.2677 |
| Material Code | HM |
| Coating | Alcrona Pro |
| Shank | Cylindrical Shank DIN 6535 HA |
| Flute Count | 5 |
| Thread Form | MF - Metric Fine |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | M16 |
