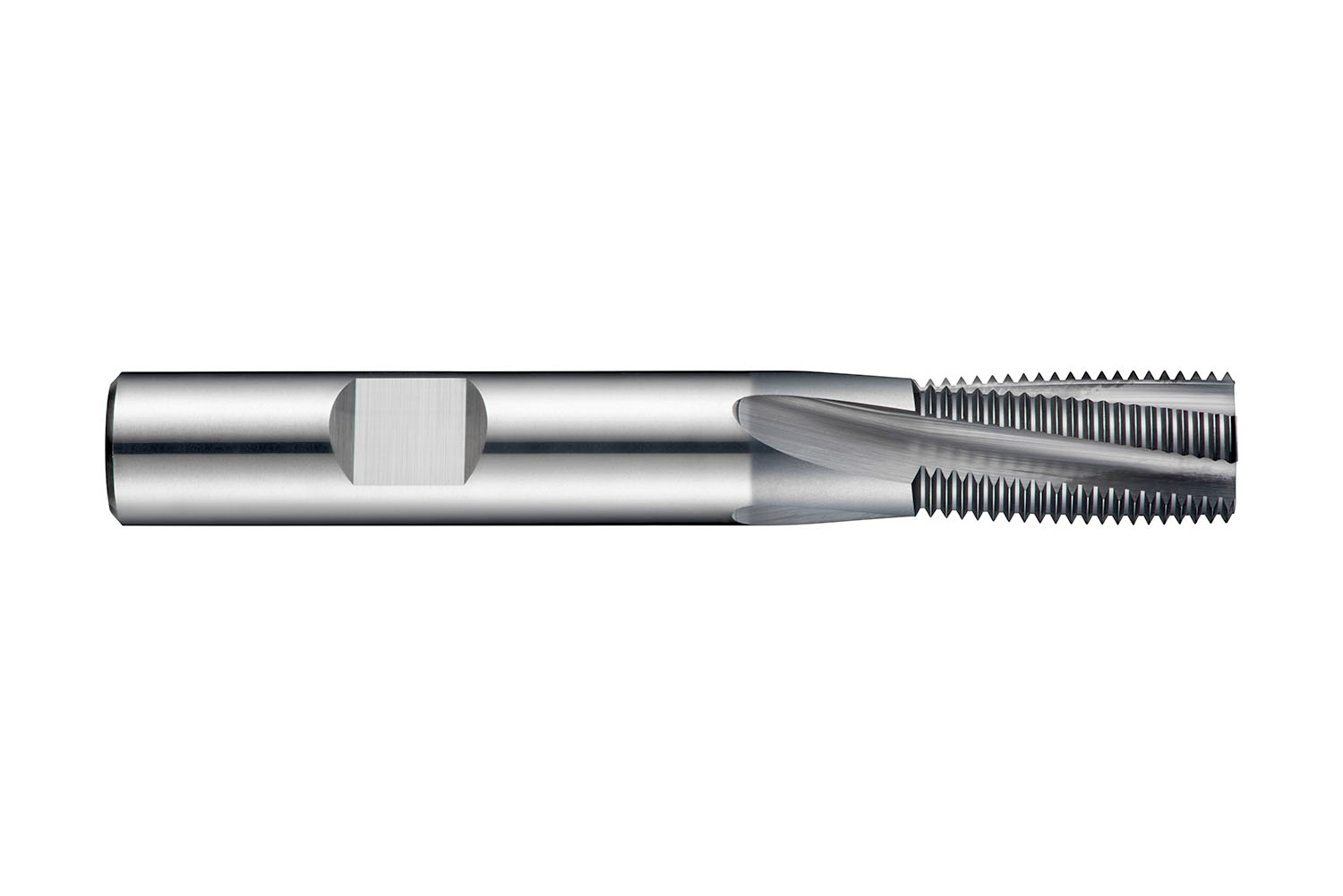

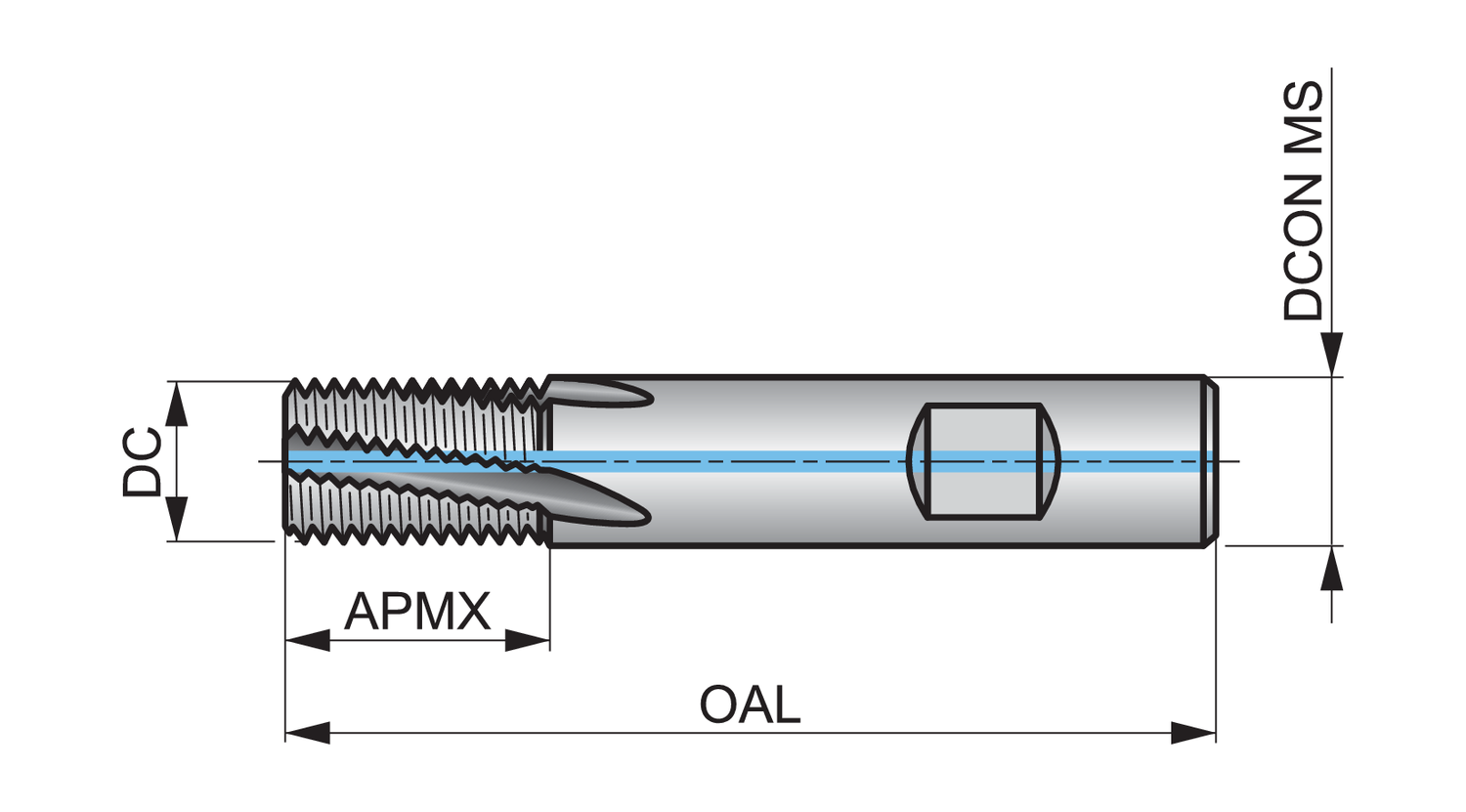

Thread milling cutter, for ISO-Metric Fine thread = M14 with 1.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 12mm cutting diameter and 12mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys and Co-based high-temperature alloys, chilled cast-iron

• Product Name ISO: J22512.0X1.0
• Ordering Code ANSI: J22512.0X1.0
• EDP Number: 46821332
• Coating: Alcrona Pro
• Material Code (BMC): HM
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
