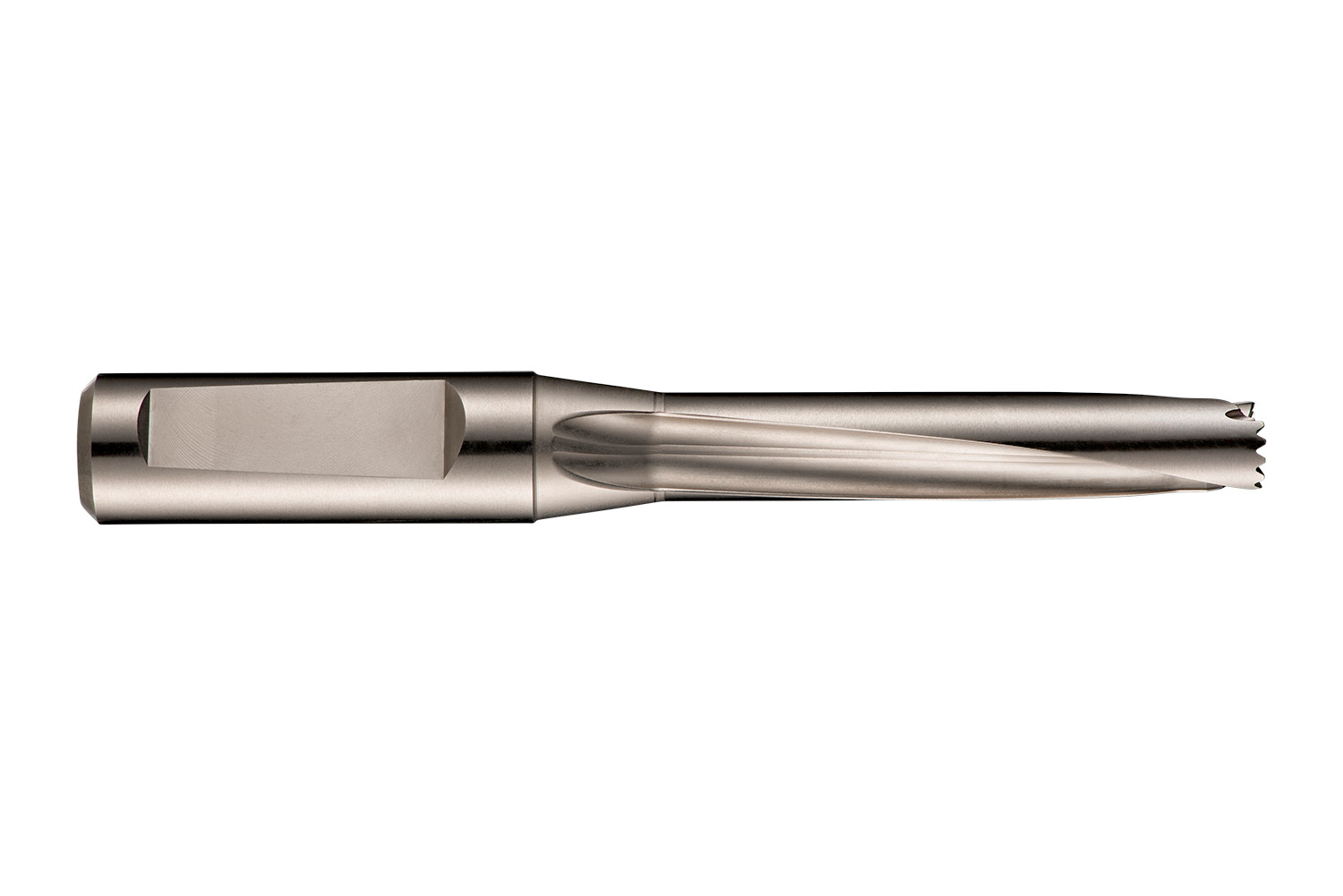

Replaceable head drill body HYDRA with DIN 6535HB NC weldon shank, size 35.0mm with an overall length of 291.5mm and flute length of 196.5mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 34 up to 35mm
- Product Name ISO: H85535.0
- Ordering Code ANSI: H85535.0
- EDP Number: 46111415
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Connection Diameter (Mm.) | 40 |
| Overall Length (Mm.) | 291.5 |
| Usable Length (Mm.) | 196.5 |
| Shank Length (Mm.) | 70 |
| Connection Diameter (In.) | 1.5748 |
| Overall Length (In.) | 11.4764 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
