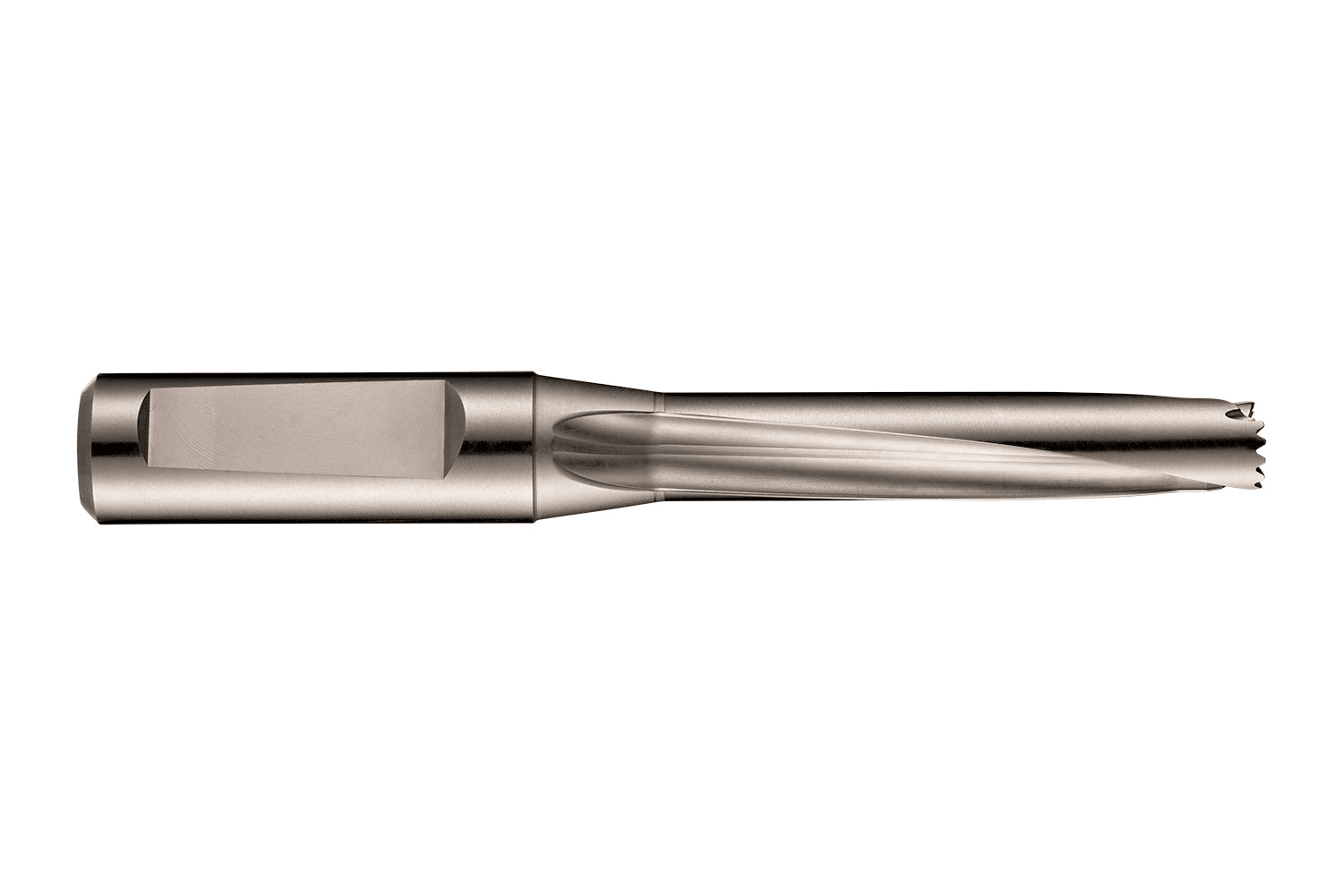

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 31/32" with an overall length of 220.2mm and flute length of 135.2mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.9375 (15/16) up to 0.9688" (31/32)
- Product Name ISO: H85531/32
- Ordering Code ANSI: H85531/32
- EDP Number: 0034859
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

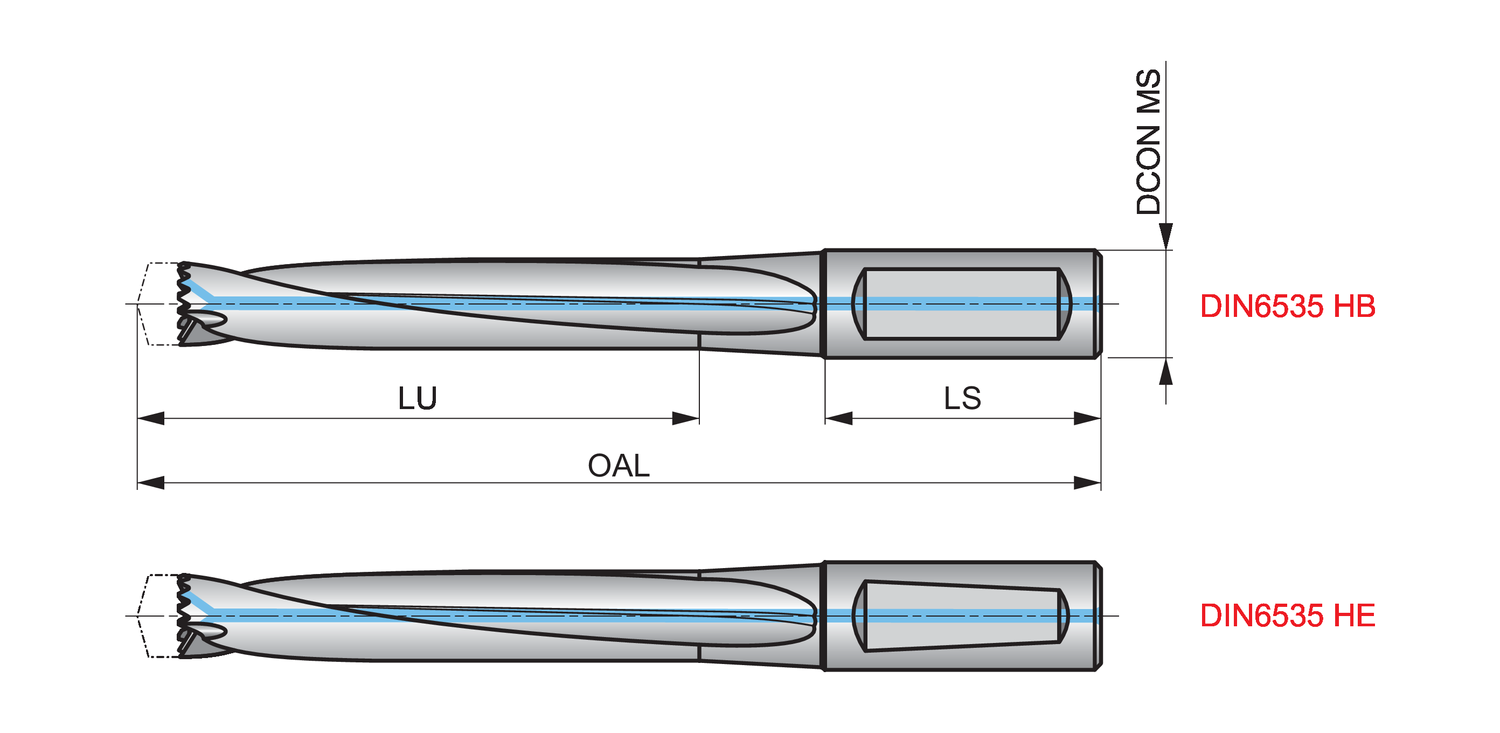

| Connection Diameter (Mm.) | 25.4 |
| Overall Length (Mm.) | 220.2 |
| Usable Length (Mm.) | 135.2 |
| Shank Length (Mm.) | 60 |
| Connection Diameter (In.) | 1 |
| Overall Length (In.) | 8.6693 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
