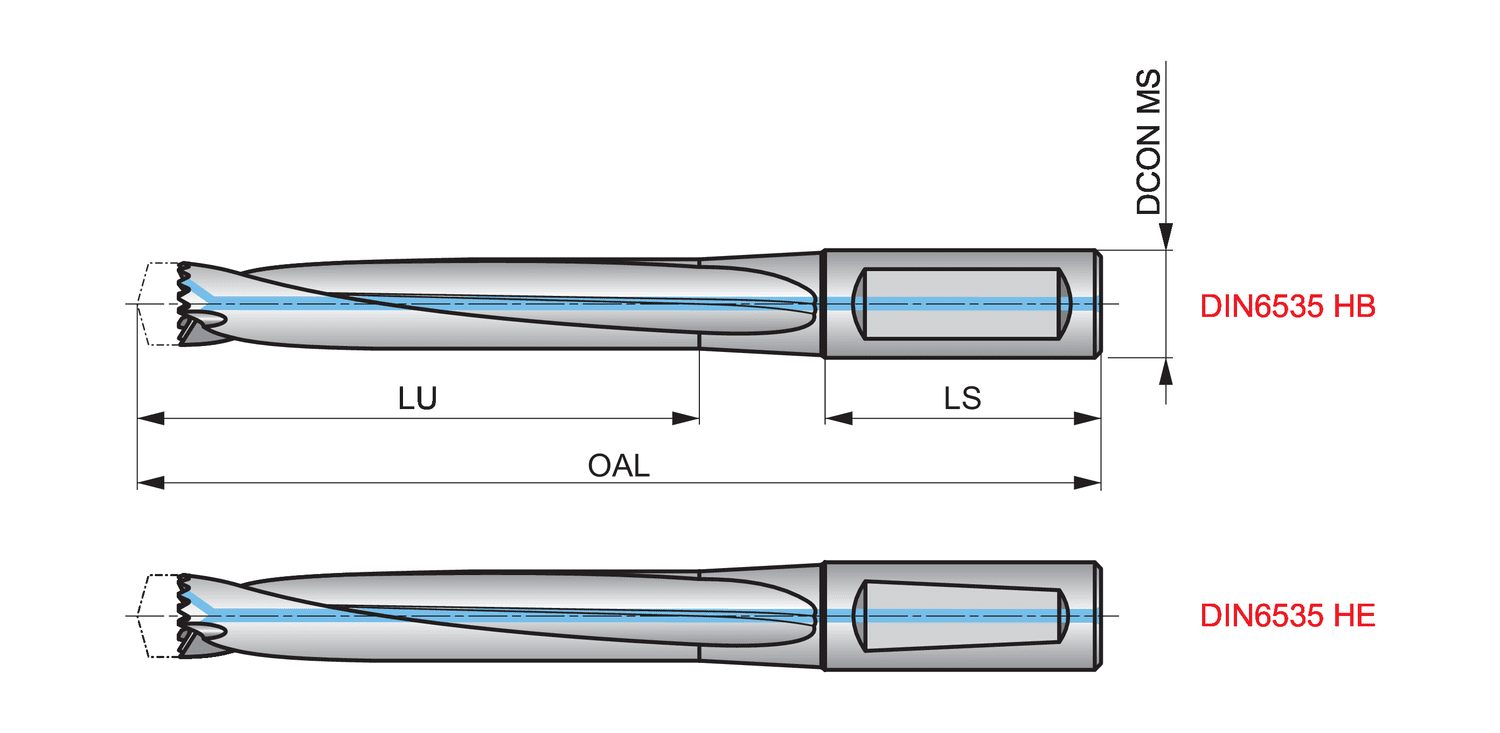

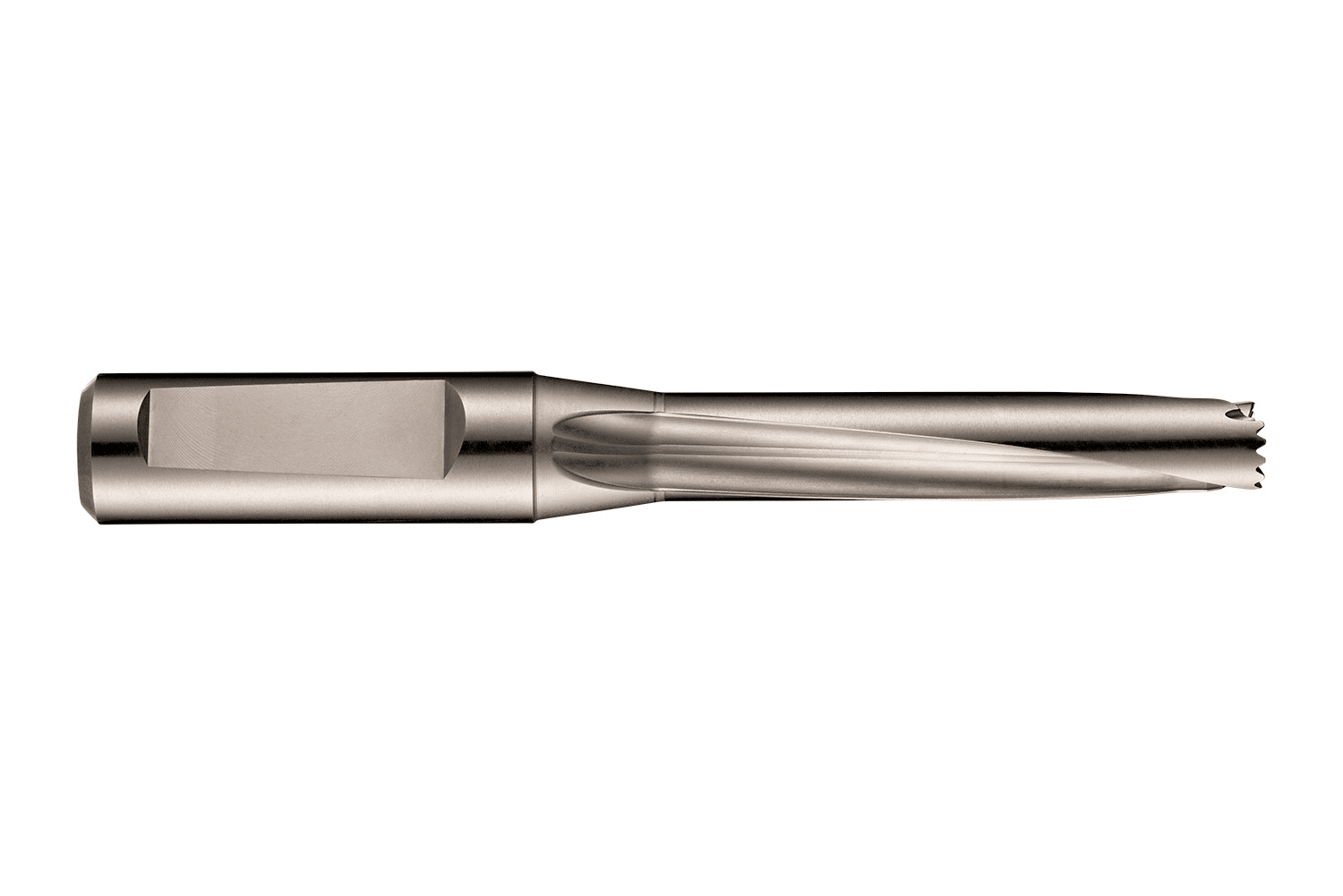

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 49/64" with an overall length of 191.5mm and flute length of 108.5mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.7323 up to 0.7677"
- Product Name ISO: H85549/64
- Ordering Code ANSI: H85549/64
- EDP Number: 0034798
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 25.4 |
| Overall Length (Mm.) | 191.5 |
| Usable Length (Mm.) | 108.5 |
| Shank Length (Mm.) | 56 |
| Connection Diameter (In.) | 1 |
| Overall Length (In.) | 7.5394 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
