Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 9/16" with an overall length of 116.5mm and flute length of 52.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5315 up to 0.5709"
- Product Name ISO: H8539/16
- Ordering Code ANSI: H8539/16
- EDP Number: 0033074
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 19.05 |
| Overall Length (Mm.) | 116.5 |
| Usable Length (Mm.) | 52.5 |
| Shank Length (Mm.) | 48 |
| Connection Diameter (In.) | 0.75 |
| Overall Length (In.) | 4.5866 |
| Material Code | HSS |
| Coating | Nickel Plated |

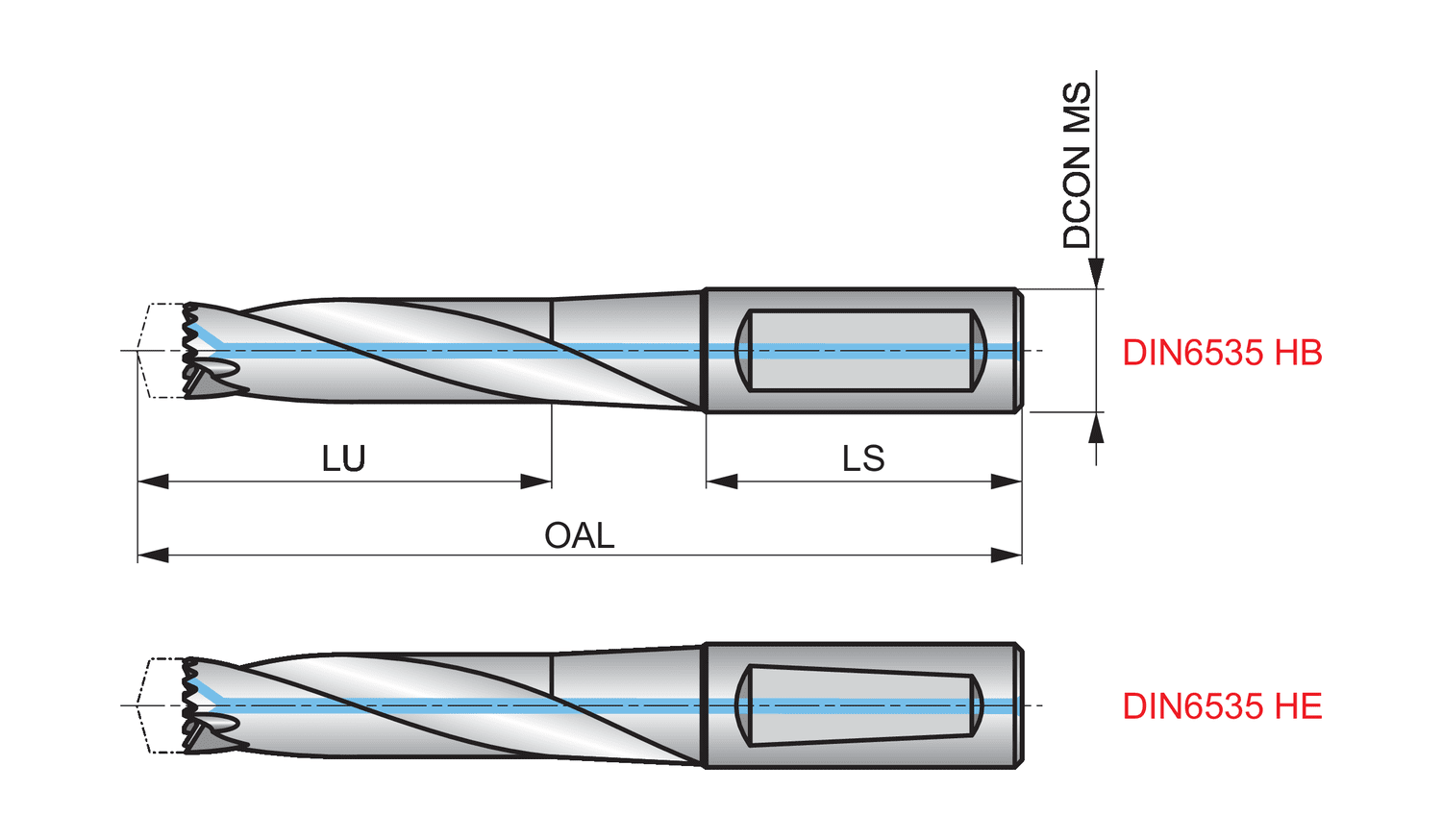

| Shank | Cylindrical Shank DIN 6535 HE / HB |
| Cutting Direction | Right |
| Cooling | 1 |
