Rounded tree burr (F shape), diameter 1/2" with 1" length of cut, 2.3/4" overall length and 1/4" shank, carbide tipped with toughened and hardened steel shank and bright finish, FM single cut flute style with wide speced edges for multi-angle contouring, rounding of edges and cutting into hard to reach areas in wrought, cast aluminium and glass fibre reinforced polymers
- Product Name ISO: SF-50FM
- Ordering Code ANSI: SF-50FM
- EDP Number: 7466317
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

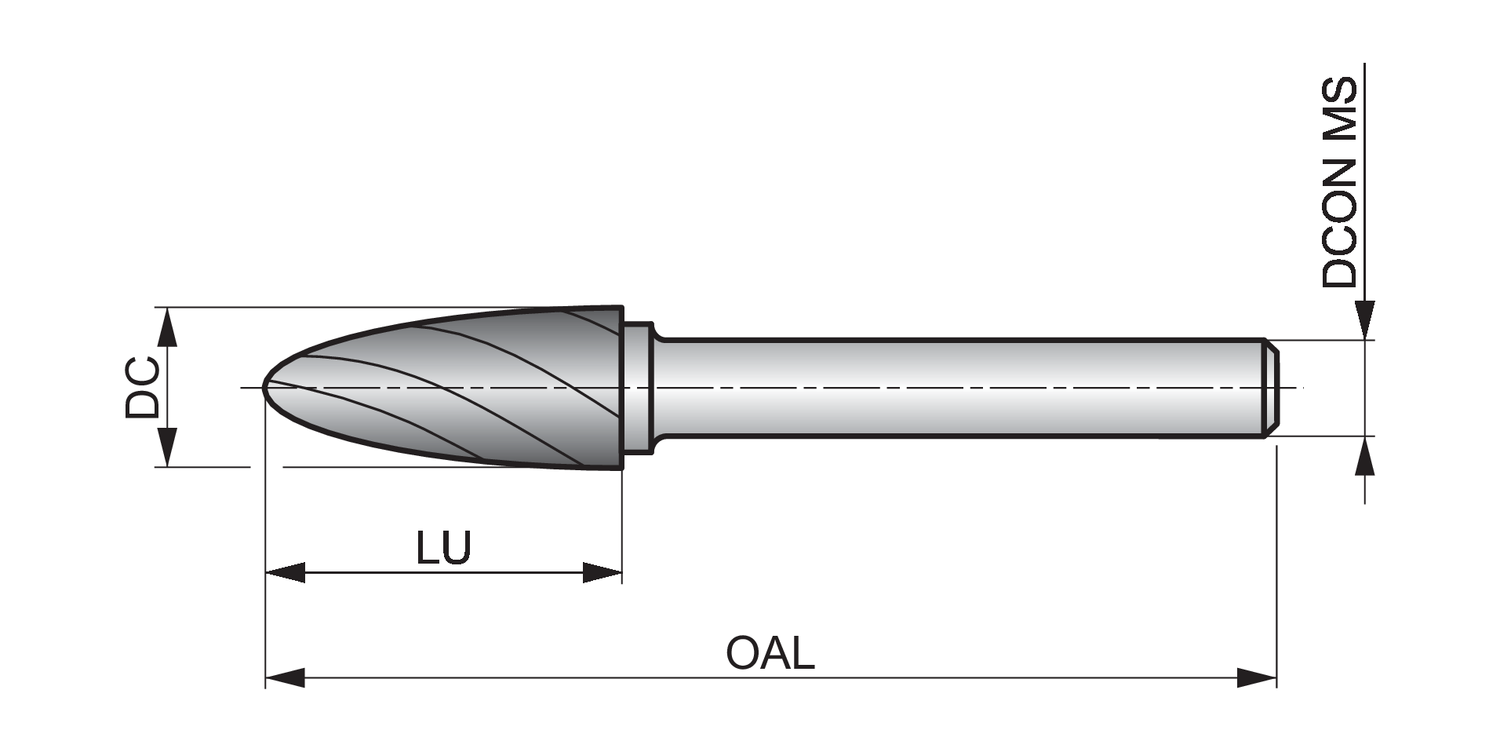

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 12.7 |
| Cutting Diameter (In.) | 0.5 |
| Cutting Diameter Fractional (In.) | 1/2 |
| Connection Diameter (Mm.) | 6.35 |
| Overall Length (Mm.) | 69.85 |
| Connection Diameter (In.) | 0.25 |
| Overall Length (In.) | 2.75 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | F - Ball Nosed Tree Shape |
| Burr Type | Aluminium Cut Geometry |
