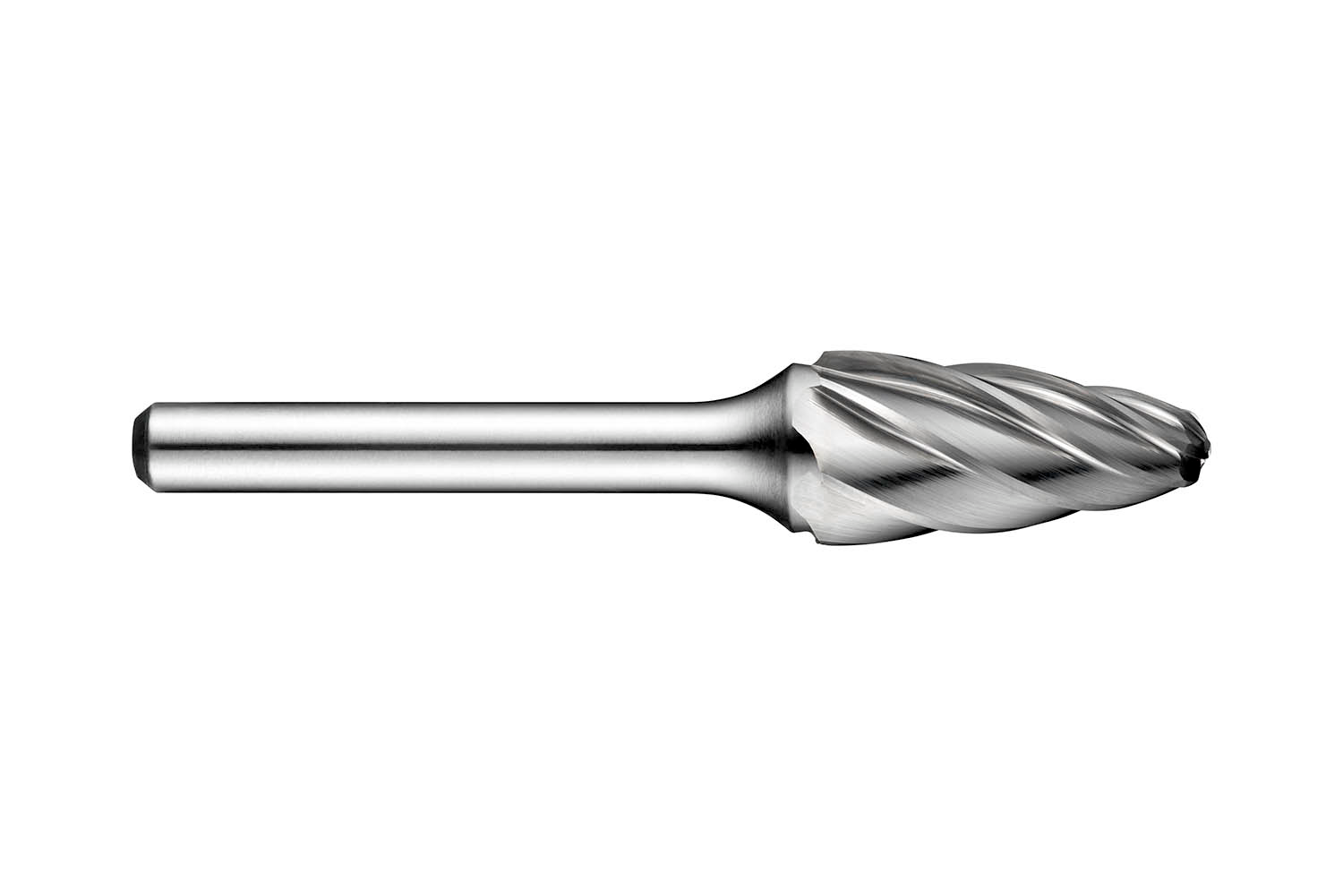

Rounded tree burr (F shape), diameter 6mm with 18mm length of cut, 50mm overall length and 6mm shank, solid carbide with bright finish, AL single cut flute style with wide spaced edged for multi-angle contouring, rounding of edges and cutting into hard to reach areas in wrought, cast aluminium and glass fibre reinforced polymers
- Product Name ISO: P8416.0X6.0
- Ordering Code ANSI: P8416.0X6.0
- EDP Number: 46814214
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

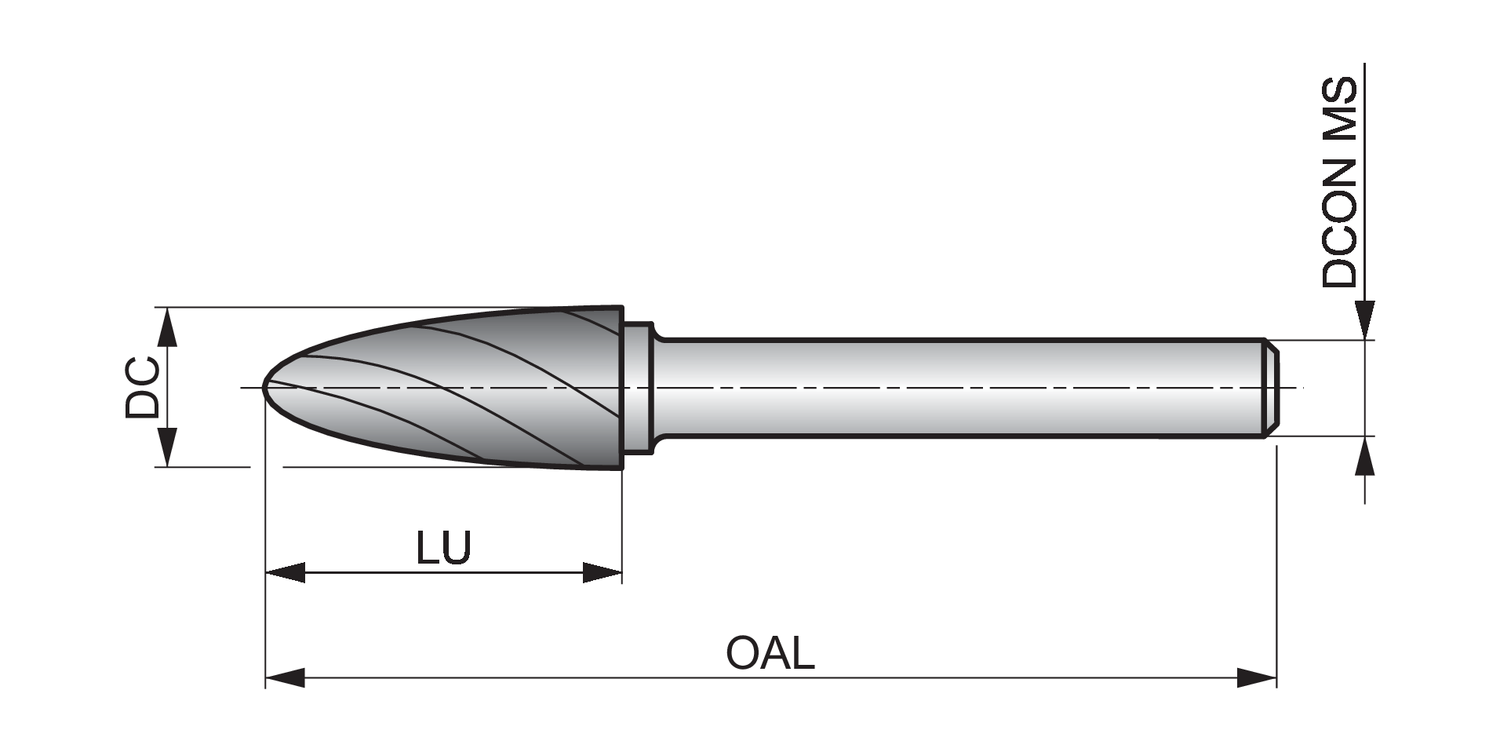

| Cutting Diameter (Mm.) | 6 |
| Cutting Diameter (In.) | 0.2362 |
| Connection Diameter (Mm.) | 6 |
| Overall Length (Mm.) | 50 |
| Usable Length (Mm.) | 18 |
| Connection Diameter (In.) | 0.2362 |
| Overall Length (In.) | 1.9685 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | F - Ball Nosed Tree Shape |
| Burr Type | Aluminium Cut Geometry |
