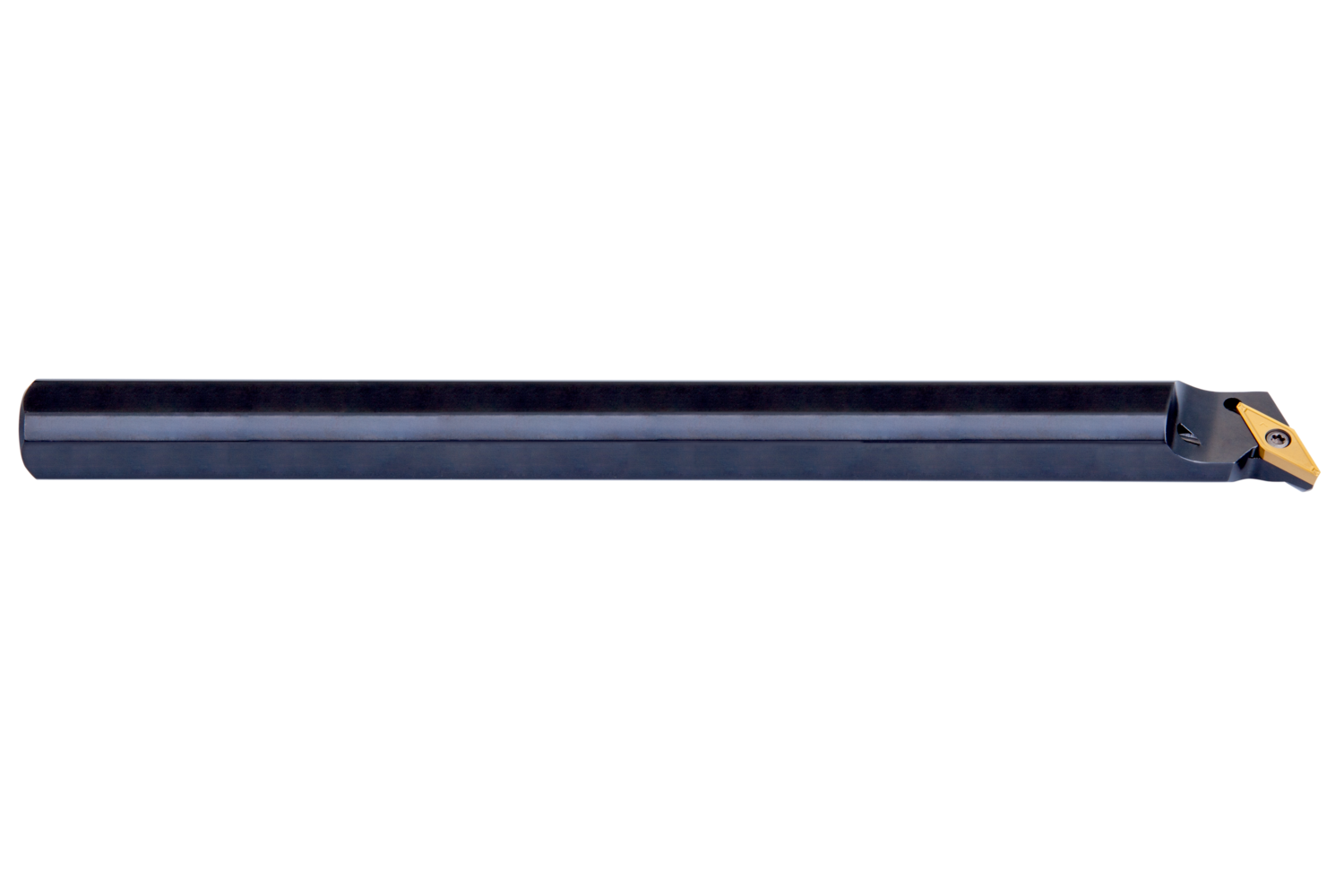

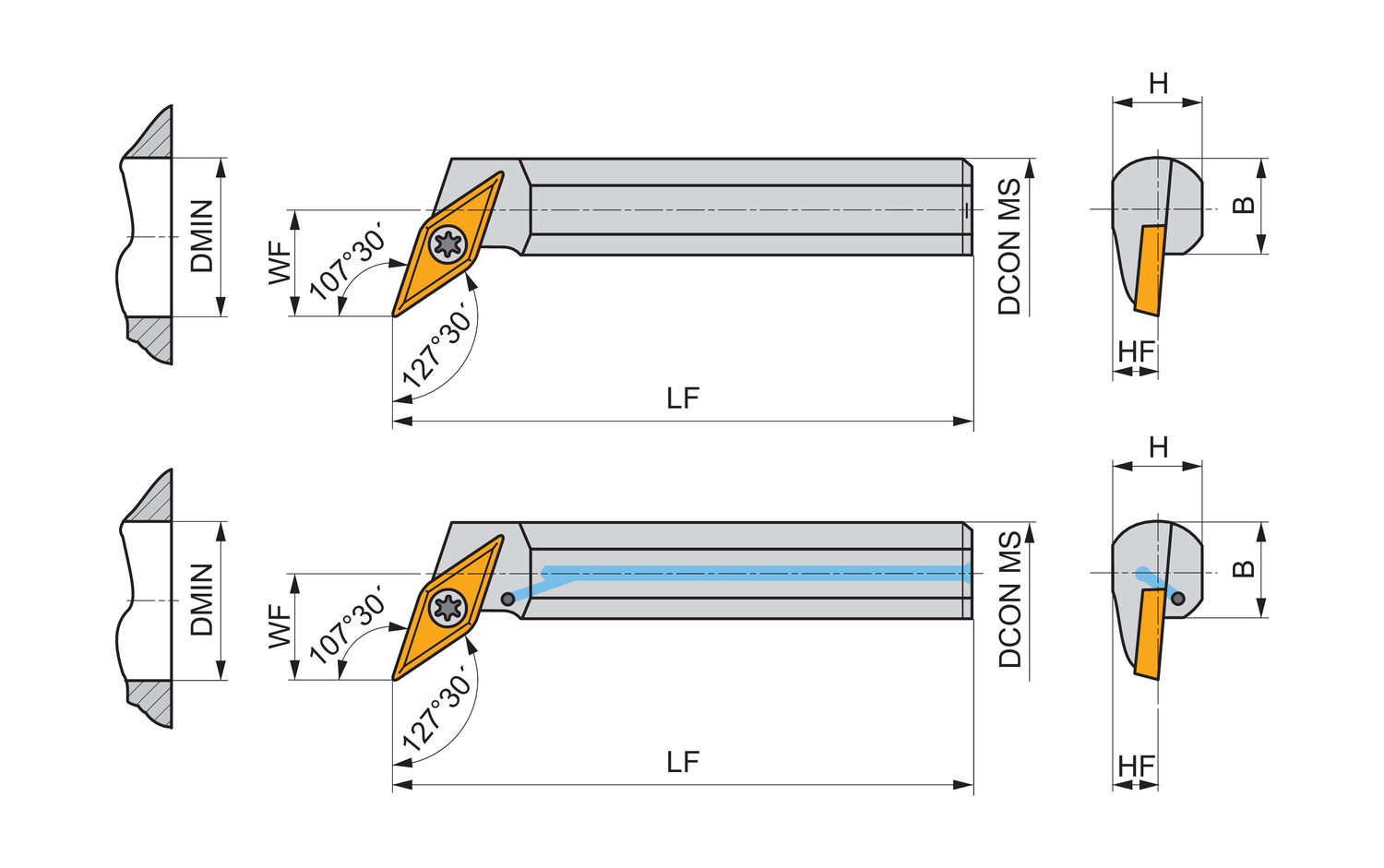

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 107°30' end cutting with off-set shank, steel with coolant hole, 16mm diameter x 200mm long for single and multi-directional copy boring

• Product Name ISO: A16R-SVQCL 13
• Ordering Code ANSI: A16R-SVQCL 13
• EDP Number: 6760919
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
