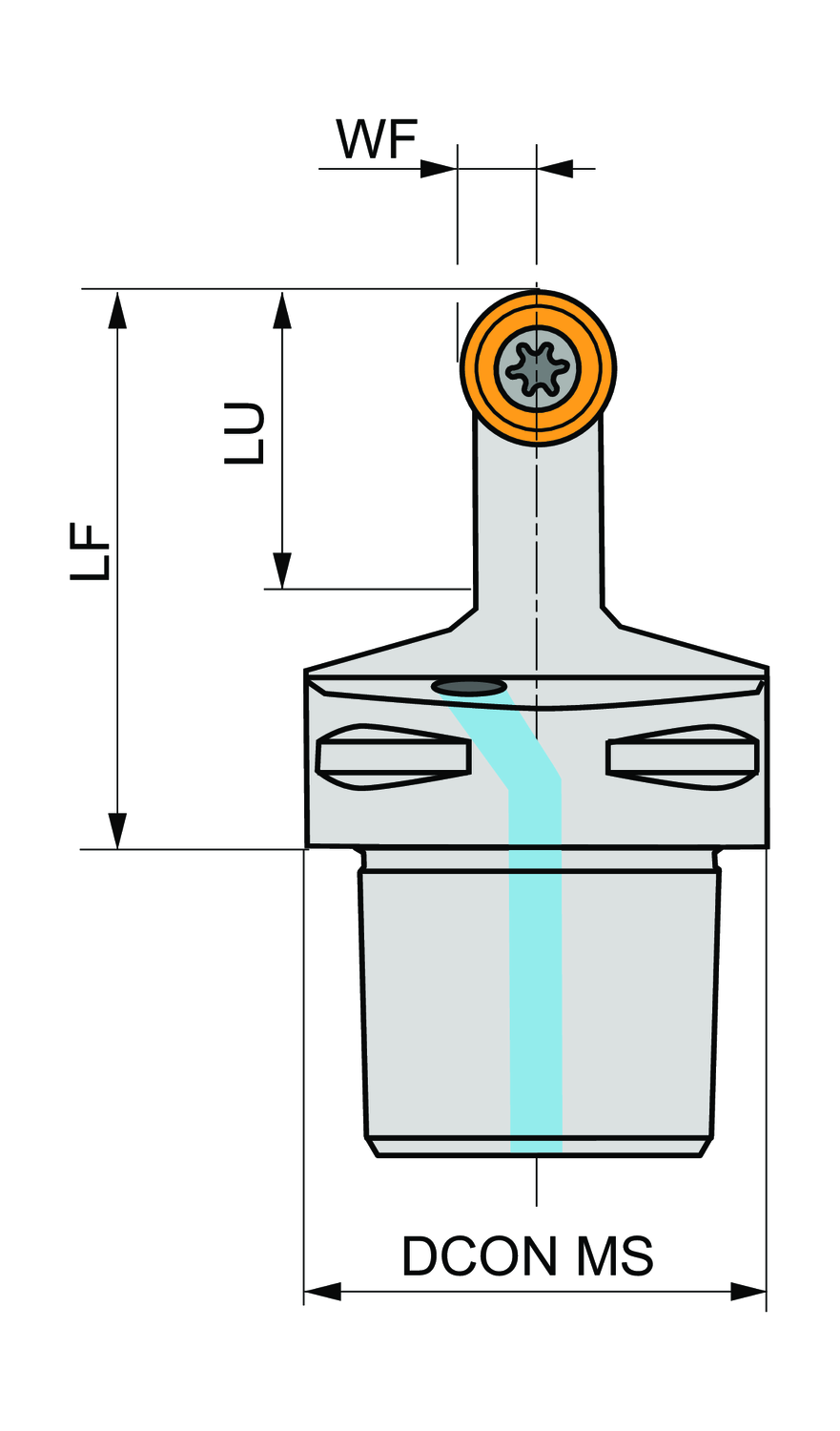

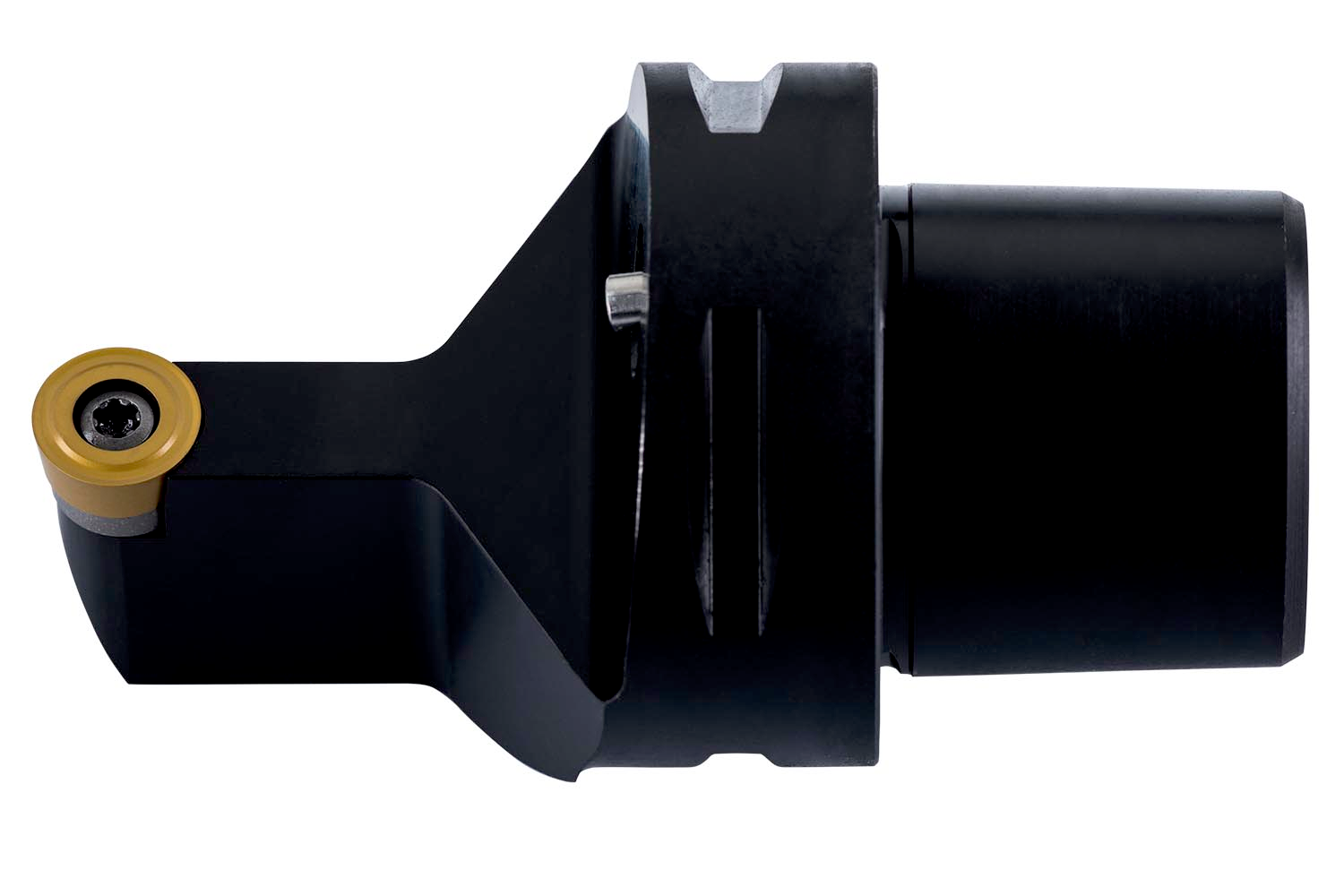

Screw clamp turning tool for holding a round positive insert with a diameter of 12mm, 4.76mm thick (ISO designation RC.. 1204MO ), neutral hand side and end cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

• Product Name ISO: C5-SRDCN-00060-12A
• Ordering Code ANSI: C5-SRDCN-00060-12A
• EDP Number: 7809843
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
