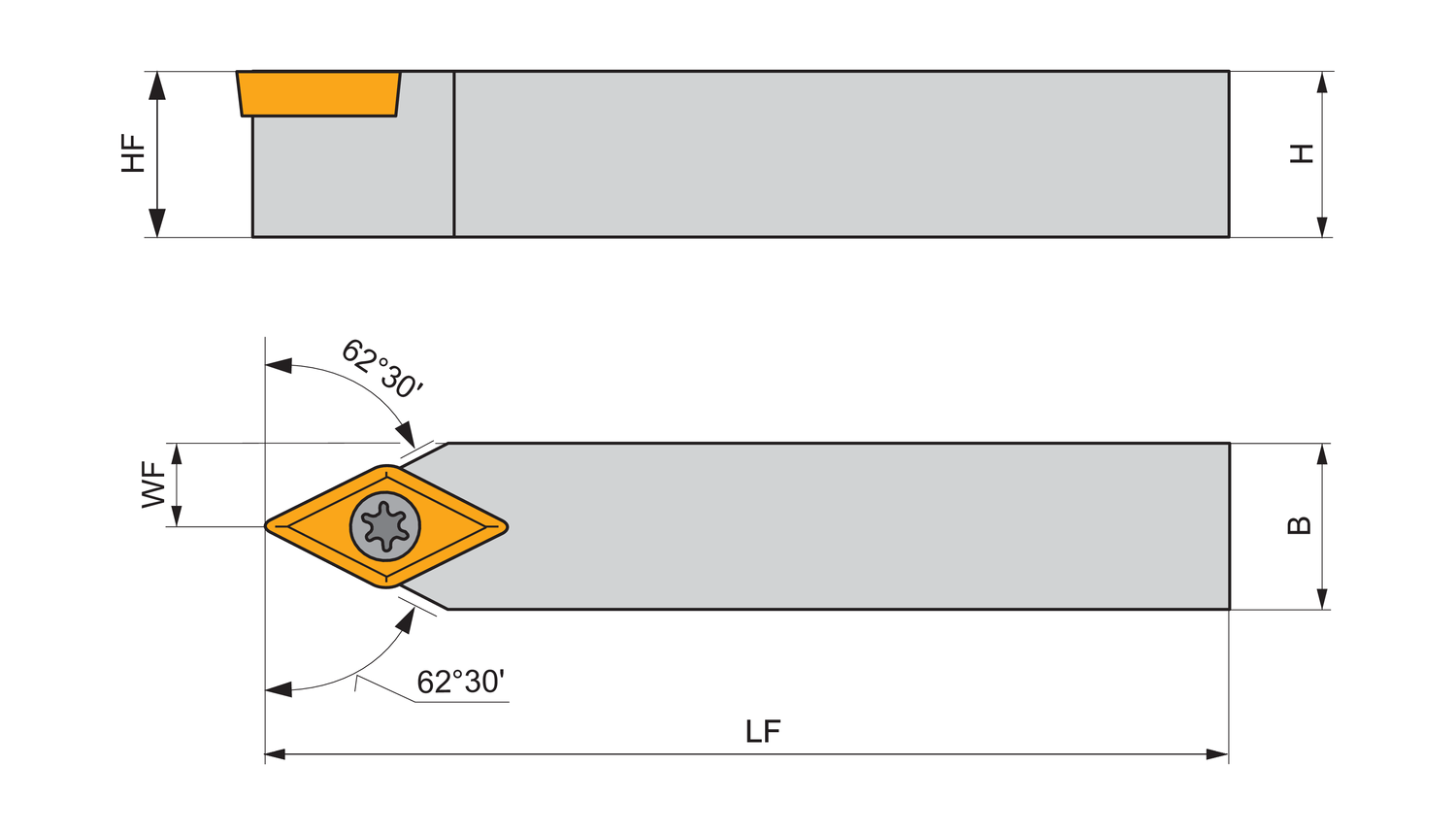

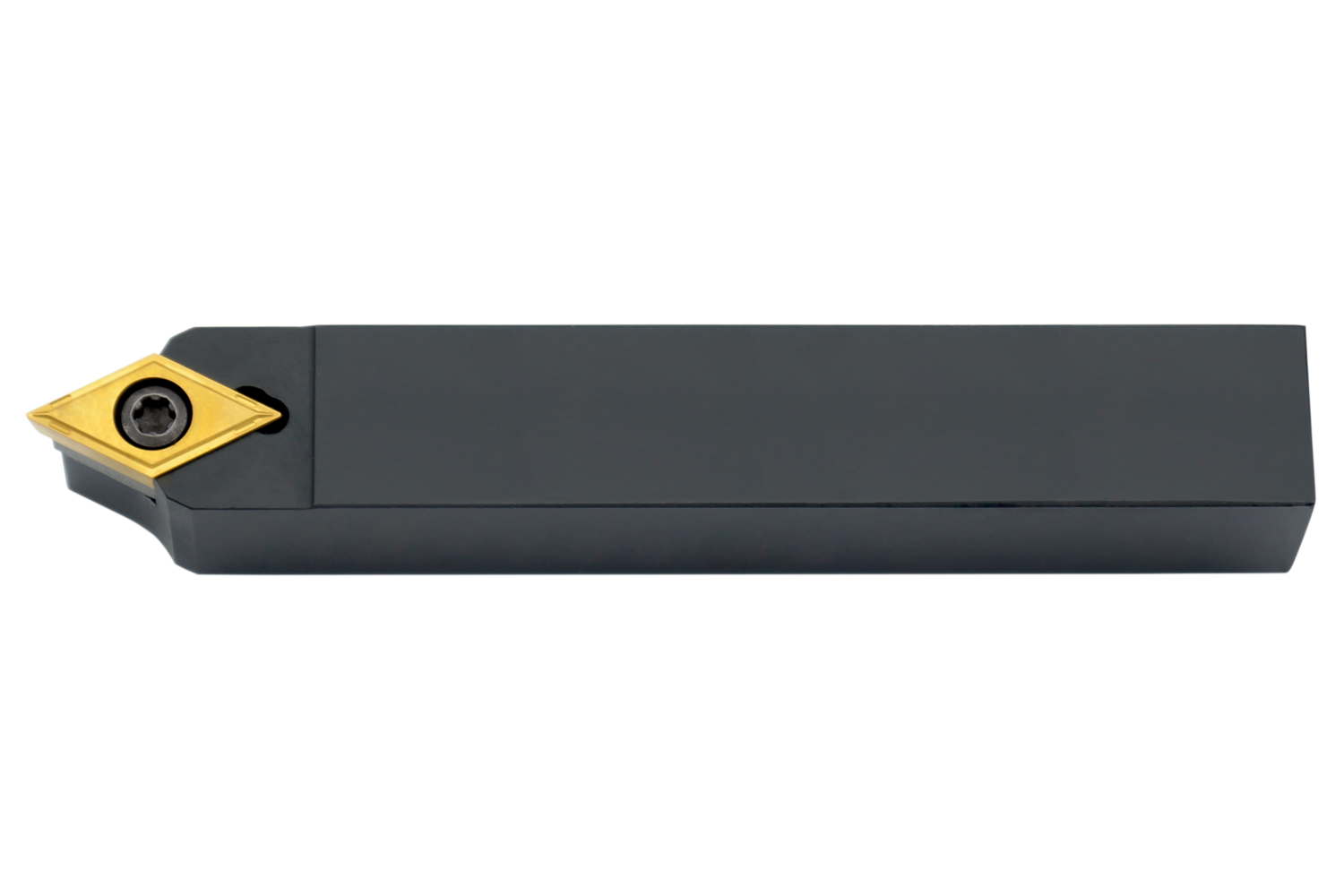

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation DC.. 32.5. ), neutral hand 62.5°, left and right side cutting, 5/8'' tool height x 5/8'' width x 4'' long for single and multi-directional copy turning

• Product Name ISO: SDPCN 10 3
• Ordering Code ANSI: SDPCN 10 3
• EDP Number: 6788671
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
