Polyurethane coating that insulates electrical equipment and seals out water and moisture. The red formula allows for visualization of equipment.
- Notes: This product DOES contain an agitator ball. The Clear Urethane Seal Coat does NOT contain an agitator ball. In testing Dielectric Strength AC current is used.
- Applications: On motor windings, terminals, bus bars, commutator ends, stator coils, and PC boards
| Container | Aerosol |
| Package Size (Wo.) | 16 |
| Net Fill Amount (Wo.) | 11 |
| Each Length (In.) | 2.63 |
| Each Width (In.) | 2.63 |
| Each Height (In.) | 7.75 |
| Each Weight (Lbs.) | 0.92 |
| Units Per Case | 12 |
| Case Length (In.) | 11.3 |
| Case Height (In.) | 8.6 |
| Case Weight (Lbs.) | 11 |
| Case Width (In.) | 8.4 |
| Pallet Length (In.) | 48 |
| Pallet Width (In.) | 40 |
| Pallet Height (In.) | 64.2 |
| Pallet Weight (Lbs.) | 1463 |
| Case Per Pallet | 133 |
| Eaches Per Pallet | 1596 |
| DOT Proper Shipping Name | Aerosols, Flammable, Limited Quantity |
| Class | 2.1 |
| UN ID No. | UN1950 |
| Flammability Level | III |
| NMFC Description & Class | Paint & Related Material, 149980-02 |
| Base Type | Oil Modified Urethane |
| NSN Number | 5970-01-032-1035 |
| RoHS Compliant | Yes |
| Halal Doc Name | No |
| Kosher Doc Name | No |
| Biodegradable | No |
| DfE Approvd | No |
| SNAP Approved | No |
| Dielectric Strength | 2,000 Volts/Mil |
| Evaporation Rate | Moderate |
| Plastic Safe | Yes |
| VOC Category | Aerosol Coating: Electrical Coating |
| Propellant | Hydrocarbon |
| UN/SPSC | 31211511 |
| ECCN Number | EAR99 |
| NAFTA Schedule B# | 3208.90.0000 |
| HMIS/NFPA Flammability Rating | 4 |
| HMIS/NFPA Health Rating | 2 |
| HMIS/NFPA Reactivity Rating | 0 |
| HMIS/NFPA PPE Rating | B |
| Appearance | Red Viscous Liquid |
| I 2 of 5 Code | 30078254184105 |
| Film Type | Dry |
| Odor | Solvent |
| Dry Time - Fully Dry | 72 Hours |
| Coverage | 20 to 25 Sq Ft |
| Removal (How To) | DRY paint with lacquer thinner/stripper.,Remove: WET paint with mineral spirits or terpentine |
| Residue | Yes |
| Ext. Tube | No |
| Dry Time - Tack Free | 15 to 30 Minutes |
| Boiling Point (F) | 118 |
| Flammability Class - CPSC | Extremely Flammable |
| Flash Point (F) | -4 |
| Freezing Point (F) | -245 |
| Spec Gravity Concentrate | 0.731 |
| Working Temp (F) | -90 to 250 |
| Shelf Life Years | 5 |
| Pounds/Gallon Concentrate | 6.09 |
There are no reviews yet
- 1005236E_SDS.pdf (SDS)
- 18410_TDS.pdf (TDS)
Customers who bought this item also bought
Zinc-It Instant Cold Galvanize, 13 Wt Oz
$13.60 excl tax

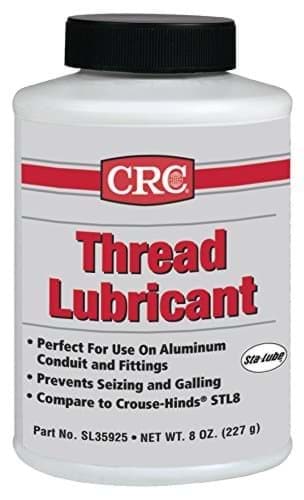

Thread Lubricant, 8 Wt Oz
