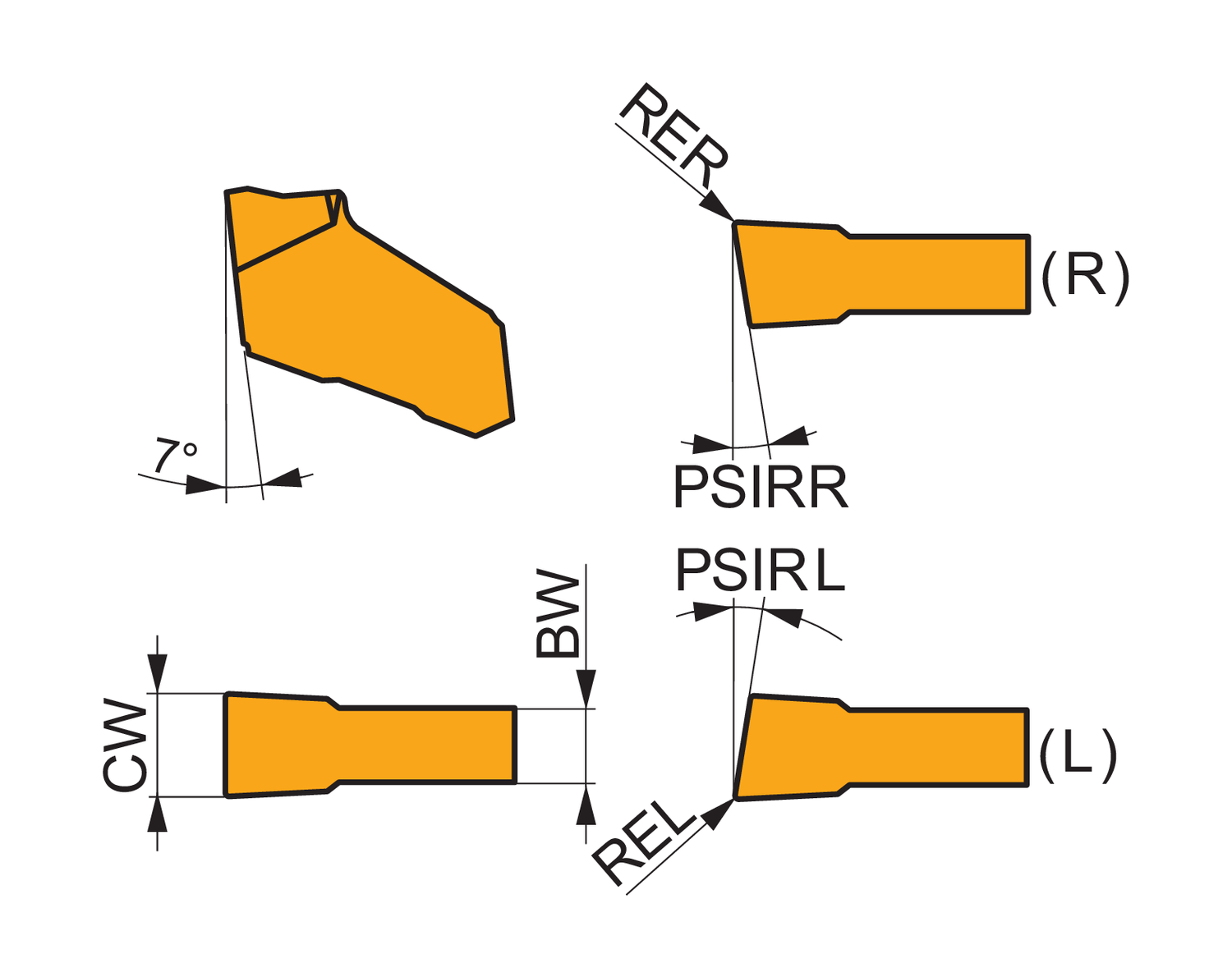

Single ended parting and grooving insert, with a 3.1mm cutting width and 0.2mm corner radii, 8° front angle to reduce pip and burr on the left hand side, an accuracy according to tolerance class-M and chip-breaker M2 with rounded cutting edges with facet, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel in combination with PRAMET XL.F(NRL) 3.00 parting and grooving tools

• Product Name ISO: LFMX 3.1-.20SL8M2:T8330
• Ordering Code ANSI: LFMX 3.1-.20SL8M2:T8330
• EDP Number: 6754337
• Coating: T8330
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
