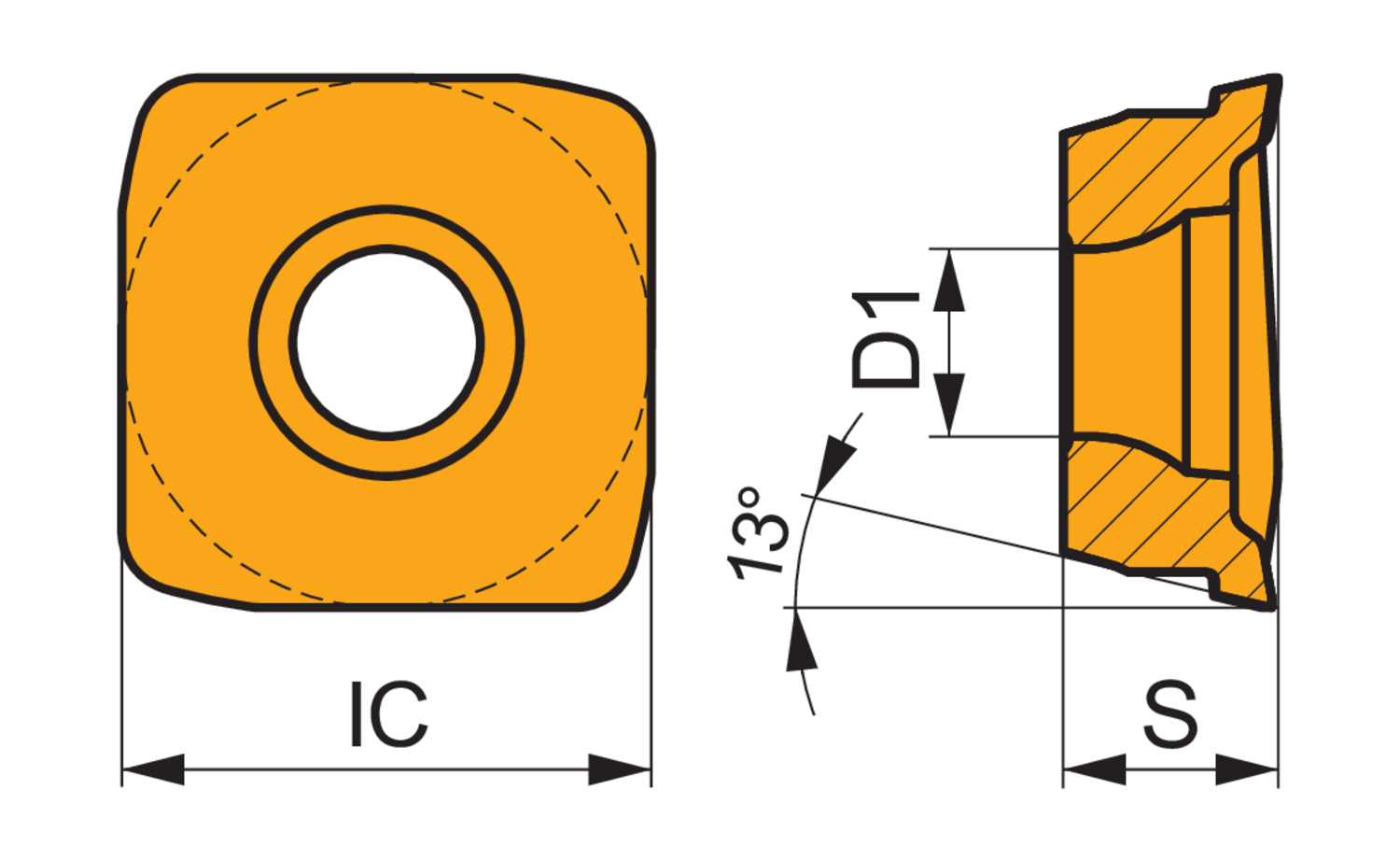

Single-sided HFC milling insert, square for a maximum depth of cut of 0.075inch, with 0.055 inch corner radius, an indexing accuracy according to ISO-tolerance class-H. M9340, MT-CVD, WC-Co grade is suitable for Steel and cast steel, Stainless steel, High-temperature alloys. MM geometry is sharp and suitable for large overhang or thin walled and slim workpiece applications. Designed with positive rake, narrow T-land and rounding of cutting edge for smooth HFC milling

• Product Name ISO: SOHT 120514SR-MM:M9340
• Ordering Code ANSI: SOHT 120514SR-MM:M9340
• EDP Number: 8551748
• Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
