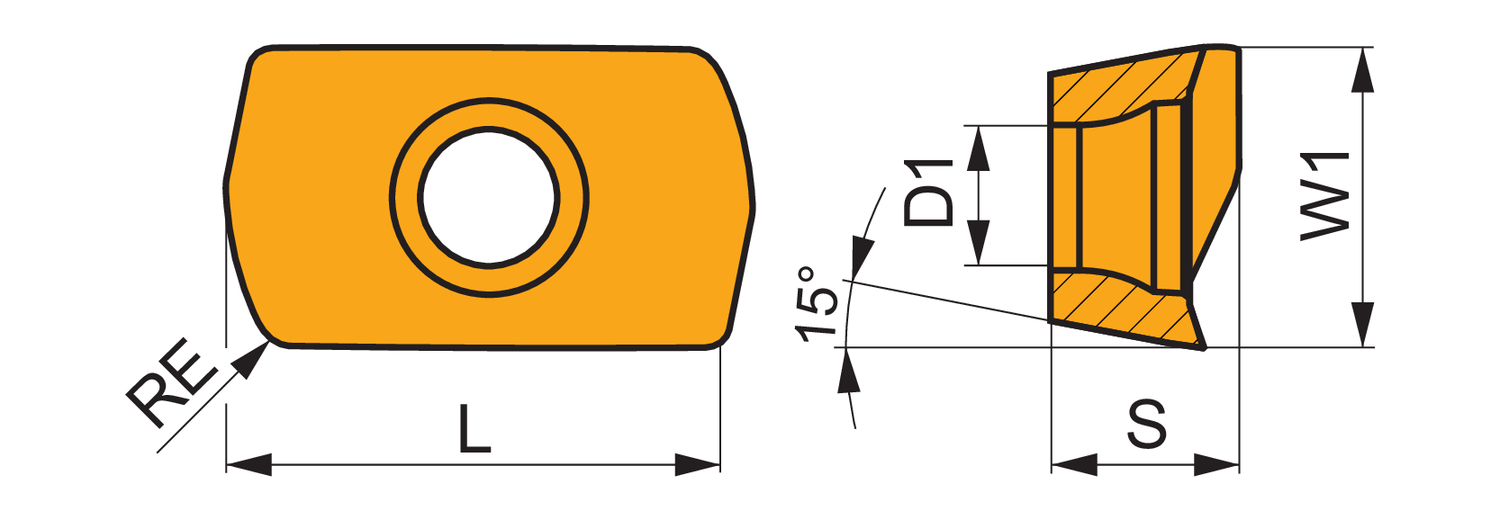

Single-sided milling insert ADEX 0702, 85° parallelogram and high-feed design for a maximum depth of cut of .0118", with .0236" corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills SAD07D
- Product Name ISO: ADEX 070206SR-HF:M8330
- Ordering Code ANSI: ADEX 070206SR-HF:M8330
- EDP Number: 7606875
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 0.3 |
| Corner Radius (Mm.) | 0.6 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Insert Thickness (Mm.) | 2.48 |
| Insert Width (Mm.) | 4.439 |
| Max Depth of Cut (In.) | 0.012 |
| Coating | M8330 |
