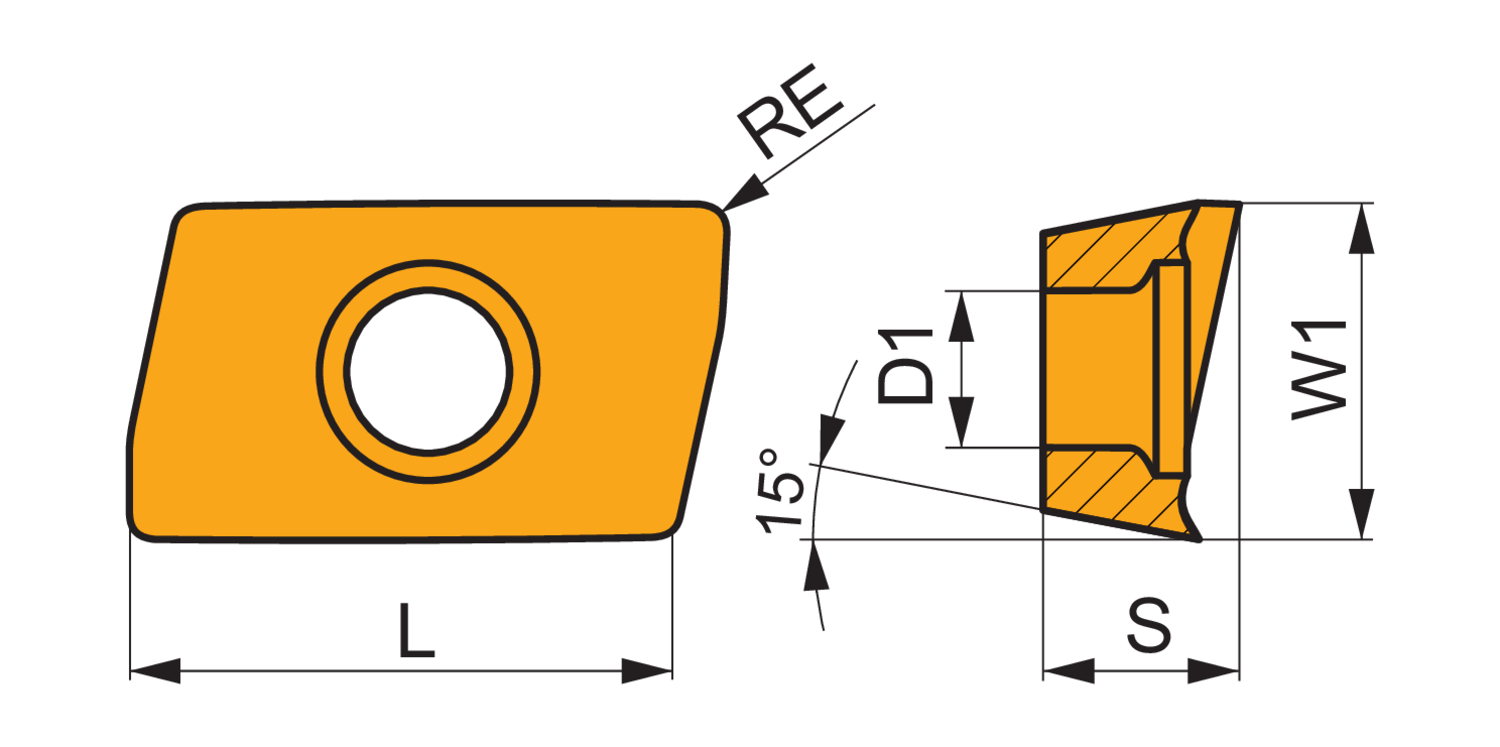

Single-sided milling insert ADEX 0702, 85° parallelogram for a maximum depth of cut of .1969", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SAD07D
- Product Name ISO: ADEX 070208FR-FA:HF7
- Ordering Code ANSI: ADEX 070208FR-FA:HF7
- EDP Number: 7606836
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Insert Thickness (Mm.) | 2.48 |
| Insert Width (Mm.) | 4.497 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | HF7 |
