Single-sided milling insert ADEX 11T3, 85° parallelogram for a maximum depth of cut of .3543", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, M0315 PVD coated fine grained WC-Co carbide within ISO-grade range N05-N25 for machining of non-ferrous metal with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E
- Product Name ISO: ADEX 11T304FR-FA:M0315
- Ordering Code ANSI: ADEX 11T304FR-FA:M0315
- EDP Number: 6800782
- Coating: M0315
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

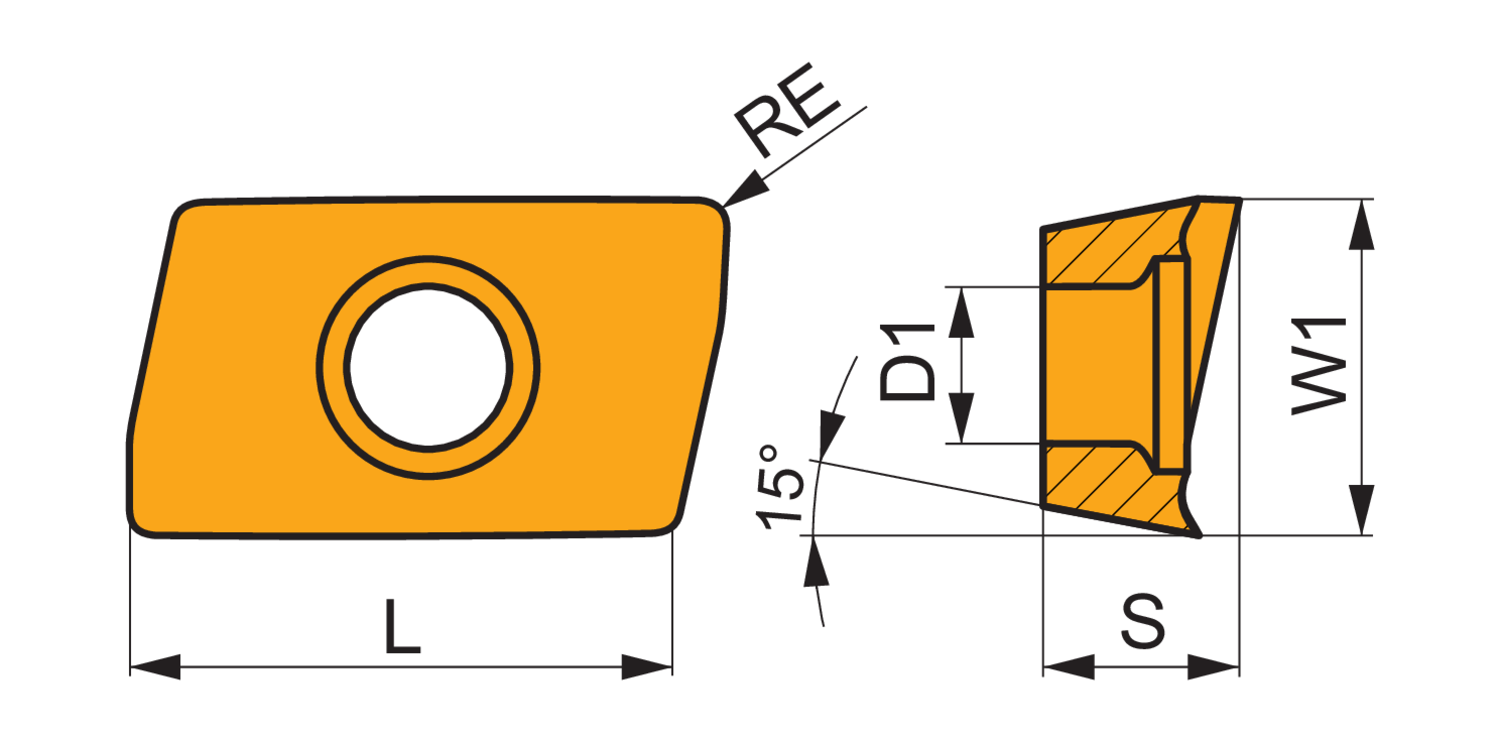

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 3.91 |
| Insert Width (Mm.) | 6.45 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M0315 |
