Milling Insert - Square Shoulder - ADKT 1505PDER-M:M8340

Sg-Side Milling Insert Adkt 1505 with CB, 85° Parallelogram Max Depth .5118", with .0315" CR

SKU	6800798
MPN	6800798
Width	0.28 inch
Length	0.26 inch
Height	0.01 inch

$19.30 excl tax

excl. VAT plus shipping

Order within 10 hrs 20 mins and this product can SHIP TOMORROW ON Wednesday, September 10!

Add to cart

Add to List

Compare

Questions?

Email a friend

Single-sided milling insert ADKT 1505 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel

Product Name ISO: ADKT 1505PDER-M:M8340
Ordering Code ANSI: ADKT 1505PDER-M:M8340
EDP Number: 6800798
Coating: M8340
Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

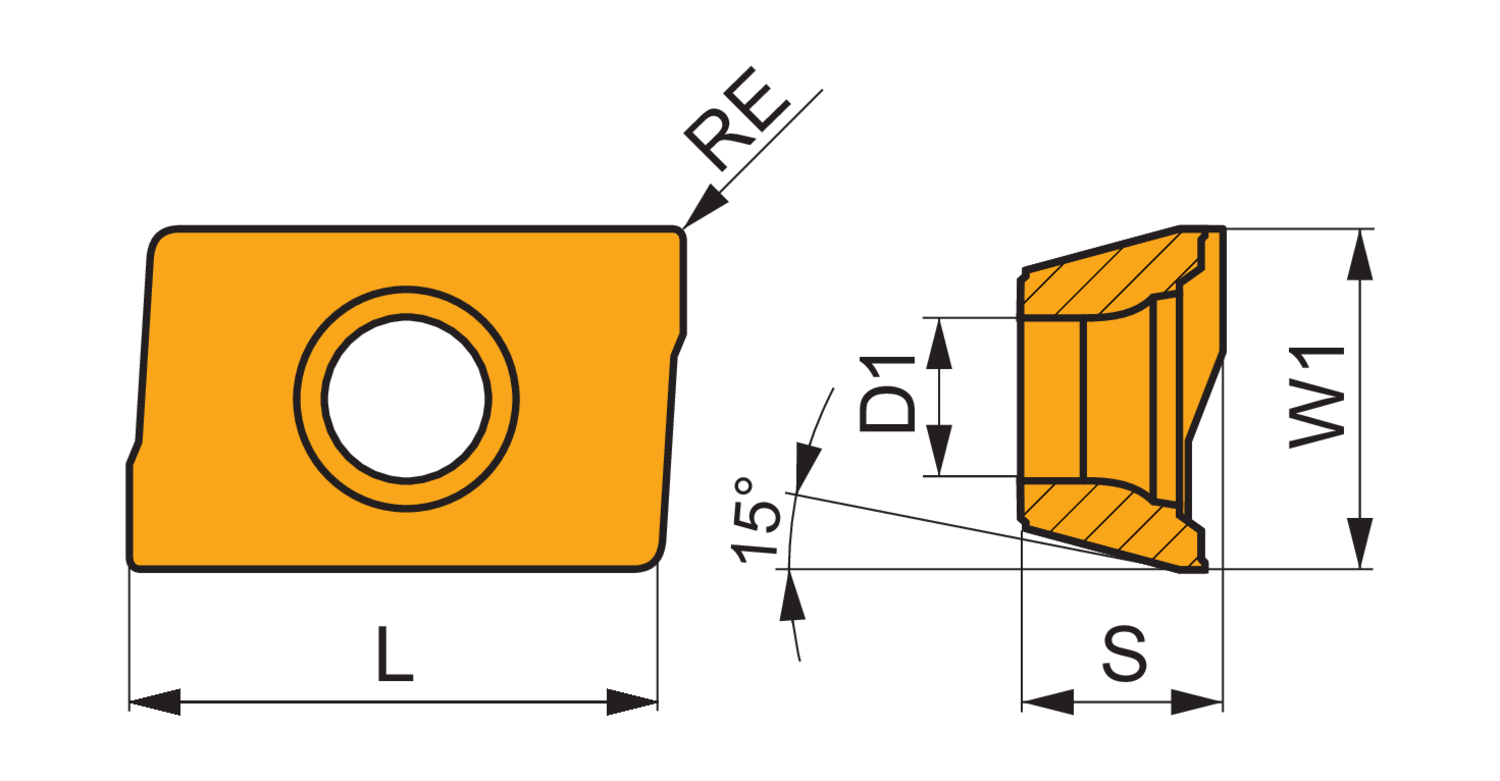

Product Measurement Standard	Metric
Depth of Cut Maximum (Mm.)	13
Corner Radius (Mm.)	0.8
Fixing Hole Diameter (Mm.)	4.4
Insert Thickness (Mm.)	5.6
Insert Width (Mm.)	9.525
Max Depth of Cut (In.)	0.512
Coating	M8340
